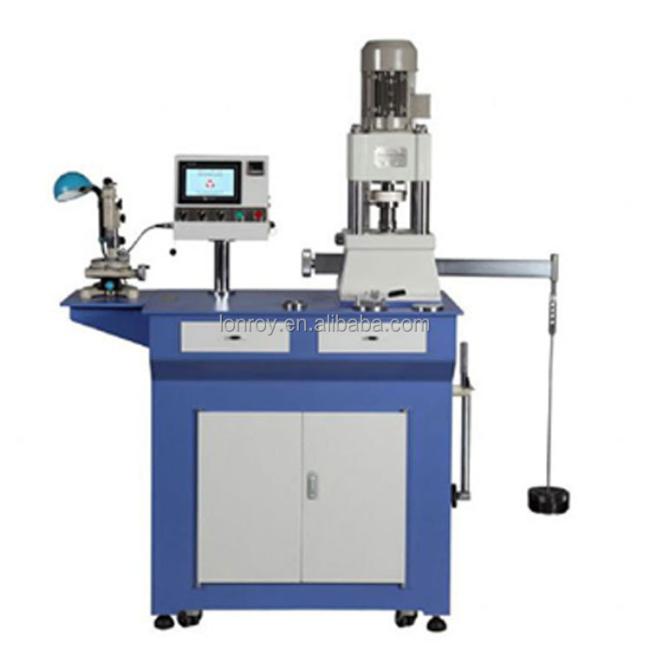

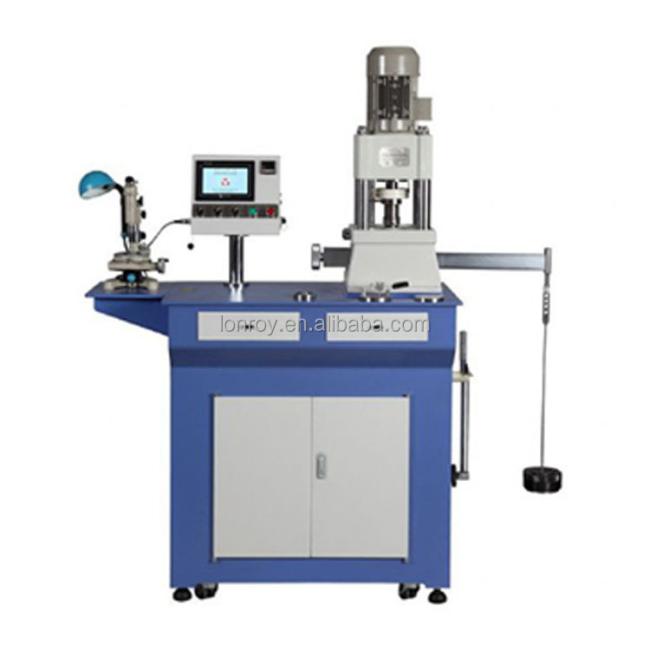

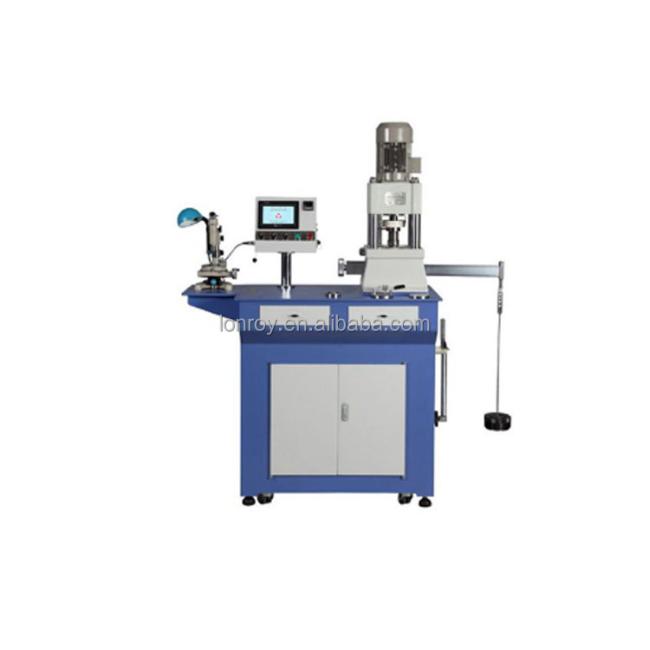

Anti-wear extreme pressure performance testing machine (four ball machine)

Features of the instrument:

1, assess lubricating oil, grease, cutting fluid PB, PD, ZMZ, D value.

2. Control the number of additives in lubricating oil, grease and cutting fluid.

3, in accordance with ASTM, ISO, DIN, GB/T, SH/T requirements.

4, the same machine to meet the wear and sintering test.

5, the application of frequency conversion system to achieve stepless speed regulation.

6. Wear spot evaluation method.

7, mechanical microscope magnifies the grinding spot to 25 times and 100 times.

8, man-machine interface, parameter centralized control.

9. Self-maintenance wizard.

Friction tester Petroleum Product Four Ball Wear Testing Machine ASTM D2266 ASTM D2783  Anti-wear extreme pressure performance

Technical parameters:

Test force: 10000N

The relative error of the test force shows: above 400N is not more than ±1%, below 400N is not more than ±5N

Friction measuring range: 0-200N

The relative error of friction is not more than ±3%

Stepless speed regulation range of spindle: 200-2000r/min

Spindle speed control accuracy: less than ±10r/min

Testing machine heating system temperature range: room temperature -200℃

Temperature control accuracy: ±2℃

Spindle motor: three-phase AC asynchronous motor,

Power: 1.5 KW

Testing machine time display and control range: 1s-9999min

Standard steel ball: φ12.7

No.	Description	Note	Unit	Qty
1	Certification & Manual		Copy	1 Each
2	Main Part		Set	1
3	Ordinary Oil Cup	Include:Oil Cup,Nut, Ball Seat, O Ring for Compact, Bolt.	Piece	1
4	Oil Cup for Heating	Include:Oil Cup,Nut,Ball Seat, O Ring for Compact, Heating Jacket,Bolt(With Thermocouple)	Piece	1
5	Single Blade		Piece	1
6	Assembly of Guide Pillar	Include:Guide Pillar,Thrust Bearing(51106),Guide Sleeve	Piece	1
7	Assembly of Lever	Include:Lever,Balancer	Piece	1
8	Assembly of Scale Pan(1Kg)	Include:Pylons,Rod,Scale Pan	Piece	1
9	Assembly of Scale Pan(0.5Kg)	Include:Pylons,Rod,Scale Pan	Piece	1
10	Weight	5Kg	Piece	9
11	Weight	2Kg	Piece	2
12	Weight	1Kg	Piece	1
13	Weight	0.5Kg	Piece	1
14	Weight	0.2Kg	Piece	2
15	Weight	0.1Kg	Piece	1
16	Weight	0.05Kg	Piece	1
17	Microscope	MZD0745C	Set	1
18	Seat for Microscope		Piece	1
19	Optical Standards of Piece for Microscope		Piece	1
20	Light Source for Microscope		Piece	1
21	Printer	IP100	Set	1
22	Lifter		Set	1
23	Foot Switch		Piece	1
24	Eccentric Rod		Piece	1
25	Nut for Compact		Piece	1
26	Pin Roll		Piece	2
27	Chuck		Piece	2
28	O Ring for Compact		Piece	2
29	Ball Seat		Piece	2
30	Insert	1#:H0.0mm 2#:H0.0mm	Piece	2
31	Gasket of Heat Insulation	1mm	Piece	2
32	Gasket of Heat Insulation	0.5mm	Piece	1
33	Bolt		Piece	1
34	Bolt for Oil Cup	General Oil Cup	Piece	1
35	Steel Ball	Φ12.7	Piece	200
36	Cable for Heating		Piece	1
37	Heating Jacket		Piece	1
38	Thermocouple		Piece	2
39	Fuse	Φ10×38 1A	Piece	2
40	Middle Relay	RJ1S-CLD-D24	Piece	1
41	O Ring	Φ9×2	Piece	8
42	Wrench	0-300N.M	Piece	1
43	Wrench	SE-01-100	Piece	1
44	Jacket for Oil Cup		Piece	1
45	Pylons of  Torque Wrench		Piece	1
46	Steel Ball Top Tight Stem		Piece	1
47	T Hex Wrench	7mm	Piece	1
48	Head Wrench Hook	45-52	Piece	1
49	Stay Wrench	6/10	Piece	1
50	Socket Wrench		Piece	1
51	Tweezer for Steel Ball		Piece	1
52	Chuck Steel Ball Plunger		Piece	1
53	Key for Cabinet		Piece	2
54	Manual		Copy	1
55	Software on Disk		Piece	1
56	Calculate Seat for Weight		Piece	1
57	Leds	White Light	Piece	2
58	Cable Power for Out	Include Joint	Piece	1
59	Block Ring Plier		Piece	1
60	Clean Dish		Piece	2
61	Amphibious Screwdriver	ST-201N	Piece	1
62	Screwdriver	2×50mm	Piece	1
63	Hex Wrench	4mm	Piece	1
64	Hex Wrench	1.5mm	Piece	1
65	Hex Wrench	1.2mm	Piece	1
66	Round Head Tweezer	18cm	Piece	1
67	Ink for Printer	e-820	Piece	1
68	USB Storage	4G	Piece	1
69	Sample Oil		Bottle	1
70	USB Lamp		Piece	1
