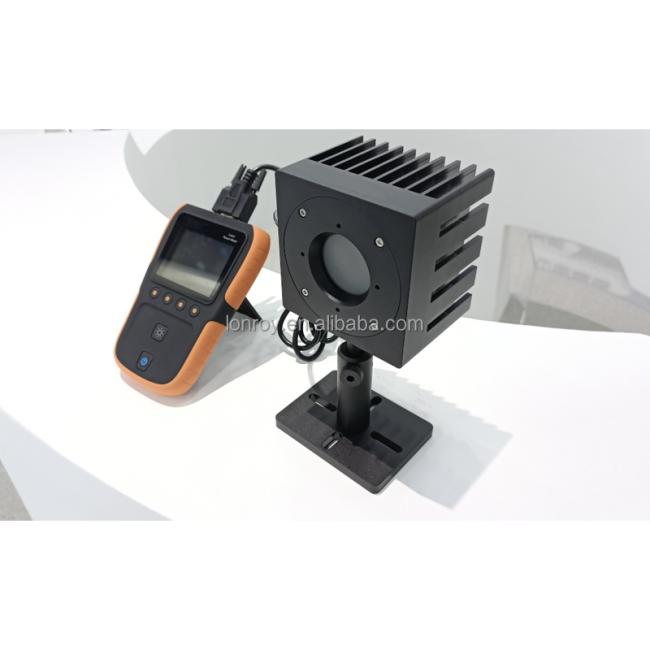

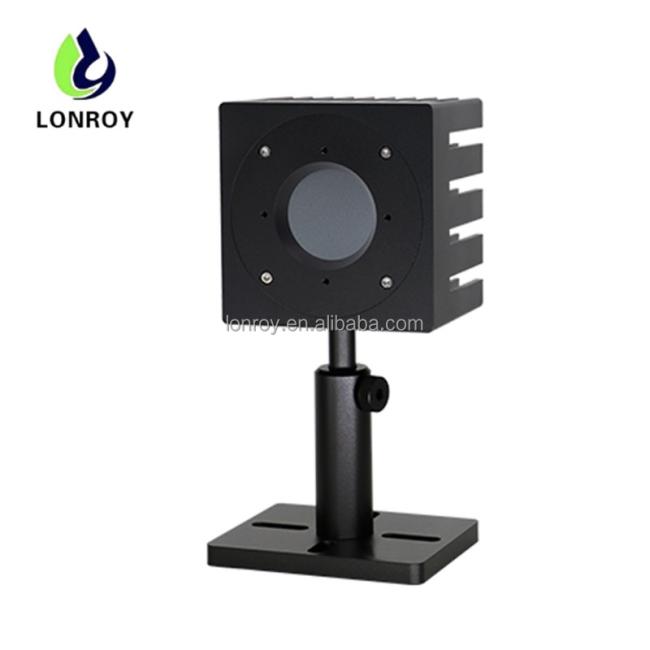

LONROY Air-Cooled Laser Power Meter Probe 100mW - 100W Natural Cooling Laser Power Sensor Head Lab Laser Power Measuring Probe
LONROY Air-Cooled Laser Power Meter Probe 100mW - 100W Natural Cooling Laser Power Sensor Head Lab Laser Power Measuring Probe
Product introduction
The LR-100F type laser power meter probe is suitable for measuring continuous and pulsed lasers with high power density. In the natural air-cooling mode, the maximum continuous measurement power can reach 100W, and the maximum intermittent measurement power can reach 200W. It has a large detection aperture of 40mm.
Feature
1. Natural cooling
2. 30/40mm detection aperture
3. Single pulse energy testing function
4. USB interface output is optional for the PC version
5. The maximum intermittent measurement power can reach up to 200W within 1 minute.
LONROY Air-Cooled Laser Power Meter Probe 100mW - 100W Natural Cooling Laser Power Sensor Head Lab Laser Power Measuring Probe
Technical Specification
|
Model |
LR-100F |
|
Spectral range(μm) |
0.19 - 25 |
|
Power range |
100mW - 100W (200W) |
|
Intermittent measurement power |
100W (Cont.), 150W (3min), 200W (1min) |
|
Measurement capability |
|
|
Resolution(mW) |
5 |
|
Measurement uncertainty(±%) |
< 1 |
|
Nonlinearity with power(±%) |
< 1 |
|
Power accuracy(±%) |
< 3 |
|
Response time(s) |
< 2 |
|
Detector type |
CB |
|
Detector aperture(mm) |
40 |
|
Maximum average power density |
20kW/cm2, 10W, CW |
|
Maximum energy density |
0.3J/cm2, 1064nm, 1ns |
|
Physical characteristics |
|
|

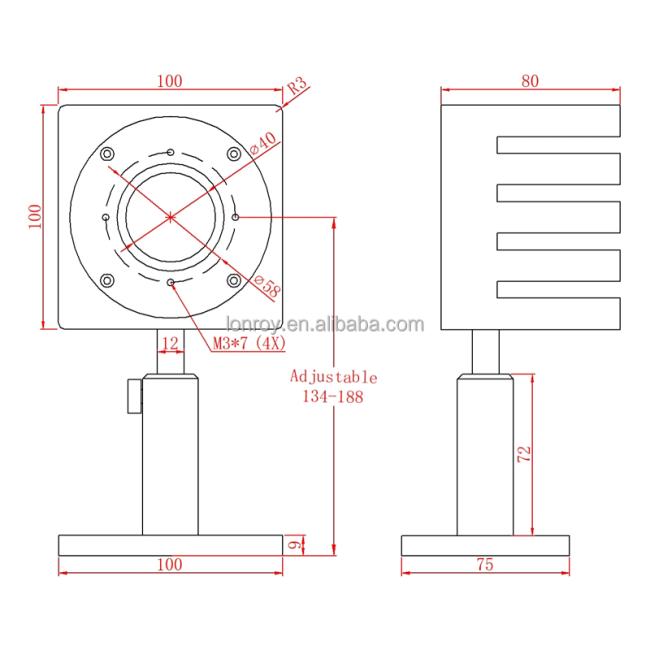

Dimensions(mm) |
100 × 100 × 80 |
|
Cooling method |
Air Cooled |
|
Cable type |
DB-9M |
|
Cable length(m) |
1.5 |
