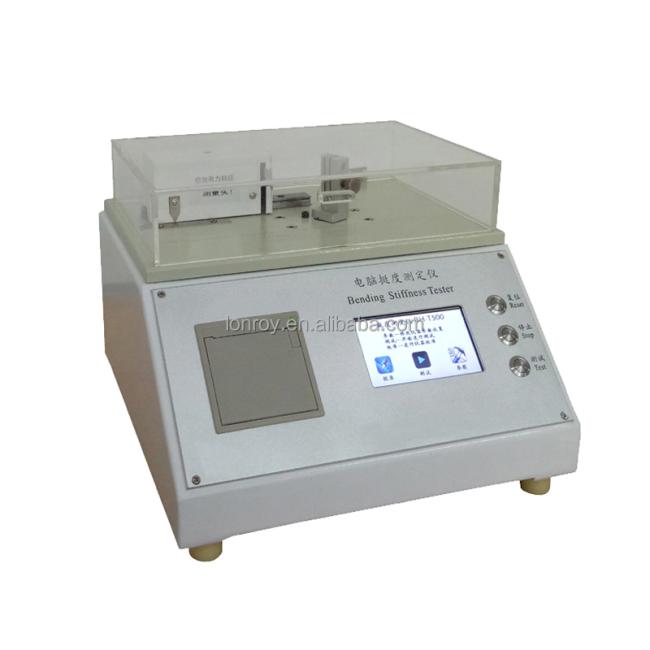

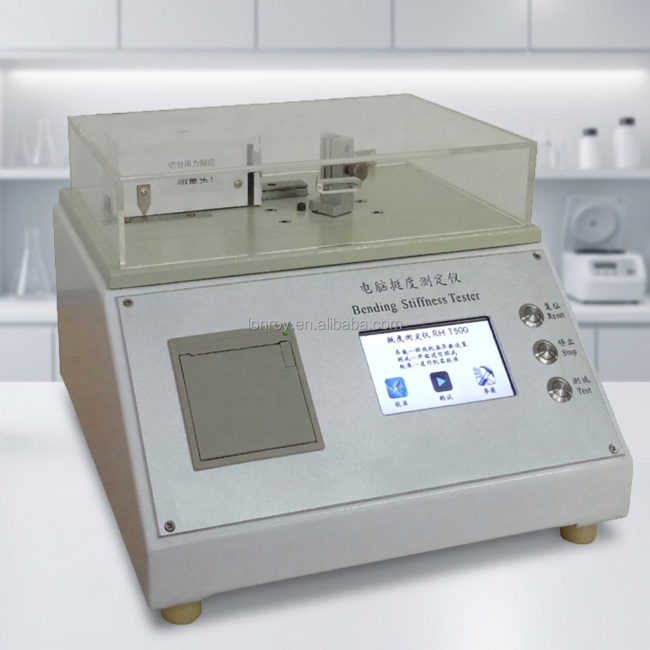

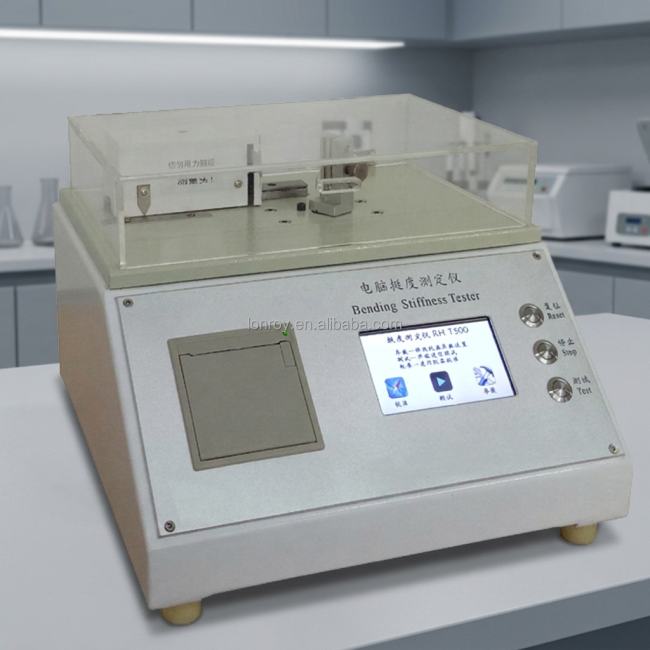

ISO 2493 ISO 5628 Touch Screen Crease Stiffness Testing Machine Laboratory Paper Paperboard Digital Bending Stiffness Tester
ISO 2493 ISO 5628 Touch Screen Crease Stiffness Testing Machine Laboratory Paper Paperboard Digital Bending Stiffness Tester
Use
Digital display (touch screen) crease stiffness tester, is suitable for testing all kinds of paper and paperboard and all kinds of new materials bending crease stiffness test instrument.The stiffness instrument is suitable for testing flexural crease stiffness of paper, paperboard and other sheet materials with thickness less than 3mm, and also for testing softness of wire, leather and film.
Test Standard
GB/T 23144 "general principles for the determination of static bending stiffness of paper and paperboard";
GB/T 22364 "determination of bending stiffness of paper and paperboard";
ISO 5628 "paper and board - determination of static bending stiffness - general principles";
ISO 2493 paper and board - determination of flexural stiffness
CISO 2493 ISO 5628 Touch Screen Crease Stiffness Testing Machine Laboratory Paper Paperboard Digital Bending Stiffness Tester
Technical Specification
|
Operation Mode |
Easy operation via the integrated touch screen |
|
Measurement Range |
0-10000mN |
|
Load Cell Accuracy |
±0.1% |
|
Standard Sample Size |
38*70mm |
|
Measurable Thickness |
0.01-5mm |
|
Resolution |
0.01mN |
|
Adjustable Bend Angle |
1-92° |
|
Multi-angle Measurement |
Simultaneous test of 3 different angles, 1°-90° settable |
|
Angle Speed |
0.5-5°/sec, angles and duration independently adjustable |
|
Angle Accuracy |
±0.1° |
|
Bend Length |
Various force arms optional for different materials |
|
Force Arm Levels |
8 grades, span 1-60mm (5/10/15/20/25/30/40/50mm) |
|
Length Span Accuracy |
±0.1mm |
|
Adjustable Bend Time |
5-35s |
|
Self-calibration |
Support self-calibration with standard calibration tools |
|
Data Display |
7-inch touch screen with test curve |
|
Print Function |
Built-in thermal paper printer |
|
Test Fixture |
Manual fixture with visual menu operation |
|
Clamping Mode |
Unlimited non-destructive continuous clamping |
|
Signal Function |
Equipped with standard calibration matching function |
