Dual Seal Flange Static Seals Extrusion Resistant Torsion Resistant Heavy Load Cover Seals
Price:
Negotiable
MOQ:
50
Delivery Time:
3-5 working days
Brand:
DYNE
Product Description

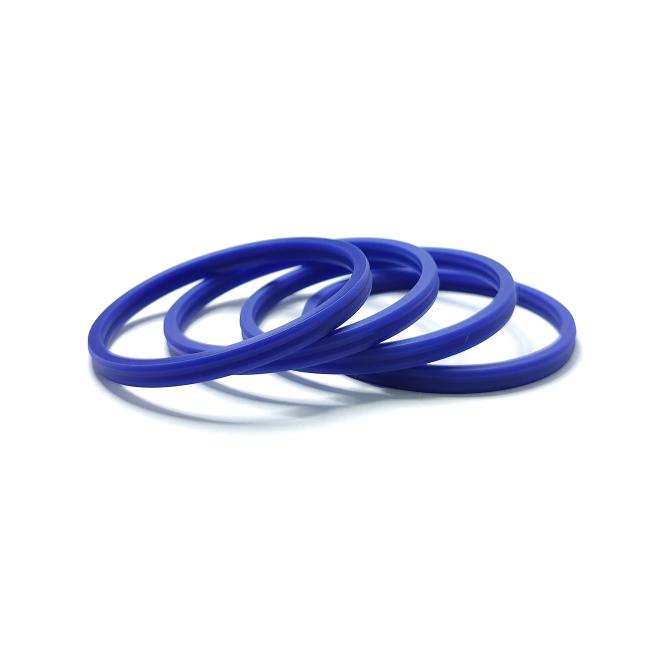

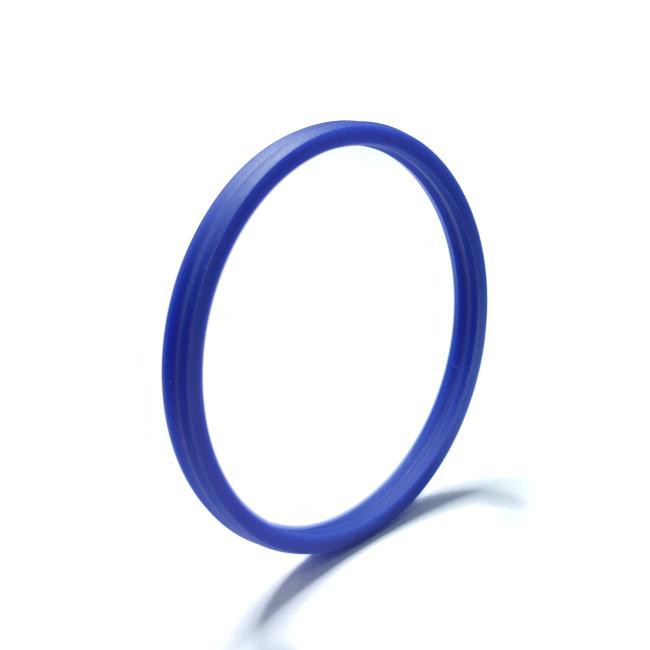

Dual Seal Flange Static Seals , Heavy Load Cover Seals

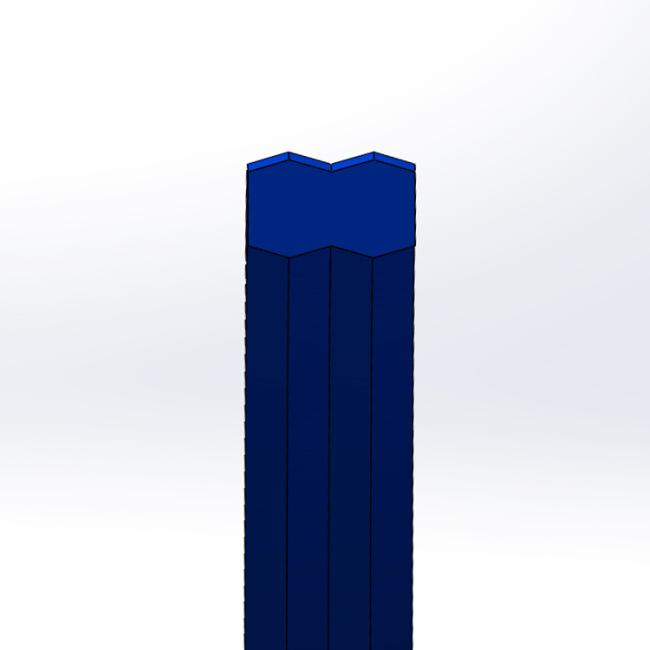

The SSA type is a static seal made of high-modulus polyurethane with a low compression set. The symmetrical ß-profile keeps it from twisting while it's being put together and stops it from extruding under pressure. It can withstand high pressure and wear. Could be an alternative solution to replace o-rings and anti-extrusion rings in high pressure.
   |
Technical data
| Pressure | Speed | Temperature | Media |
| 0~50MPa | - |
from – 35° C to + 105° C, with peaks up to 110° C (Low temp. TPU or Hydrolysis HPU also available) |
hydraulic fluids, grease, water |
Advantages
- Extrusion and torsion resistance
- Good stability under impact pressure
- Low risk of contamination
- Cost-effective
- Easy assembly
Applications
- High Pressure Valves
- Standard Cylinders
- Mobile Machinery
- Presses
- Injection Molding Machines

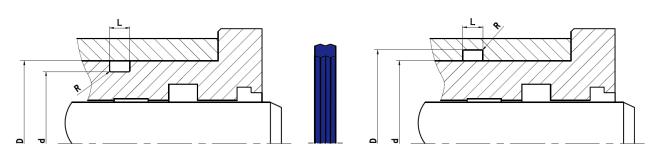

Specification
| D | d | L +0,2 |
| 8.19 | 6.02 | 3.6 |
| 8.19 | 6.02 | 3.8 |
| 18 | 15.6 | 3.6 |
| 20 | 16.6 | 3.8 |
| 20 | 17.6 | 3.6 |
| 24 | 20 | 4.4 |
| 24 | 20 | 4.8 |
| 28 | 23.8 | 5 |
| 28.6 | 25.6 | 3.6 |
| 31 | 26.4 | 5 |
| 32 | 27.4 | 5.4 |
| 35 | 30.4 | 4.7 |
| 35 | 30.4 | 5 |
| 35.5 | 30.9 | 5 |
| 37 | 30.8 | 4.5 |
| 40 | 35.2 | 5.1 |
| 40 | 35.4 | 5.4 |
| 42 | 36 | 5 |
| 42 | 38 | 3.6 |
| 43.5 | 39 | 4 |
| 45 | 40 | 5.4 |
| 45 | 41 | 5 |
| 46 | 41.5 | 5.3 |
| 48 | 53 | 5 |
| 50 | 44.6 | 6.2 |
| 50 | 45.4 | 5.4 |
| 51 | 46.5 | 3.5 |
| 53 | 48.5 | 5.3 |
| 55 | 49.9 | 5.3 |
| 55 | 51 | 3.8 |
| 60 | 54.4 | 5.8 |
| 63 | 57.4 | 4.8 |
| 63 | 57.6 | 6.2 |
| 63 | 58.4 | 5.4 |
| 64 | 58.4 | 4.5 |
| 70 | 64.6 | 6.3 |
| 70 | 65 | 5 |
| 75 | 69.4 | 5.3 |
| 76 | 70.2 | 4.5 |
| 80 | 73.6 | 6.4 |
| 80.5 | 75.7 | 6.2 |
| 81 | 75.1 | 4.5 |
| 90 | 83 | 6.5 |
| 90 | 83 | 7 |
| 90.5 | 85.1 | 8.1 |
| 90.5 | 85.1 | 8.5 |
| 100 | 94.3 | 5.3 |
| 100.5 | 95.1 | 8.5 |
| 101 | 94.7 | 5.2 |
| 110.5 | 105.1 | 8.5 |
| 120 | 111.6 | 8.4 |
| 125 | 115 | 7.7 |
| 125 | 116.4 | 9.2 |
| 140 | 131.4 | 10 |
| 225 | 213 | 10.5 |
