Rod Internal Seals Low Friction TDMI Tandem Seal Hunger For Hydraulic Cylinder
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
Negotiable
Product Description
The TDMI tandem seal is a premium internal seal element that engineered specifically for piston rods and plungers in multi-fluid applications. The advanced dual-component design ensures its versatility and durability, the TDMI seal is fully compatible with mineral oils, and can be customized for use with water-based fluids, fire-resistant fluids, and compressed air systems.
Technical data
| Pressure | Speed | Temperature | Media |
| 0~45MPa | 1m/s |
–30° C / +110° C (according to material for the elastic ring) |
hydraulic mineral oils, water based fluids |
Advantages
- Multi-fluid resistance
- Low friction
- Good sliding properties
- Good dry running properties
Applications
- Hydraulic cylinders
- Construction Machinery
Specification

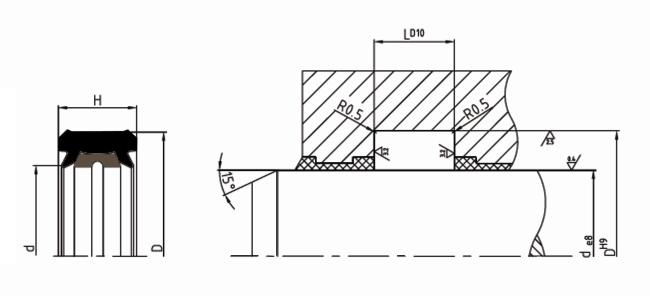

| d e8 | D | L | H |
| 20-56 | d+10 | 16 | 15 |
| 57-140 | d+13 | 16 | 15 |
| >140 | d+15 | 16 | 15 |
| P/N | d e8 | D H9 | H | L D10 | e |
| TDMI0200 | 20 | 30 | 15 | 16 | 6 |
| TDMI0220 | 22 | 32 | 15 | 16 | 6 |
| TDMI0250 | 25 | 35 | 15 | 16 | 6 |
| TDMI0280 | 28 | 38 | 15 | 16 | 6 |
| TDMI0300 | 30 | 40 | 15 | 16 | 6 |
| TDMI0320 | 32 | 42 | 15 | 16 | 6 |
| TDMI0350 | 35 | 45 | 15 | 16 | 6 |
| TDMI0360 | 36 | 46 | 15 | 16 | 6 |
| TDMI0400 | 40 | 50 | 15 | 16 | 6 |
| TDMI0420 | 42 | 52 | 15 | 16 | 6 |
| TDMI0450 | 45 | 55 | 15 | 16 | 6 |
| TDMI0500 | 50 | 60 | 15 | 16 | 6 |
| TDMI0550 | 55 | 65 | 15 | 16 | 6 |
| TDMI0560 | 56 | 66 | 15 | 16 | 6 |
| TDMI0600 | 60 | 73 | 15 | 16 | 7 |
| TDMI0630 | 63 | 76 | 15 | 16 | 7 |
| TDMI0650 | 65 | 78 | 15 | 16 | 7 |
| TDMI0700 | 70 | 83 | 15 | 16 | 7 |
| TDMI0720 | 72 | 85 | 15 | 16 | 7 |
| TDMI0750 | 75 | 88 | 15 | 16 | 7 |
| TDMI0800 | 80 | 93 | 15 | 16 | 7 |
| TDMI0850 | 85 | 98 | 15 | 16 | 7 |
| TDMI0900 | 90 | 103 | 15 | 16 | 7 |
| TDMI0950 | 95 | 108 | 15 | 16 | 7 |
| TDMI1000 | 100 | 113 | 15 | 16 | 7 |
| TDMI1050 | 105 | 118 | 15 | 16 | 10 |
| TDMI1100 | 110 | 120 | 15 | 16 | 10 |
| TDMI1100 | 110 | 123 | 15 | 16 | 10 |
| TDMI1150 | 115 | 128 | 15 | 16 | 10 |
| TDMI1200 | 120 | 133 | 15 | 16 | 10 |
| TDMI1250 | 125 | 138 | 15 | 16 | 10 |
| TDMI1300 | 130 | 143 | 15 | 16 | 10 |
| TDMI1400 | 140 | 153 | 15 | 16 | 10 |
| TDMI1500 | 150 | 162 | 15 | 16 | 10 |
| TDMI1500 | 150 | 165 | 15 | 16 | 10 |
| TDMI1600 | 160 | 175 | 15 | 16 | 10 |
| TDMI1650 | 165 | 180 | 15 | 16 | 10 |
| TDMI1700 | 170 | 185 | 15 | 16 | 10 |
| TDMI1800 | 180 | 195 | 15 | 16 | 10 |
| TDMI1850 | 185 | 200 | 15 | 16 | 10 |
| TDMI1900 | 190 | 205 | 15 | 16 | 10 |
| TDMI2000 | 200 | 215 | 15 | 16 | 10 |
| TDMI2200 | 220 | 235 | 15 | 16 | 10 |
| TDMI2250 | 225 | 240 | 15 | 16 | 10 |
| TDMI2300 | 230 | 245 | 15 | 16 | 10 |
| TDMI2400 | 240 | 455 | 15 | 16 | 10 |
| TDMI2500 | 250 | 265 | 15 | 16 | 10 |
| TDMI2600 | 260 | 275 | 15 | 16 | 10 |
| TDMI2800 | 280 | 295 | 15 | 16 | 10 |
| TDMI2900 | 290 | 305 | 15 | 16 | 10 |
| TDMI3000 | 300 | 312 | 15 | 16 | 15 |
| TDMI3000 | 300 | 315 | 15 | 16 | 15 |
| TDMI3200 | 320 | 335 | 15 | 16 | 15 |
| TDMI3500 | 350 | 365 | 15 | 16 | 15 |
| TDMI3600 | 360 | 375 | 15 | 16 | 15 |
| TDMI3800 | 380 | 395 | 15 | 16 | 15 |
| TDMI4000 | 400 | 415 | 15 | 16 | 15 |
| TDMI4500 | 450 | 465 | 15 | 16 | 15 |
| TDMI4800 | 480 | 495 | 15 | 16 | 15 |
| TDMI5000 | 500 | 515 | 15 | 16 | 15 |
| TDMI5500 | 550 | 565 | 15 | 16 | 15 |
| TDMI5600 | 560 | 575 | 15 | 16 | 15 |
| TDMI6000 | 600 | 615 | 15 | 16 | 15 |
| TDMI6500 | 650 | 665 | 15 | 16 | 15 |
Please contact us directly for more dimensions or other requests.
