4.2-meter Pure Electric Transportation Refrigeration Unit for Trucks with -18°C to -20°C Cooling Performance
Price:
USD 3000~15000/unit
MOQ:
10
Delivery Time:
30 days
Brand:
Newbase
Product Description
ODM Transportation Refrigeration Units System For 4.2 Meter Vehicles Truck
Reference NO.: 142715
OE NO.: NA
OE NO.: NA
Refrigeration and Freezing Unit for 4.2-meter New Energy Vehicles
Step into the future of refrigerated transportation with NEWBASE's NBESR-1000A, the ultimate in pure electric refrigeration technology tailored for advanced light trucks (7.5 to 8.5 meters) powered by electricity, hydrogen, methanol, or extended-range systems. This state-of-the-art, all-in-one refrigeration unit is meticulously crafted to fit seamlessly with refrigerated bodies of 42 to 46 cubic meters, delivering unparalleled cooling performance down to -18°C to -20°C.
Experience the elegance of design where the compressor is cleverly integrated within the condenser, creating a unified condenser-evaporator assembly that not only looks impressive but also operates with exceptional efficiency. With its swift chilling ability and energy-saving variable frequency drive, the NBESR-1000A minimizes operational costs while maximizing reliability. Our integrated 4G module enables proactive remote monitoring and control, transforming after-sales service and temperature management into seamless processes.
For added convenience, the unit comes with an AC380V backup power option, allowing you to continue refrigerating your cargo using an external power source, preserving your truck's battery life. And with an optional heating function capable of maintaining temperatures between 6°C and 15°C, this versatile unit adapts to a wide range of temperature-sensitive transportation requirements. Embrace the NEWBASE NBESR-1000A - where innovation, efficiency, and reliability converge to redefine cold chain logistics.
Key Features
Full DC frequency conversion control, fast cooling, low-frequency insulation with less power consumption
Stepless frequency conversion control of cooling capacity, high accuracy of temperature control and good stability
Built-in multi-channel pressure and temperature sensors, real-time detection and automatic adjustment of unit operation status
Products have been fully validated through tests such as vibration, rain exposure, insulation, and EMC level III
CAN bus control technology based on CAN2.0B and SAE J1939
Production process of electronic components meets the IPC3 standard
Vehicle networking cloud platform remotely manages the unit, providing real-time temperature control data and working status information
Backend big data analysis, fault prediction and early warning, remote fault diagnosis

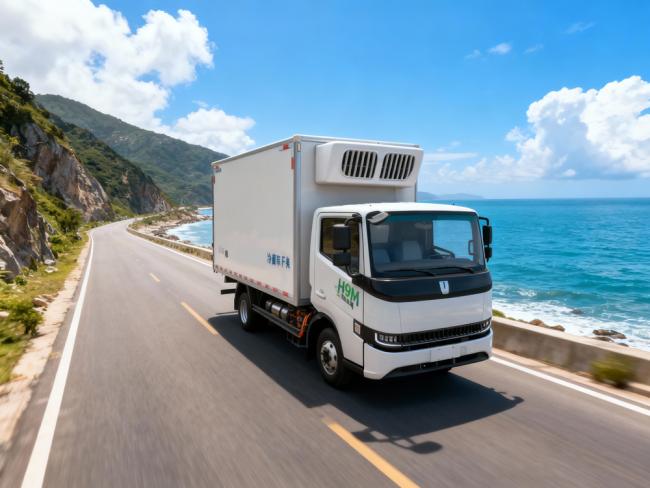

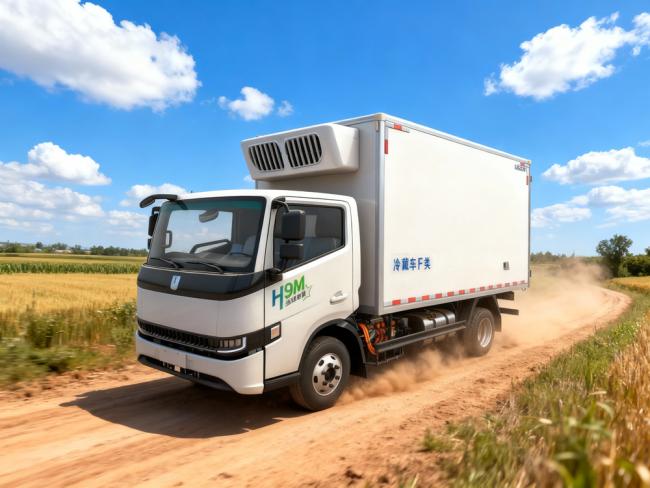

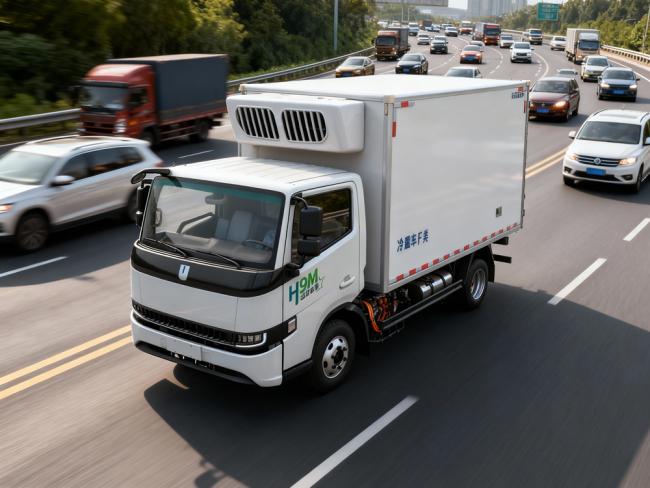

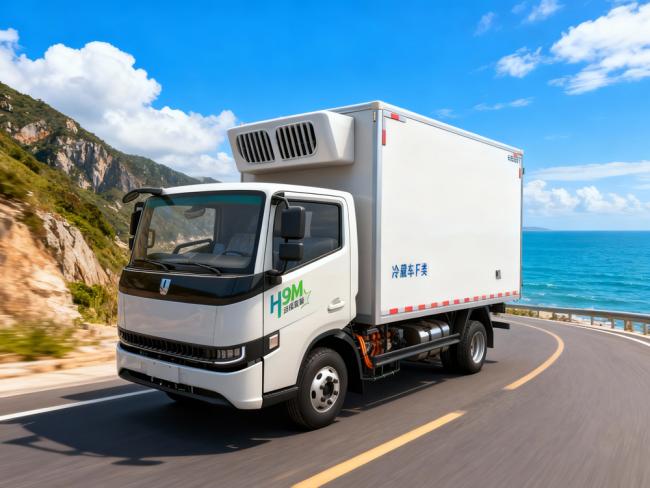

Product Images
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NBSRE520 |
| Applicable storage volume | 15-25m³ |
| Temperature range | -25℃~+30℃ |
| Cooling Capacity | 0℃/30℃: 5200W -20℃/30℃: 2800W |
| High voltage | DC250V-DC450V (low voltage platform) DC380V-DC750V (high voltage platform) |
| Power Consumption | 0℃/+30℃: 2850W -20℃/+30℃: 2430W |
| Driven mode | Full Electric |
| Control voltage | DC12V (9~16V) DC24V (16~32V) |
| Low voltage | DC-DC |
| Standby power | AC220V/380V (Optional) |
| Compressor | DTH356 (Variable Frequency) |
| Refrigerant | R404A |
| Refrigerant filling amount | 2.3kg |
| Defrosting mode | Hot gas |
| Heating mode | Hot gas |
| Control mode | CAN communication |
| Condenser unit size (L*W*H, mm) | 1633*485*485 |
| Condenser unit weight | 82kg |
| Condenser fan quantity | 2 pcs |
| Condenser fan air volume | 4000 m³/h |
| Evaporator unit size (L*W*H, mm) | 1092*590*241 |
| Evaporator unit weight | 24kg |
| Evaporator fan quantity | 2 pcs |
| Evaporator fan air volume | 2000 m³/h |

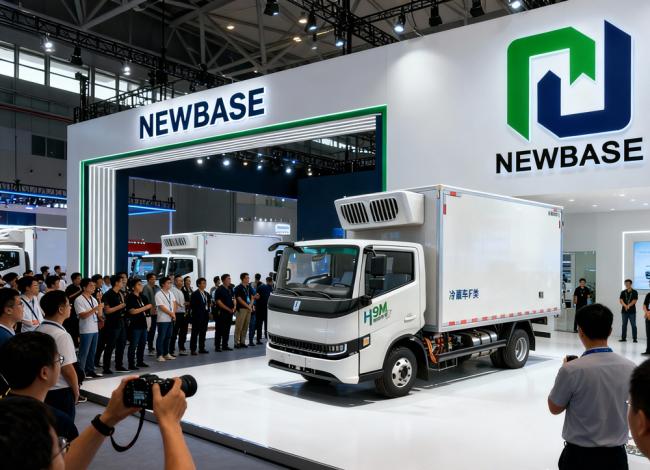

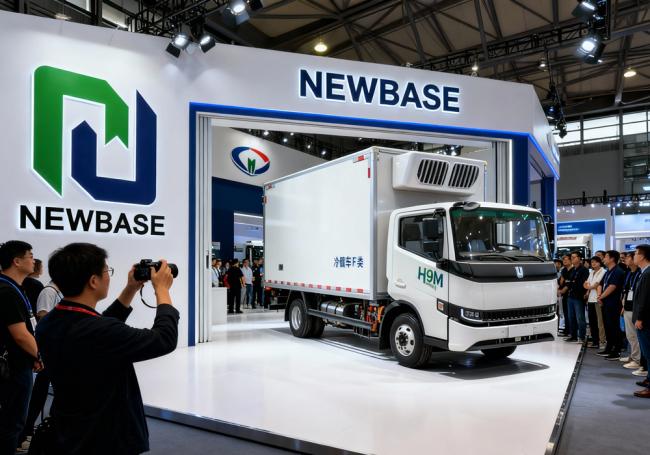

Exhibition Gallery
