1000W Motor Electric Cargo Tricycle with 60V/58AH Battery and Polyurethane Insulation for Refrigerated Transport
Price:
USD 2000~4000/unit
MOQ:
10
Delivery Time:
30 days
Brand:
Newbase
Product Description
1000W Solar Cargo Electric Tricycle Refrigeration 206 Hatchback 40KM-60KM

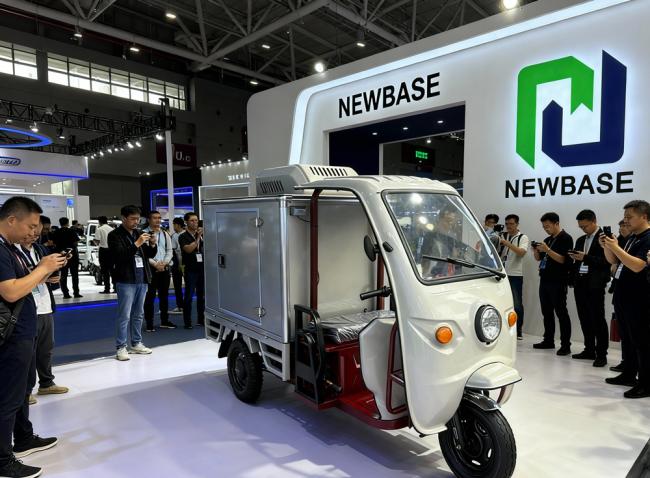

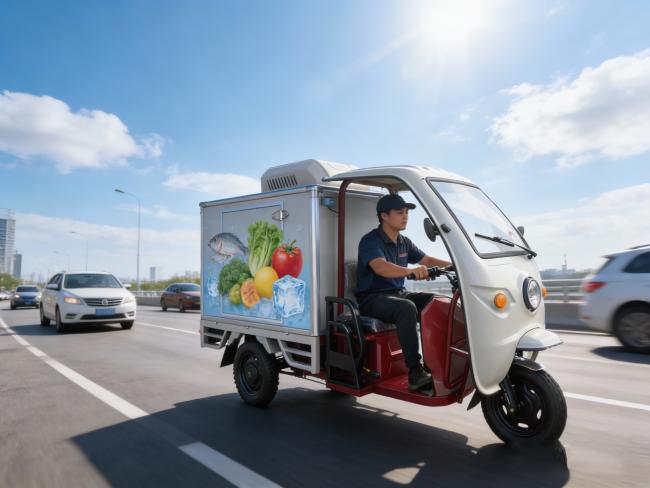

NEWBASE Electric Refrigerated Tricycle
Technical Specifications of the Refrigerated Compartment
- External Dimensions: 1500 mm × 1000 mm × 1000 mm
- Volume: 0.9 m³ - providing sufficient space for various refrigerated goods
- Compartment Material: Constructed with polyphenylene (XPS/EPS)/polyurethane (PUR) foam insulation panels, ensuring excellent insulation performance, waterproof, shock-resistant, and corrosion-resistant properties
- Power Supply Compatibility: Supports both 60V vehicle power (on-the-go use) and 220V mains power (fixed-site use)
- Refrigerant Type: Environmentally friendly R404A refrigerant, meeting international environmental standards
- Temperature Control Range: Adjustable from 0°C to 8°C, with rapid cooling to 0°C within 30 minutes from room temperature
- Operating Power: Maximum operating power of 800W with intelligent variable frequency regulation technology for energy efficiency
- Battery Life: High-density lithium battery provides 72 hours of single full-charge endurance with uninterrupted power supply during transit
- Intelligent Monitoring: Embedded 4G module with upgraded IoT functionality for real-time tracking and monitoring
Control Panel Features
- Visualized control panel for both refrigerated compartment models
- Interactive functions include switches, temperature adjustment, defrosting, and real-time display of internal temperature and disinfection status
- Control panel can be customized according to specific requirements
The NEWBASE Electric Refrigerated Tricycle combines advanced technology, environmental sustainability, and user-friendly features to provide an efficient and reliable solution for cold chain logistics. Its versatile power supply options, rapid cooling capabilities, and intelligent monitoring system make it an ideal choice for businesses seeking high-performance refrigerated transportation.
Product Parameters
Vehicle Specifications
| Dimensions | 2955 × 1000 × 1750 mm |
| Power System | 1000W Rear Motor |
| Controller | 60V18A |
| Tire | 3.50-12 |
| Battery | 60V/58AH - Unloaded travel distance of 40KM to 60KM |
Refrigeration System
The refrigeration unit has a power rating of 650W and a rated current of 10.1-11.4A. The system employs a 60V direct current air-cooled compressor for refrigeration and is equipped with a 60V/58AH cooling battery, enabling continuous operation for 6-8 hours. It can achieve a minimum temperature adjustment of -18°C to meet various refrigeration and freezing needs.
Carriage Specifications
Dimensions: 1800 × 1100 × 1200 mm
Volume: 970L
Foaming Material: Polyurethane
Outer Layer Material: Insulated Panel
