Universal Car Fitment ABS Material HVAC Control Module with 12V Power Supply for Bus Truck and Car AC Systems
Price:
USD 50~100/unit
MOQ:
50
Delivery Time:
30 days
Brand:
Newbase
Product Description
Tractor Engineering Vehicle HVAC Module AC Control Panel
Custom ODM HVAC control panel designed for trucks, buses, cars, and engineering vehicles with universal fitment and customized design options.
Product Overview
CK200216 tractor and bus air conditioner controller for climate control systems with comprehensive functionality and reliable performance.
Main Functions
- Three-speed fan control (High, Medium, Low)
- Error display and diagnostics
- Compressor status indication
- Shift function capability
Application Cases
Successfully implemented in SAFKAR and YILKAR vehicle systems, with customization available for specific requirements.
Technical Specifications
| Power Supply | DC12V (DC9+1V-15+1V) |
| Power Consumption | 3W |
| Current | Max. 200mA |
| Dimensions | 118 × 53 × 23mm |
| Input Signals | Inside temperature sensor, Defrost sensor, Power check, Pressure switch, ACC power DC12V |
| Output Controls | Evaporator High/Middle/Low, Compressor & Clutch (max 0.4A each) |
| Display | 2 segment display |
| Operating Temperature | -30°C to 80°C, 5%-95% RH Non-condensing |
| Storage Temperature | -10°C to 70°C, 5%-95% RH Non-condensing |
| Display Precision | Dual digit display with 1°C accuracy for set and inside temperature |
| Connector Type | 5569-10A, 5569-4A |
| Faceplate Protection | IP43 rated |
| EMC Compliance | EN50081 & EN50082-2 |
| Safety Standard | EN61010-II, Pollution degree: II |
| Weight | 305g |

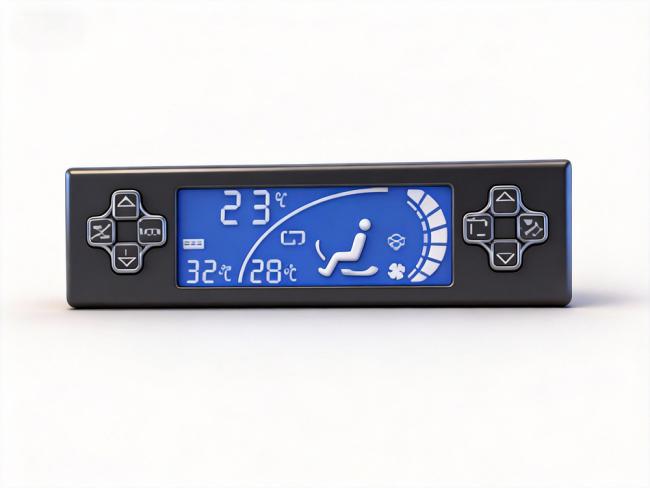

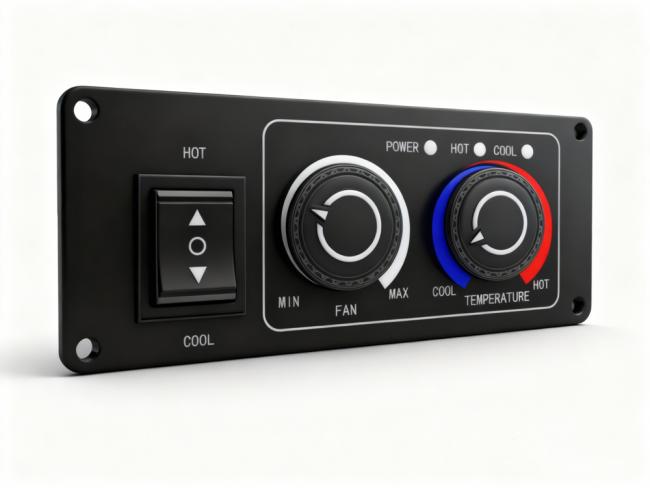

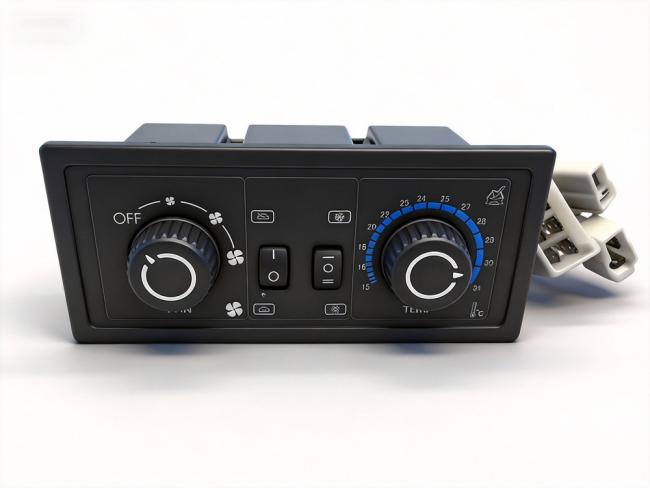

Product Images
Custom Vehicle HVAC Control Solutions
Custom A/C heater control units for vehicle transport refrigeration vans, passenger cars, auto buses, and trucks with 12/24V HVAC control module capabilities.
Bus air conditioning control panel with manual operation, cooling, fresh air, error alarm, airflow regulation, and linear temperature setting. Customization available to meet specific requirements.
Successful implementations include YUTONG, Winia Mando, Hyundai, and Yuxin automotive air conditioner systems.
Company Commitment
- Product Excellence: Supply superior vehicle environment control products with advanced technology
- Fast Delivery: Global branch offices and sales agents with professional engineering support for model selection and design recommendations
- Technical Support: Professional engineers available for installation, testing, and HVAC system expertise
- After-Sales Service: Comprehensive technical support and troubleshooting assistance
