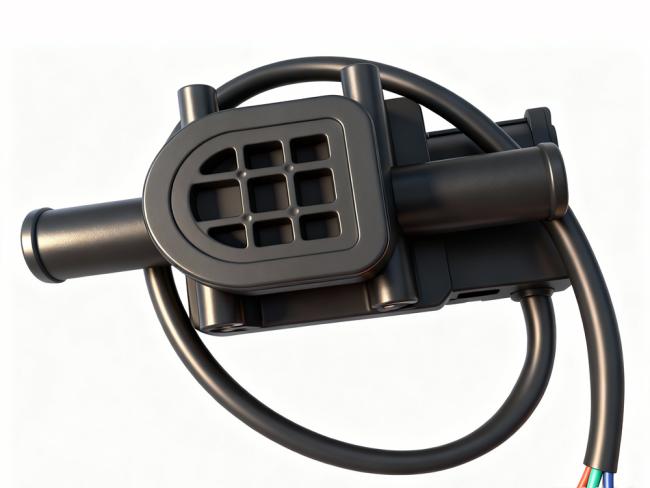

Universal Fitment 3-Wire Type HVAC Control Valve for Vehicle AC Systems ISO9001 Certified
Price:
USD 5~50/unit
MOQ:
50
Delivery Time:
30 days
Brand:
Newbase
Product Description
Custom Vehicle AC Accessories - 3-Wire Valve for HVAC Control System
Universal 3-wire custom valve designed for vehicle HVAC control systems, compatible with various automotive applications.
Product Functions
Continuously adjusts valve position by switching polarity of actuator wiring while simultaneously sending valve opening signals back to the control system.
| Voltage | DC 12V/24V |
| Dimensions | 112x57x72 (mm) |
| Medium | Cold/hot water |
| Medium Temperature | -5°C to 100°C |
| Flow Characteristic | Continuous |
| Application | AC systems for buses, trucks, cars, agricultural machinery |
| Item Name | 5-wire water valve |
| Model Number | NB201014-A |
| Max Diameter | DN10 |
| Leakage Rate | < 1L/h |
| Interface Form | Hoop |
| Installation | Horizontally or Upright |
| Working Life | 200,000 cycles |
| Warranty | 18 months |
| MOQ | 10 pieces |
| Price | USD 10-14 |
| Certification | ISO9001, TS16949, Rohs |
| Delivery Port | Qingdao/Shanghai/Guangzhou |
Product Specifications
Inner diameter of hose: 13mm
Outer diameter of hose: 17mm
Connector Configuration
The connector on the wire lead is configured as shown. Alternative socket models are available to match your air conditioning system wiring harness requirements.
Pin definition sequence can be customized according to your specific requirements.
Installation Guidelines
Install the water valve horizontally or vertically. Do not position the motor actuator under the valve body to prevent water leakage.
Product Components
NEWBASE water valve combines motor actuator and valve body assembly. Available actuator types include 2-wire, 3-wire, 5-wire, 7-wire, and voltage control models to suit your specific requirements.
Our technical team can provide recommendations based on your application needs.
Packaging & Delivery
| Carton | 5 layers corrugated paper, 1 unit |
| Box | 3 layers corrugated paper, 25 units |
| Valves | Bubble pack, 75 units |
| Net Weight | 15 kgs |
| Gross Weight | 16 kgs |
