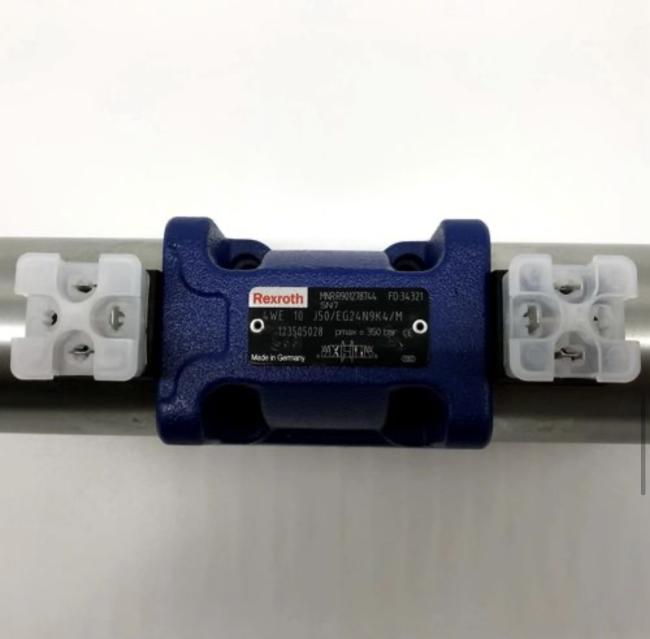

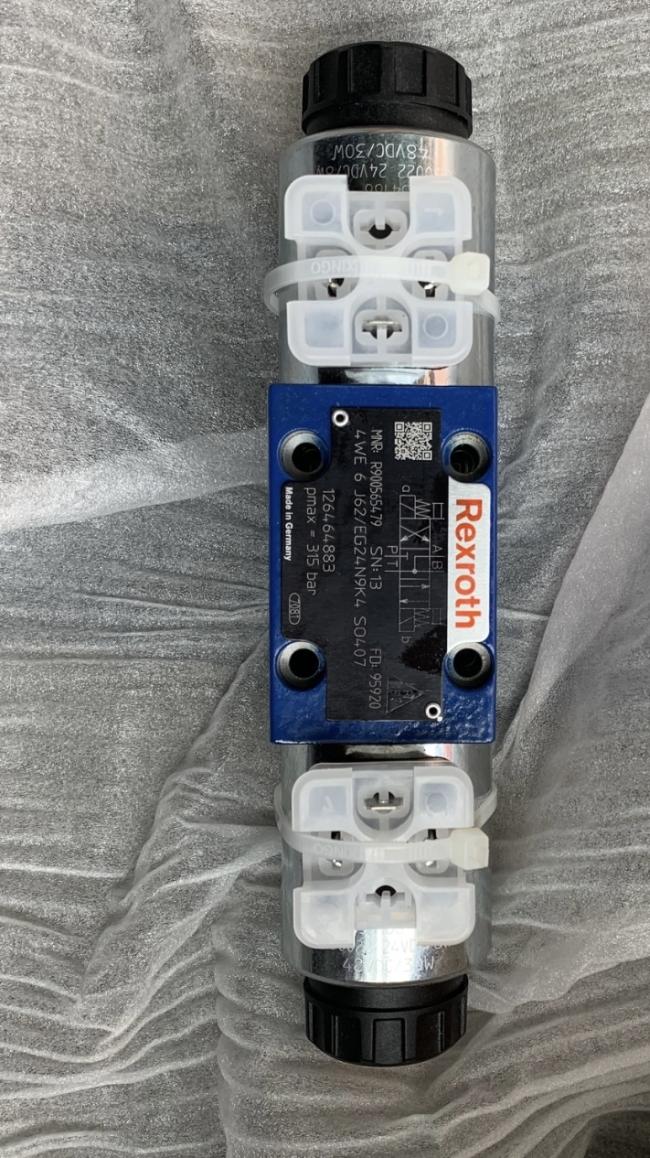

NG6 electromagnetic directional valve 4/2 4WE6D6X/EG24N9K4 NG6 electromagnetic directional valve 4/2 4WE6Y6X/EG24N9K4 NG6 electromagnetic directional valve German Rexroth hydraulic electromagnetic

NG6 electromagnetic directional valve 4/2 4WE6D6X/EG24N9K4 NG6 electromagnetic directional valve 4/2 4WE6Y6X/EG24N9K4 NG6 electromagnetic directional valve German Rexroth hydraulic electromagnetic

FQA;

Q5: What are the key precautions for installing the 4WE6 series valve?

1. Cleanliness First: Flush the hydraulic pipeline before installation to remove metal shavings, dust, or oil residues—impurities can scratch the valve core or block ports.
2. Port Alignment: Ensure the valve’s P/A/B/T ports match the pipeline labels (misconnection may reverse actuator movement or damage the valve).
3. Torque Control: Tighten threaded ports or flange bolts to the manufacturer’s specified torque (e.g., M16 bolts: 25–30 N·m). Over-tightening may deform the valve body; under-tightening causes oil leakage.
4. Solenoid Protection: Install the solenoid coil vertically (if possible) to avoid water or dust accumulation. For outdoor use, choose a coil with IP65/IP67 protection (e.g., 4WE6...-N9K4 = IP65).
5. Orientation: Most models support horizontal/vertical installation, but avoid upside-down mounting (gravity may affect core reset, especially for spring-return valves).

Q6: Is the 4WE6 series compatible with different hydraulic oils?

• NBR Seals (U-suffix): Compatible with mineral oil (the most common hydraulic oil, e.g., ISO VG 32/46), water-glycol mixtures (up to 40% water), and phosphate ester fluids (low concentration).
• FKM Seals (V-suffix): Compatible with high-temperature mineral oil, synthetic esters, and aggressive fluids (e.g., diesel, lubricating oil).

4. Maintenance & Troubleshooting

Q7: What regular maintenance is required for the 4WE6 series?

• Leakage Inspection: Check P/A/B/T port connections and solenoid coil O-rings for oil stains. Replace worn O-rings (use original manufacturer parts to ensure size/material matching).
• Filter Cleaning: Clean or replace the hydraulic system’s suction filter and return filter (clogged filters reduce oil flow and cause core jamming).
• Solenoid Check: Measure the coil resistance with a multimeter (DC 24V coil: 30–40 Ω; AC 220V coil: 150–200 Ω). Abnormal resistance (e.g., 0 Ω = short circuit, ∞ Ω = open circuit) means the coil needs replacement.
• Core Lubrication: For valves used in dusty environments, apply a small amount of hydraulic oil to the core (via the valve’s oil filling port) to reduce friction.
