China 4WE10E33/CG24N9K4 4WE10G33/CG24N9K4 4WE10J33/CG24N9K4 4WE10M33/CG24N9K4 4WE10Q33/CG24N9K4 German Rexroth mechanical directional valve for sale

4WE10E33/CG24N9K4 4WE10G33/CG24N9K4 4WE10J33/CG24N9K4 4WE10M33/CG24N9K4 4WE10Q33/CG24N9K4 German Rexroth mechanical directional valve

Name: 4WE10E33/CG24N9K4 4WE10G33/CG24N9K4 4WE10J33/CG24N9K4 4WE10M33/CG24N9K4 4WE10Q33/CG24N9K4 German Rexroth mechanical directional valve
Brand: Guang Zhou PMD Machinery Parts co ltd

Price Negotiable

Price: 1

MOQ: 1

Delivery Time: 2weeks

Brand: Rexroth

Product Description

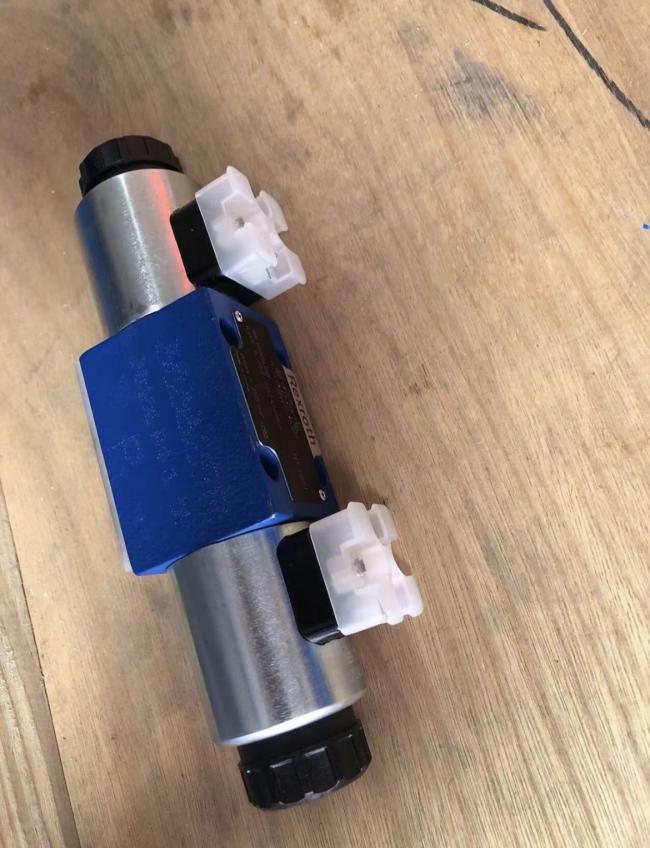

4WE10E33/CG24N9K4 4WE10G33/CG24N9K4 4WE10J33/CG24N9K4 4WE10M33/CG24N9K4 4WE10Q33/CG24N9K4 German Rexroth mechanical directional valve

brand	REXROTH	Valve function	reversing
Main sales regions	Europe, Southeast Asia, Global	Is it a cross-border export exclusive source of goods	yes
function and role	Reversing type	sealing material	Nitrile rubber
Pressure environment	atmospheric pressure	temperature environment	room temperature
Applicable Industries	Metallurgy, Chemical, Mining, Industrial	Drive Type	Electromagnetic, Hydraulic
oil products	mechanical	Triple formula	Unlimited supply quantity

4WE10J33/CG110N9K4/B10

4WE10J33/CG110N9K4/B08

4WE10J33/OFCG110N9K4

4WE10J33/OFCG220N9K4

4WE10J33/OFCW110N9K4

4WE10M33/CG220N9K4

3WE10A33/CG24N9K4 3WE10B33/CG24N9K4

4WE10C33/CG24N9K4 4WE10D33/CG24N9K4

4WE10Y33/CG24N9K4 4WE10EA33/CG24N9K4

4WE10EB33/CG24N9K4 4WE10JA33/CG24N9K4

230V AC solenoid valve, model CW230

3WE10A33/CW230N9K4 3WE10B33/CW230N9K4

4WE10C33/CW230N9K4 4WE10D33/CW230N9K4

4WE10Y33/CW230N9K4 4WE10EA33/CW230N9K4

4WE10EB33/CW230N9K4 4WE10JA33/CW230N9K4

FQA;

2. What do the "4WE6" designations mean?

The "4WE6" code follows a standardized naming convention (per DIN EN ISO 5598) to define the valve’s core parameters. Here’s the breakdown:

Code Segment	Meaning
4	Number of ports: 4 ports (P = Pressure, T = Tank, A/B = Work Ports)
W	Actuation method: Solenoid-operated (with optional manual override)
E	Spool type: "E" denotes a specific spool design (varies by manufacturer, e.g., for neutral position flow)
6	Nominal size: Correlates to flow capacity (typically 6 mm port diameter, ~30-50 L/min flow rate)

Example: A "4WE6J6X/EG24N9K4" valve adds details like spool position (J), voltage (EG24 = 24V DC), and seal material (N9K4 = nitrile).

3. What are the typical applications of the 4WE6 Series?

The 4WE6 Series is versatile and used in hydraulic systems requiring precise flow direction control. Common applications include:

Industrial machinery: Hydraulic presses, injection molding machines, conveyor systems
Mobile equipment: Small excavators, forklifts, agricultural machinery (e.g., tractor loaders)
Automation: Robotic arms, material handling systems, packaging equipment
General hydraulics: Cylinder actuation (extension/retraction), motor direction control

4. What are the key technical specifications of the 4WE6 Series?

While exact specs vary by manufacturer and model, standard ranges for the 4WE6 Series include:

Specification	Typical Range
Maximum Operating Pressure	315 bar (static), 250 bar (dynamic)
Flow Capacity	30–50 L/min (at ΔP = 1 bar)
Solenoid Voltage	DC: 12V, 24V; AC: 110V, 230V (50/60 Hz)
Fluid Compatibility	Mineral oil (ISO VG 10–68), water-glycol (optional)
Operating Temperature	-20°C to +80°C (fluid temperature)
Mounting Style	Subplate (ISO 4413), manifold, or inline
