2230 X 1800 X 1890MM Circular Sawing Machine Heavy Duty Metal Cutting
Intensive horizontal metal cutting operations face the critical challenge of achieving both substantial output and uncompromising dimensional precision. This CNC high-speed circular saw delivers a strategic solution, combining rapid cutting capability, sophisticated control, exceptional accuracy, and sustainable operation. Designed for robust performance and long-term consistency, it stands as a cornerstone technology for contemporary metal fabrication.
The machine's core strength is its consistent precision throughout extended production cycles. This reliability stems from several key features:
- Advanced Horizontal Feed Cutting: Utilizing an AC servo motor and ball screw transmission, this system enables smooth, operator-controlled cutting motions.
- High-Efficiency Material Fixation: A hydraulic multi-axis clamping system secures workpieces firmly, drastically reducing changeover time when adjusting for different material sizes or shapes.
- Long-Term Precision Assurance: Dimensional stability is ensured by backlash minimization in the servo/ball screw drive and a powerful hydraulic system that maintains uniform clamping and feed pressure.
For facilities prioritizing elevated throughput, an optional HIGH-CAPACITY AUTOMATED MATERIAL HANDLING SYSTEM integrates seamlessly. This system provides continuous, automated feeding, synchronizing perfectly with the saw's horizontal action, enabling extended, unattended batch processing.
| Model | Unit | JSSCD-100NC/P |
|---|---|---|
| Mainframe dimensions | mm | 2230*1800*1890 |
| Bar & round pipe | mm | 20-100 |
| Angle bar & square bar | mm | 20-85 |
| Saw blade size | mm | φ360*2.6*φ40 |
| Pin holes and hole diameters | mm | 4*φ11*90 φ40 |
| Spindle motor power | KW | 11(4P) |
| Spindle speed | rpm | 20-140 |
| Feed servo motor power | KW | 2 |
| Material removal length at the front end | mm | 10-99 |
| Single feeding length(repeatable) | mm | 10-800 |

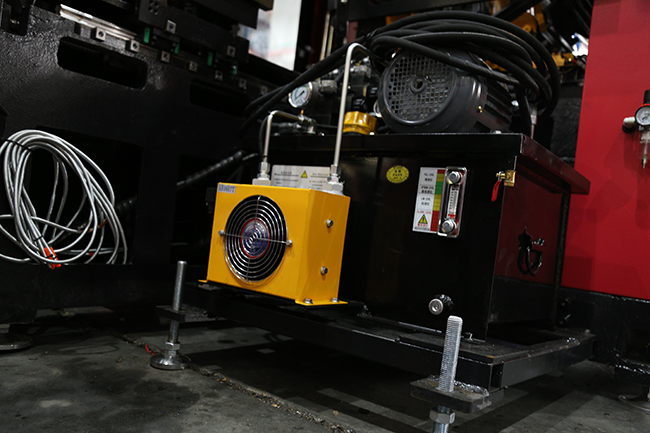

| Hydraulic drive motor power | KW | 2.25(4p) |
| Rated pressure of the hydraulic system | mpa | 5.5 |
| Hydraulic oil capacity | L | 100 |
