Product Description
JSSCD-160NC/X CNC High Speed Industrial Circular Saw Machine For Metal Cutting(Angled-Push)
The JSSCD-160NC/X CNC High Speed Circular Saw Machine (Angled-Push) is engineered for precision metal profile cutting with specialized capabilities for angled cutting operations. Featuring a unique 15° top-to-bottom cutting approach, this machine delivers high-speed performance, automated control, and exceptional precision while maintaining eco-friendly operation.
Key Features
- Specialized for cutting round tubes, angle steels, and square tubes without frequent fixture changes
- 15° top-to-bottom cutting method reduces stress on workpieces for smoother, flatter cut edges
- Advanced transmission and clamping system with high-strength materials for secure workpiece holding
- Intelligent control module precisely regulates cutting speed and angle for consistent results
- High-precision CNC control system with user-friendly interface for programming and automation
- Optional automatic feeding system for continuous batch cutting operations
- Improves material utilization and reduces waste while lowering labor costs
Technical Specifications
| Model | Unit | JSSCD-160NC/X |
|---|---|---|
| Mainframe dimensions | mm | 2240*2320*2040 |
| Bar & round pipe | mm | 40-160 |
| Angle bar & square bar | mm | 40-130 |
| Saw blade size | mm | φ480*2.7*φ50 |
| Spindle motor power | KW | 18.5/15 |
| Spindle speed | rpm | 20-110 |
| Feeding servo motor power | KW | 2.7 |
| Feed servo motor power | KW | 2.3 |
| Material removal length at the front end | mm | 10-99 |
| Single feeding length(repeatable) | mm | 10-800 |
| Hydraulic drive motor power | KW | 3.75(4p) |
| Rated pressure of the hydraulic system | mpa | 5.5 |
| Hydraulic oil capacity | L | 110 |
Additional Features
- Cut off feed mode: AC servo motor & ball screw / 15° cutting-in
- Main clamping method: Hydraulic type / one set each for horizontal and 15°
- Saw blade debris removal device: Passive/active circular wire brush (optional)
- Gear backlash compensation device: Hollow external rotating magnetic powder brake
- Feeding drive mode: AC servo motor & ball screw
- Feeding clamp method: Hydraulic type/Horizontal clamping
- Self-lubrication oil system: Timed and quantitative forced oil supply
- Micro-lubrication system for cutting: Quasi-dry intermittent oil supply

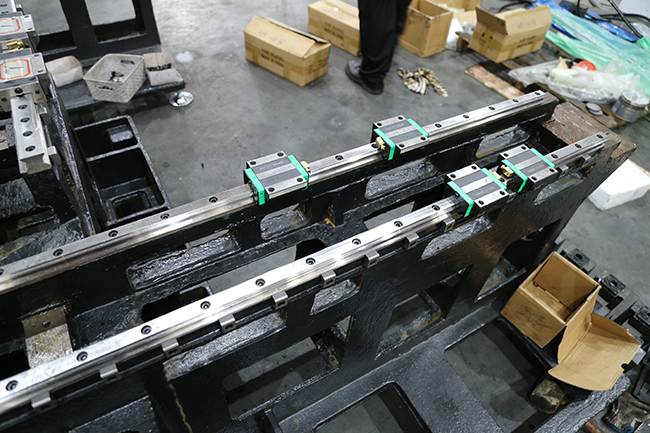

Product Images
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
We perform test cuts with sample materials you provide and share detailed cutting data along with video documentation.
Q4: What is your method of transaction?
We typically use FOB (Free On Board) transactions.
Q5: How about your delivery time?
Standard delivery is 7-60 work days after order confirmation, depending on product type and quantity.
Q6: How about the payment term?
Standard terms are 30% deposit with 70% balance paid before shipment. Other arrangements can be discussed with our sales team.
Q7: Does the band saw blade have any international certifications?
Yes, our products have obtained CE and ISO international certifications.
