Automatic IC Card Slot Milling Machine 3500 - 4500pcs/Hour Contact IC Card Slotter
| Attribute | Value |
|---|---|
| Power supply | AC 220V 50/60HZ |
| Weight | Around 650 KG |
| Equipment size | Approximately L1750xW800xH1850 mm |
| Rated Power | 6KW |
| Compressed air | 50 L/min 6 kgs /cm2 |
| Finish time | 40-50 working days |
| Control Mode | PLC + Servo system |
| Processed Card size | ISO CR80/IEC7810 cards 54×85.6mm |
Automatic IC Card Milling Machine YIM-4000+ is designed for milling the slot or cavity for IC chip implanting on plastic card surface in a precise and speedy way. It features robust design, reliable performance and fully automatic operation. It is controlled by PLC, which ensures easy parameter setting and stable performance.
- Card feeding magazines (two)

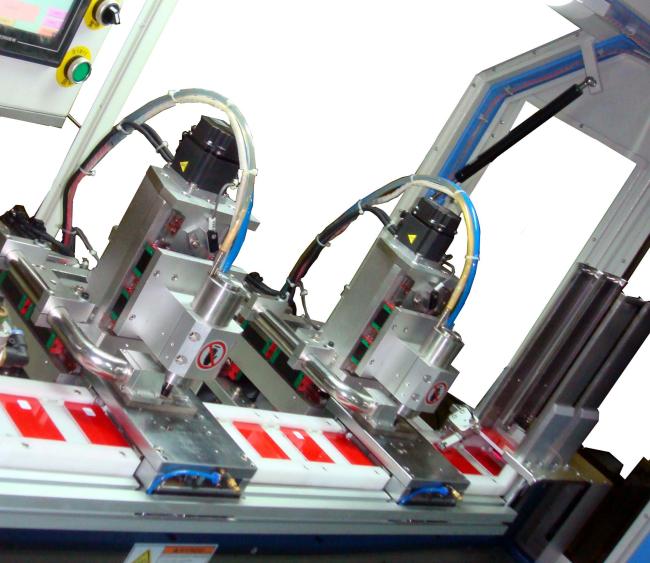

- Slot milling station #1 and #2
- Depth detection stations (two, optional)
- Dust absorber
- Card Collection magazines (two)
Double-card conveying system ensures two cards are milled simultaneously for high-speed operation. Three-shaft positioning control system drives servo motor to mill plastic card slots with precision. Each shaft's parameters can be adjusted independently without affecting milling precision.
| Power supply | AC 380V 50/60 HZ |
| Total power | 6.0 KW |
| Air source | 6kg/cm² (dry) |
| Air consumption | Approx. 50L/min |
| Weight | Approx 650Kg |
| Speed | 3500~4500pcs/h |
| Control method | PLC + Servo system |
| Card specification | ISO CR80/IEC7810 54x85.6mm |
| Dimension | Approximately L1750xW800xH1850 mm |
| Milling precision | X/Y: ±0.015mm Z: ±0.010mm |
| Operator | 1 Person |
The equipment features network servo linkage control with multiple spindle motors working synchronously for fast, accurate, and stable operation. The advanced card transfer and milling positioning system improves production speed and machine stability.
