2.5KW Industrial Smart Card Verification Machine YDPV-2 6000 - 7000 Cards/Hour
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 working days
Brand:
YL
Product Description

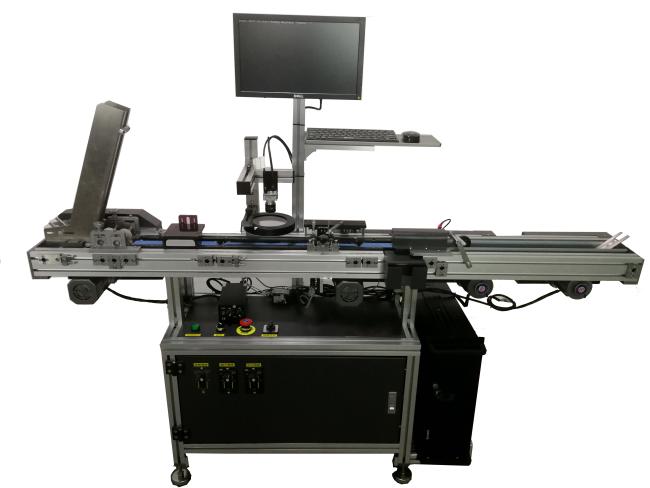

Smart Card Personalization Machine And Verification Machine YDPV-2 6000-7000 cards/hour
| Attribute | Value |
|---|---|
| Machine size | L1800*W600*H1600mm |
| Power supply | AC220, 50/60 Hz |
| General power | 2.5KW |
| Control mode | industrial control machine +PLC |
| Speed | 6000-7000 cards/hour |
| Card Frequency | 125KHz&13.56MHz, 915MHz(optional) |
Quality Control for Smart Card Data Personalization and Verification Machine YDPV-2
Introduction
The Smart Card Data Verification Machine YDV-7000 is designed for data comparison and verification of RFID card chip data, card surface data, and magnetic stripe data. It features three functional units: RFID card chip data verification, OCR surface data verification, and magnetic stripe data verification.
Machine Components
1. RFID Card Chip Data Verification Unit
- Frequency: 125KHz&13.56MHz, 915MHz (optional)
- Communication protocol: ISO 15693, 14443A/B, ISO18000B/C
- Reads and detects data for both low-frequency and high-frequency chip cards
- Optional ultra-high-frequency card data verification
- Compares read data with database files to identify errors
- Includes production log saving function
- Features data saving in case of power failure
2. OCR Surface Data Verification Unit
- Recognizes card surface data through OCR photography
- Compares identified surface data with database files to identify errors
- Analyzes duplicate data numbers and data incompleteness
- Recognizes: 1D barcode, 2D QR code, Arabic numbers, English characters
3. Magnetic Stripe Data Verification Unit
- Magnetic reactance degree: 300 OE - 2750 OE
- Reading magnetic density: 210 DPI, 75DPI/210 DPI, compatible 210 DPI
- Magnetic stripe tracks: Track 1/2/3, Hico/Loco, standard width 12.7mm
- Reads magnetic stripes on both sides of processed cards
- Compares magnetic stripe data with database files
4. Basic Configuration
Card feeding magazine (CR80 standard card) → RFID card chip data verification unit (LF+HF/optional UHF) → OCR surface data verification unit → magnetic stripe data verification unit (upper+lower side reading available) → Bad Card Rejection Unit → Good Card Collection magazine
Technical Specifications
| Communication protocol | ISO 15693, 14443A/B, ISO18000B/C |
|---|---|
| Cards types | For both low-frequency and high-frequency chip cards |
| OCR surface data verification unit | Optional |
| Production speed | 6000-7000 cards/hour |
| Recognize content | 1D barcode, 2D QR code, Arabic number, English characters |
| Control mode | Industrial computer + motion control system |
