Full Automatic Card Punching Machine High Speed For PVC ABS PET PETG And Paper Card

Price Negotiable

Price: negotiable

MOQ: 1 set

Delivery Time: 30-35days

Brand: YL

Product Description

Full Automatic Card Punching Machine High Speed For PVC ABS PET PETG And Paper Card

Product Specifications

Attribute	Value
Applicable materials	PVC, ABS, PET, PETG, paper card, PVC and ABS mixed materials
Punching precision	±0.10mm
Weight	About 1000Kg
Air consumption	About 100L/min
Air Source	6 kg/c㎡ (with no water)
Power	AC 380V/50 HZ
Applicable layout	A4, A3+ layout
Speed	6000~16000 cards/hour

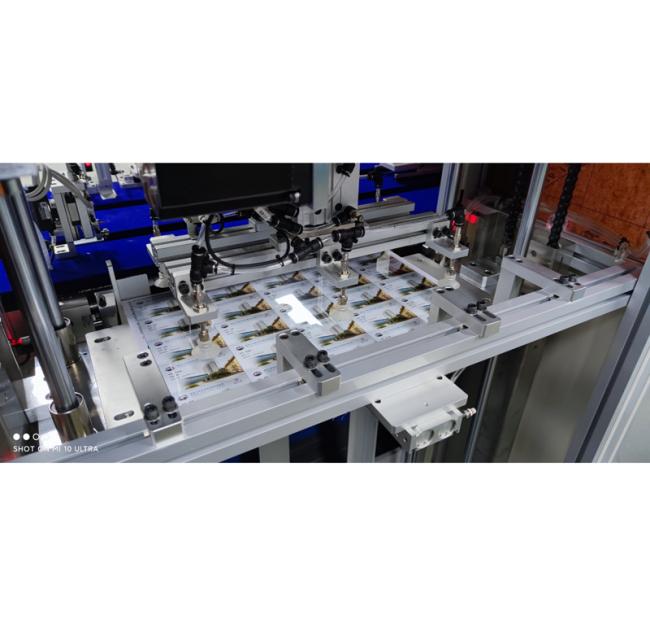

High Speed Full Automatic Card Punching Machine YLP-FA-600

This economic automatic card puncher features compact structure, reliable performance, and full automatic operation. Controlled by PLC program with Chinese/English bilingual touch screen interface.

Key Features

Servo motor feeding and conveying system with adjustable material picking/placing position
High-precision ball screw module for punching feed with adjustable position parameters
High-power servo motor punching system with low noise, fast speed, and stable power
PLC program control with real-time monitoring, automatic shutdown, and alarm functions

Technical Parameters

Power supply	AC 380V/50 HZ
Power	6.5KW
Control mode	PLC program control + servo system
Operator number	1 person
Dimension	L1600×W1250×H1650mm
Punched card standard	ISO CR-80-ISO7810 international standard

Application

Features high-sensitivity laser sensor and stepping system for precise longitudinal positioning, with servo-driven high-precision ball screw module for transverse sheet positioning and feeding. Automatic sheet picking system reduces operator workload.
