Air Cooled Industrial Water Chiller Machine 3HP YWC-3 For Card Laminator
Air Cooled Industrial Water Chiller 3HP YWC-3 Suitable For Card Laminator
1. Introduction of Air Cooled Industrial Water Chiller 3HP YWC-3 Suitable For Card Laminator
Note: 1). Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 12℃
Outlet chilled fluid temperature: 7℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature: 35℃
2). Working range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
It is better to use the chiller while the ambient temperature at or below 35℃.
We reserve the right to modify the above dimensions or parameters without further notice.
2. Technical Parameter of Air Cooled Industrial Water Chiller 3HP YWC-3 Suitable For Card Laminator
|
Model Item |
YWC-3HP | |
| nominal cooling capacity | kcal/h | 6966 |
| kw | 8.1 | |
| input power | kw | 3.27 |
| power supply | 3PH~380V/50HZ | |
| refrigerant | type | R22 |
| type of control | capillary | |
| compressor | type | hermetic scroll |
| power(kw) | 2.7 | |
| condenser | type | finned copper tube + low noise outer rotor fan |
| cooling air flow (m3/h) | 3000 | |
| evaporator | type | tank with coil |
| chilled fluid flow (m3/h) | 1.39 | |
| volume (L) | 50 | |
| inlet and outlet pipe diameter (inch) | 1 | |
| water pump | power (kw) | 0.37 |
| lift (m) | 20 | |
| safety protection | Compressor thermal protection, over current, high and low pressure, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing. | |
| weight | kg | 135 |
| dimension | mm | 930*520*975 |

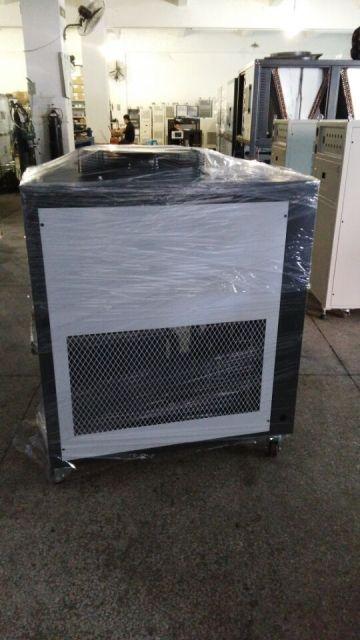

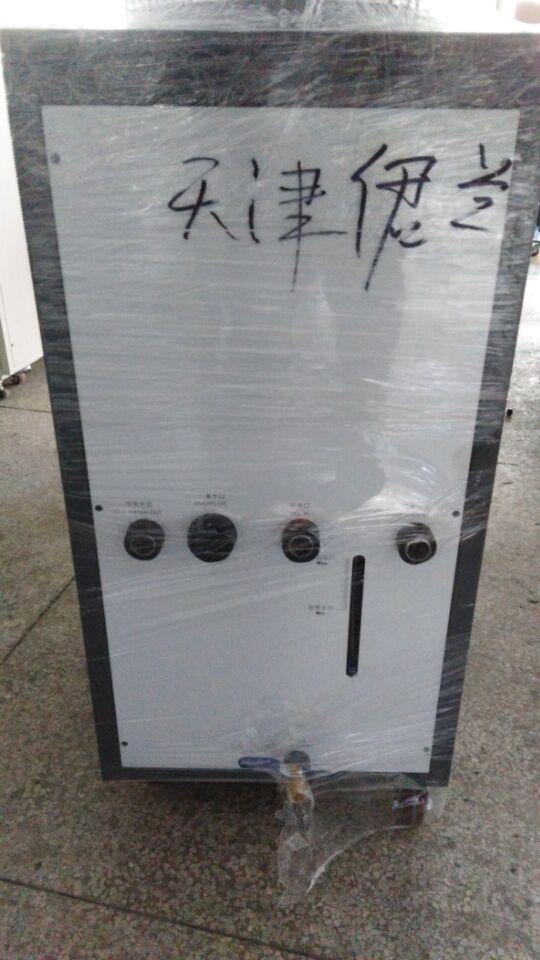

3 . Package of Air Cooled Industrial Water Chiller 3HP YWC-3 Suitable For Card Laminator
It will packaged in a strong plywood case,and will loaded container with be fixed with ropes and triangular plywood in container to avoid transport damage.
