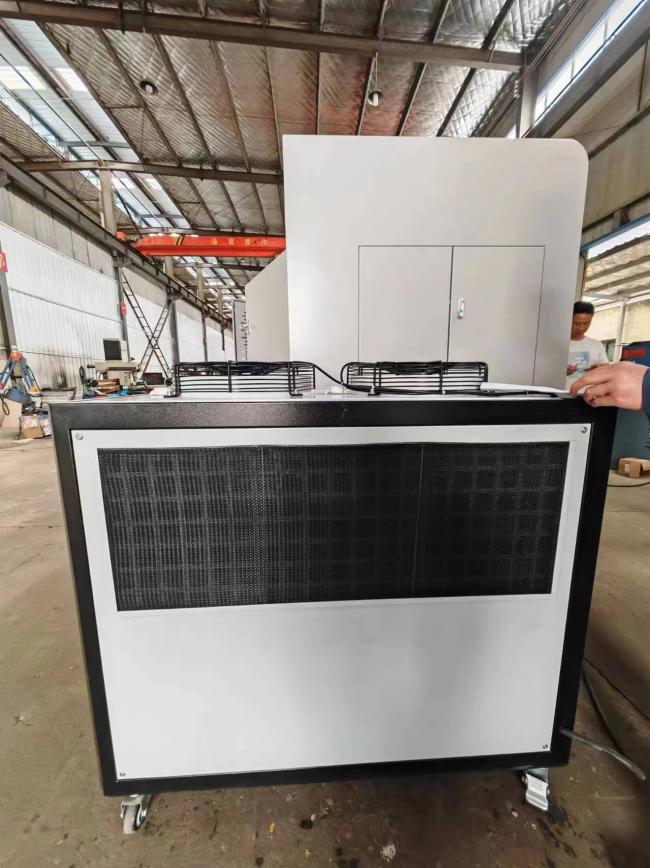

Air Cooled Industrial Water Chiller Machine 5HP 5KW For Card Laminator
5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
1. Introduction of 5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
Note: 1). Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 12℃
Outlet chilled fluid temperature: 7℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature: 35℃
2). Working range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
It is better to use the chiller while the ambient temperature at or below 35℃.
We reserve the right to modify the above dimensions or parameters without further notice.
2. Technical Parameter of 5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
|
Model Item |
YWC-5HP | |
| nominal cooling capacity | kcal/h | 11223 |
| kw | 13.05 | |
| input power | kw | 5.54 |
| power supply | 3PH~380V/50HZ | |
| refrigerant | type | R22 |
| type of control | capillary | |
| compressor | type | hermetic scroll |
| power(kw) | 4.41 | |
| condenser | type | finned copper tube + low noise outer rotor fan |
| cooling air flow (m3/h) | 5000 | |
| evaporator | type | tank with coil |
| chilled fluid flow (m3/h) | 2.24 | |
| volume (L) | 70 | |

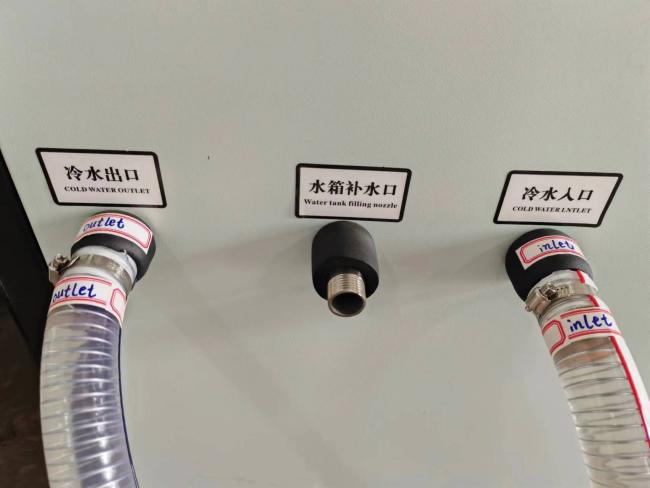

| inlet and outlet pipe diameter (inch) | 1 | |
| pump | power (kw) | 0.75 |
| lift(m) | 20 | |
| safety protection | compressor thermal protection, over current, high and low pressure, phase sequence, phase-missing, exhaust overheating. | |
| weight | kg | 175 |
| Dimension. | mm | 1140*560*1040 |
3 . Package of 5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
It will packaged in a strong plywood case,and will loaded container with be fixed with ropes and triangular plywood in container to avoid transport damage.
