380V PLC Control Magnetic Stripe Laying Machine For HiCo LoCo Plastic Cards
Price:
negotiable
MOQ:
1 set
Delivery Time:
30-35days
Brand:
YL
Product Description
PLC Magnetic Stripe Laying Machine Pasting For Hico/Loco Plastic Magnetic Card
Product Specifications
| Power supply | AC 380V/50 HZ |
| Mag. stripe model | ISO/IEC7811 HiCo/LoCo |
| Productivity | 10-12m/min (film roll) or 1000-1300 sheets/h (sheet) |
| Applicable materials | Plastic sheet: 0.25~0.8mm thick Max. width: 580mm, roll film: 0.04-0.2mm thick Inner diameter:3 inch; external diameter: ＜20 inches(500mm); Max. width: 580mm |
| Dimension | L2850×W1200×H1800mm |
| Weight | Approximately 800Kg |
Automatic Magnetic Stripe Laying Machine YMSL-1000
Also known as: Automatic Magnetic Stripe Pasting Machine, Magnetic Stripe Paster, Magnetic Stripe Applicator
Product Overview

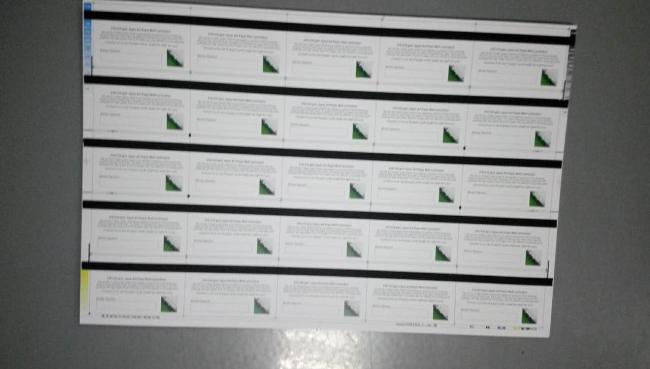

This machine is designed to precisely apply magnetic stripes onto plastic sheets or film rolls (such as PVC and PET) through heating and pressurization. It offers three material feeding and collection modes: roll-to-sheet, roll-to-roll, or sheet-to-sheet. The fully automated process ensures stable and reliable operation for both ordinary and transferable magnetic stripes.
Key Features
- PLC-controlled system with user-friendly interface
- Servo motor control for sheet feeding, speed, and film movement
- Rolling wheel clamping devices with adjustable air cylinder pressure for precise stripe application
- Automatic tension control system for smooth material feeding
- Air cylinder-driven film cutting unit for reliable operation
- Automatic waste collection system for magnetic stripe back foil
- Air shaft loading system for easy film roll handling
- Precise temperature control (±0.5℃) with imported temperature probe
- Individual temperature and pressure adjustment for each laying head
Technical Parameters
| Power supply | AC 380V/50 HZ | Mag. stripe model | ISO/IEC7811 HiCo/LoCo |
| Air resource | 6 kg/c㎡(dry) | Mag. stripe width | 12.7mm, wheel diameter: 380mm |
| Power | 8.5KW | Mag. stripes Qty. | 5~8 tapes optional |
| Temperature | 0-400℃(adjustable) | layout | 3X8, 4X8, 5X5 (optional) |
| Temp. precision | ±0.5℃ | Operator number | 1 |
| Mag. stripe laying precision | ±0.15mm | Dimension | L2850×W1200×H1800mm |
| Weight | Approximately 800Kg | Applicable materials | Plastic sheet: 0.25~0.8mm thick Max. width: 580mm, roll film: 0.04-0.2mm thick Inner diameter:3 inch; external diameter: ＜20 inches(500mm); Max. width: 580mm |
| Productivity: 10-12m/min (film roll) or 1000-1300 sheets/h (sheet) | |||
Applications
This machine is ideal for producing various plastic magnetic cards requiring precise magnetic stripe application, including ID cards, access cards, and payment cards.
