0.6mm Semi Matte Smart Card Material Lamination Steel Plate For PVC Card Making
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
10-15days after receiving the prepayment
Brand:
YL
Product Description

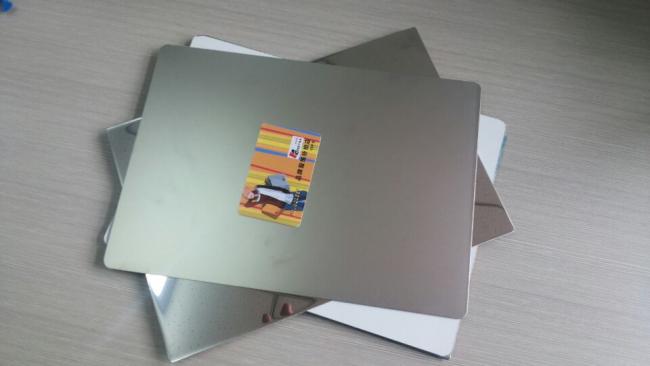

A4 0.6mm Semi Matte Rough Matte Lamination Press Steel Plate for PVC Card Making
Product Attributes
| Attribute | Value |
|---|---|
| Sheet size | 210x297mm or 310x480mm custom-made size |
| Common thickness | 0.5mm, 0.6mm, 0.8mm, 1.0mm etc |
| Application | PVC Card Making |
| Dimension tolerance | ±1mm for length and width |
| Surface roughness | Matte plate (Ra=0.3μm - 2.0μm) |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
Product Description
A4 0.6mm Semi Matte Rough Matte Lamination Press Steel Plate for PVC Card Making YSP-M is designed as consumables for plastic card lamination, ensuring perfect surface finish after the process. Widely used by card manufacturers globally, these plates offer excellent heat conduction, pressure resistance, and high-quality surface finish.
Key Features
- Both sides are protected with blue films that leave no residue when removed
- Consistent glossy or matte finish quality on both surfaces
- Free from scratches, dents, stripes, shadows, and dust
- Smooth edges with rounded corners for safety
- Non-stick surface prevents adhesion to laminated plastic sheets
| Product name | A4 0.6mm Semi Matte Rough Matte Lamination Press Steel Plate |
| Width | 1240mm/1500mm/1800mm/2000mm/2200mm or custom sizes |
| Thickness | 0.4mm-1.0mm |
| Surface | Mirror, glossy, matte, silk, patterned or custom finishes |
| Material | 304BA stainless steel |
| MOQ | 50pcs, with free samples available |
| Packing | Standard export packaging with surface polish, bundle package, wooden case/pallet, or custom options |
| Application | Smart card laminating process |
Technical Parameters
| Plate size (L×W) | A4, A3 or custom-made sizes |
| Plate thickness | 0.4mm, 0.6mm, 0.8mm, 1.0mm (±0.05mm tolerance) |
| Dimension tolerance | ±1mm for length and width |
| Plate flatness level | Maximum 1 mm.m |
| Surface roughness | Matte plate (Ra=0.3μm - 2.0μm) |
| Glossy plate surface glossiness | Over 800 GU at 20° (both sides) |
| Surface hardness | HRC26±2 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Packaging box | Solid plywood carton with soft cushion protection |
Additional Details

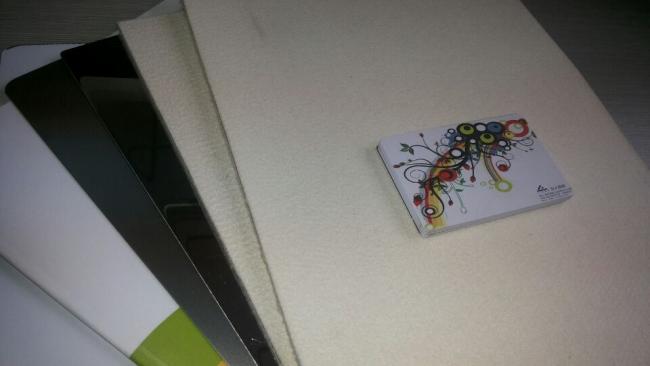

Also known as semi matte finish plastic card laminating plate or heavy matte lamination steel plate, this product is available in five surface variations:
- Glossy steel plates
- Matte steel plates (with tiny lights for planographic and inkjet codes)
- Silk matte steel plates
- Grained matte steel plates
- Special pattern steel plates
Standard sizes: 100mm×120mm; 210mm×297mm; 210mm×320mm; 325mm×480mm; 340mm×500mm or customized
Available thicknesses: 0.6mm, 0.8mm, 1mm
