China Grained Finish Smart Card Material Card Lamination Steel Plate 1.0mm Custom Size for sale

Grained Finish Smart Card Material Card Lamination Steel Plate 1.0mm Custom Size

Price Negotiable

Price: Negotiable

MOQ: 50pcs

Delivery Time: 10-15days after receiving the prepayment

Brand: YL

Product Description

Grained Finish Card Lamination Steel Plate 1.0mm With Round Curved Corners MSP-GR

Product Overview

High-quality grained finish steel plates designed for plastic card lamination processes, ensuring perfect surface finish. Widely used by card manufacturers worldwide with over 10 years of proven performance.

Key Specifications

Slight Grain Steel plate: Ra 2.5 - 3.0 μm
Heavy Grain Aluminum plate: Ra 5.5- 6.0 μm
Surface hardness: HRC26±2
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Available sizes: A4, A3 or custom dimensions
Thickness options: 0.6mm, 0.8mm (±0.05mm tolerance)

Product Features

Dual-sided protective foil covering for surface protection
Consistent matte finish quality on both surfaces
Free from scratches, dents, stripes, and dust
Smooth, deburred edges with rounded corners
Non-stick surface prevents adhesion to laminated sheets

Grained Finish Card Lamination Steel Plate showing surface texture and protective film

Technical Parameters

Parameter	Specification
Plate size (L×W)	A4, A3 or custom-made size
Plate thickness	0.6mm, 0.8mm, 1.0mm (±0.05mm tolerance)
Dimension tolerance	±1mm for length and width
Surface roughness	Slight Grain: Ra 2.5-3.0μm / Heavy Grain: Ra 5.5-6.0μm
Surface hardness	HRC26±2
Thermal transmission	0.04cal/℃.cm.sec at 20℃

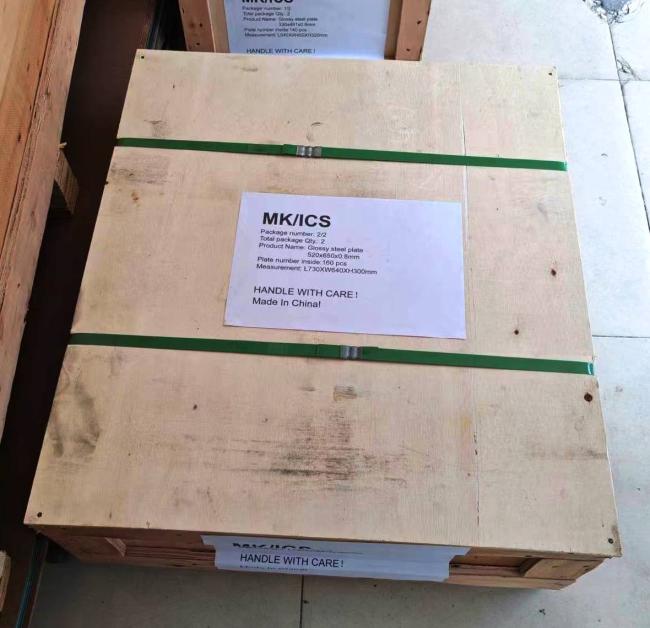

Packaging	Solid plywood carton with soft cushion protection
