High Stability Vehicle Speed Sensor with Voltage & PWM Output for Speed Monitoring & Dashboard Systems OEM
Price:
Negotiable
MOQ:
1000 pieces
Delivery Time:
generally 2-3 months（Special orders can be processed separately)
Product Description
High Stability Vehicle Speed Sensor with Voltage & PWM Output for Speed Monitoring & Dashboard Systems OEM
Product Overview
This vehicle speed sensor is used for accurate speed detection in automotive speed monitoring and dashboard systems. It provides dual voltage and PWM signal output for real‑time speed data feedback.
Technical Specifications
| Model | TIA-C03S0501 |
| Material | PBT+GF30 |
| Operating Temperature | -40℃ to 125℃ |
| Storage Temperature | -40℃ to 125℃ |
| Operating Voltage | 5±0.5V |
| Operating Current | <20mA |
| Signal Output | Voltage |
| Linear Accuracy | ±1.5% |
Problem
Speed signal failure occurs in harsh environments. Conventional sensors have limited power supply compatibility and poor durability, affecting speed monitoring accuracy.
Cause
Weak material structure reduces reliability. Single signal output limits compatibility. Narrow voltage range restricts application. High power consumption affects system stability.
Solution

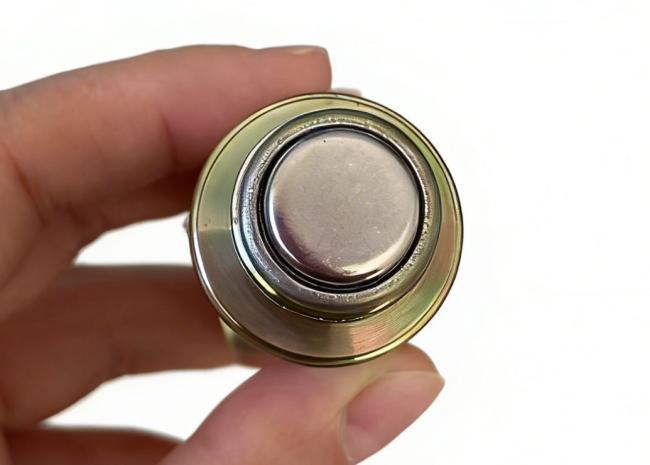

This sensor adopts A3 steel + 304 stainless steel structure for high durability. It supports dual voltage & PWM output, 8‑36VDC wide voltage supply, -40℃~125℃ temperature range and <20mA low power consumption for stable speed detection.
How It Works
The sensor detects wheel or transmission speed changes, converts mechanical speed into electrical signals, and outputs voltage or PWM signals to the dashboard for real‑time speed display.
Applications
- Speed Monitoring Systems
- Dashboard Systems
- Transmission Control Systems
- OEM Automotive Speed Detection Assembly
Key Advantages
Wide Voltage Supply (8‑36VDC) → Compatible with various automotive power systems
Wide Temperature Range (-40℃ to 125℃) → Suitable for extreme driving environments
Dual Signal Output (Voltage & PWM) → Ensures stable speed data transmission
Steel + Stainless Steel Structure → Improves durability and corrosion resistance
Low Power Consumption (<20mA) → Supports long‑term speed monitoring operation
How To Choose
For speed monitoring: Dual voltage/PWM output is recommended
For commercial vehicles: 8‑36VDC wide voltage is required
For harsh environments: Metal structure is preferred
For OEM projects: Bulk customization is supported
FAQ
Q: What is the minimum order quantity?
A: Standard MOQ is 1000 pcs.
Q: Is this product for individual use?
A: Mainly for automotive OEM and bulk applications.
Q: Can you customize the sensor?
A: Yes, we support interface and signal customization.
