External FBE PIPE FBE Coating Pipe Thickness 400-600 Microns For Natural Gas Petroleum Pipe Systems

FBE PIPE FBE Coating Pipe

FBE coating steel pipe is fusion bonded epoxy coating steel pipe . It is a kind of external heat resin used for pipes . With a form of dry powder at thickness 400-600 microns on to the heated surface of pipe . Once the FBE coated on the pipe surface , the FBE film provides an extremely hard surface with great adhesion to the surface of pipe . The FBE layer in a even form and have good resistance to the chemical reaction .

Application: Used for natural gas , petroleum , water & sewage , and pipe systems
Coating Standard: DIN 30670 , DIN 30671 , DIN 30678 , SY/T0413-2002 CAN/CSA-Z245.21 etc.

Pipe Type: Submerged Arc Welded ( LSAW / SSAW ) , Electrci Resistance Welded ( ERW )
Surface: One Layer / Double Layer FBE anti-corrosive coating powder ( 200um~800um )

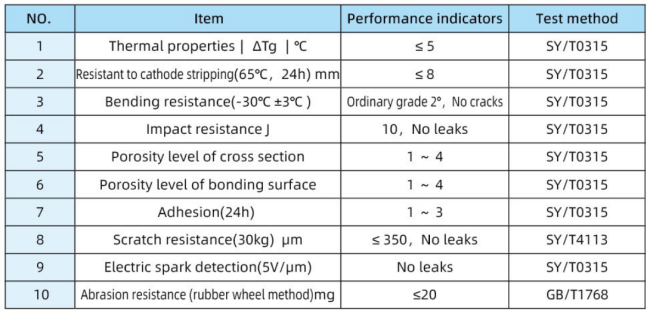

coating performance table
