40KPA - 400KPA Magnetic Levitation Blower Industrial High Pressure Blower
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
5-8 work days
Brand:
Frezer
Product Description
Assembly High Pressure Magnetic Levitation Blower for Food Processing Plant
Product Introduction
The rotational speed (RPM) of the high - speed permanent magnet synchronous motor is regulated by a frequency converter. It is directly coupled to the spindle, enhancing power transmission efficiency and decreasing noise. The adoption of air bearings removes physical contact points, thereby minimizing mechanical friction (with maximum efficiency ranging from 96% to 98%).
High - speed permanent magnet motor featuring air bearings, optimized through high - efficiency impeller core technology, realizes more than 30% energy savings.
Product Specification
| Details | ST10 | ST20 | ST30 | ST50 | ST75 | ST100 | ST125 | ST150 | ST200 | ST250 | ST300 | ST350 | ST400 | ST500 | ST600 | Cooling Method | |
| Type | SINGLE GRADE | DOUBLE GRADE | |||||||||||||||
| Discharge Pressure(KPA) | Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance | Air Cooling | |||||||||||||||
| 40 | 10 | 18 | |||||||||||||||
| 60 | 7.5 | 15 | 20 | 34 | 51 | 69 | 82 | 105 | 140 | 175 | 210 | 280 | 345 | 420 | |||
| 70 | 13 | 18 | 30 | 45 | 60 | 74 | 90 | 120 | 150 | 180 | 240 | 300 | 360 | ||||
| 80 | 12 | 17 | 28 | 42 | 54 | 70 | 84 | 109 | 135 | 164 | 218 | 270 | 328 | ||||
| 90 | 37 | 50 | 61 | 71 | 92 | 140 | 184 | ||||||||||
| 100 | 34 | 45 | 55 | 67 | 87 | 133 | 230 | 260 | |||||||||
| 150 | 32 | 48 | 60 | 69 | 81 | 121 | 125 | ||||||||||
| 200 | 56 | 65 | 71 | 85 | Water Cooling | ||||||||||||
| 300 | 105 | 79 | |||||||||||||||
| 350 | 20 | 37 | 72 | ||||||||||||||
| 400 | 25 | 65 | |||||||||||||||
| Motor Power(KW) | 7.5 | 15 | 22 | 37 | 55 | 75 | 90 | 110 | 150 | 185 | 220 | 250 | 300 | 375 | 450 | ||
| Discharge Pipe(KW) | 80 | 100 | 150 | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||
| Size(MM) | Width | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1200 | 1300 | 1300 | 1300 | 1300 | |
| Length | 1250 | 1250 | 1250 | 1250 | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 | 2200 | 2700 | 2700 | 2700 | 2700 | ||
| Height | 970 | 970 | 970 | 970 | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 | 1916 | 2115 | 2115 | 2115 | 2115 | ||
| Weight | 680 | 680 | 680 | 750 | 800 | 960 | 960 | 1050 | 1050 | 1100 | 1320 | 1580 | 1580 | 1800 | 1800 | ||
Product Show
Delivery
We can delivery the products by any methods as your wish.
Transaction Process
- Get requirements to match products
- Compare with the Roots blower
- Quotation
- Receive payment
- Production
- Packing in wooden cases
- Delivery
- Feedback
Applications
- Wastewater Treatment Plant

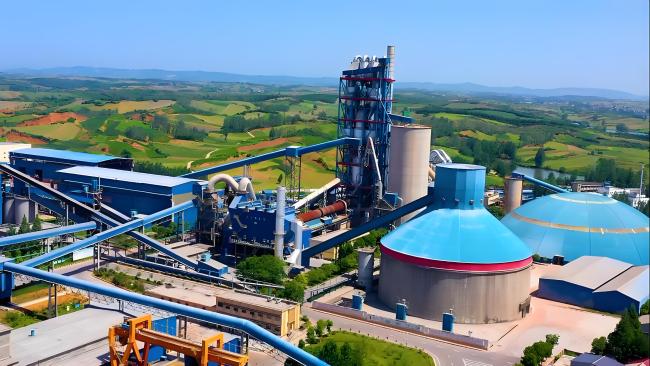

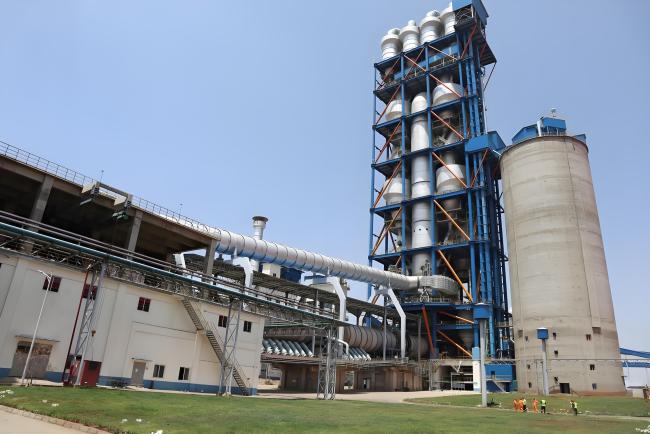

- Cement Plant
- Steel Mill
- Chemical Powder Handling Plant
- Flue Gas Desulfurization Plant
- Electroplating Plant
- Sandblasting Facility
- Electronics Manufacturing Plant
- Food Processing Plant
- Pharmaceutical Manufacturing Plant
- Paper Mill
- Textile Mill
- Dyeing and Printing Plant
FAQ
Q1: What factors will you need to match the products?
Pressure & Flow Volume
Q2: What is the production time?
Normally one week after receiving your payment.
Q3: What is your minimum order quantity?
MOQ 1 set.
Q4: Are you a manufacturer?
Yes.
Q5: Which delivery methods can you support?
By air, sea, land, rail, express like DHL, UPS, FEDEX.
