Whole High Technology Magnetic Levitation Blower For Dyeing And Printing Plant
Whole High Technology Magnetic Levitation Blower for Dyeing and Printing Plant
Product Introduction

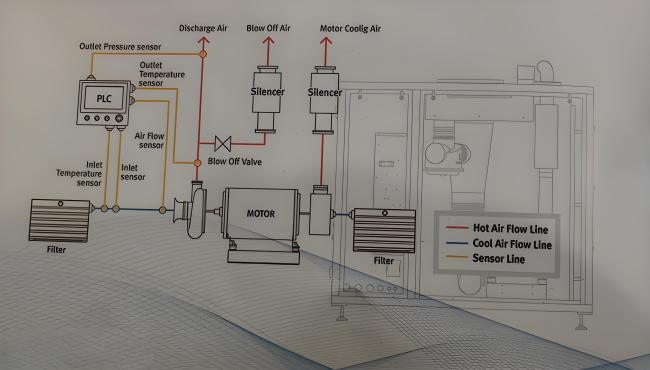

Moving to the "Blow Off Air" system, components such as two Silencers, a Blow Off Valve, a MOTOR, and another Filter are listed. The presence of multiple silencers suggests noise reduction is a priority, while the blow-off valve likely regulates pressure release. The motor and filter ensure efficient operation and air quality maintenance.
The "Motor Cooling Air" section includes a Hot Air Flow Line, a Cool Air Flow Line, and a Sensor Line, which collectively manage thermal regulation for the motor. This setup ensures optimal performance by dissipating heat and maintaining safe operating temperatures.
Product Specification
| Details | ST10 | ST20 | ST30 | ST50 | ST75 | ST100 | ST125 | ST150 | ST200 | ST250 | ST300 | ST350 | ST400 | ST500 | ST600 | Cooling Method | |
| Type | SINGLE GRADE | DOUBLE GRADE | |||||||||||||||
| Discharge Pressure(KPA) | Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance | Air Cooling | |||||||||||||||
| 40 | 10 | 18 | |||||||||||||||
| 60 | 7.5 | 15 | 20 | 34 | 51 | 69 | 82 | 105 | 140 | 175 | 210 | 280 | 345 | 420 | |||
| 70 | 13 | 18 | 30 | 45 | 60 | 74 | 90 | 120 | 150 | 180 | 240 | 300 | 360 | ||||
| 80 | 12 | 17 | 28 | 42 | 54 | 70 | 84 | 109 | 135 | 164 | 218 | 270 | 328 | ||||
| 90 | 37 | 50 | 61 | 71 | 92 | 140 | 184 | ||||||||||
| 100 | 34 | 45 | 55 | 67 | 87 | 133 | 230 | 260 | |||||||||
| 150 | 32 | 48 | 60 | 69 | 81 | 121 | 125 | ||||||||||
| 200 | 56 | 65 | 71 | 85 | Water Cooling | ||||||||||||
| 300 | 105 | 79 | |||||||||||||||
| 350 | 20 | 37 | 72 | ||||||||||||||
| 400 | 25 | 65 | |||||||||||||||
| Motor Power(KW) | 7.5 | 15 | 22 | 37 | 55 | 75 | 90 | 110 | 150 | 185 | 220 | 250 | 300 | 375 | 450 | ||
| Discharge Pipe(KW) | 80 | 100 | 150 | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||
| Size(MM) | Width | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1200 | 1300 | 1300 | 1300 | 1300 | |
| Length | 1250 | 1250 | 1250 | 1250 | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 | 2200 | 2700 | 2700 | 2700 | 2700 | ||
| Height | 970 | 970 | 970 | 970 | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 | 1916 | 2115 | 2115 | 2115 | 2115 | ||
| Weight | 680 | 680 | 680 | 750 | 800 | 960 | 960 | 1050 | 1050 | 1100 | 1320 | 1580 | 1580 | 1800 | 1800 | ||
Product Show
Application Cases

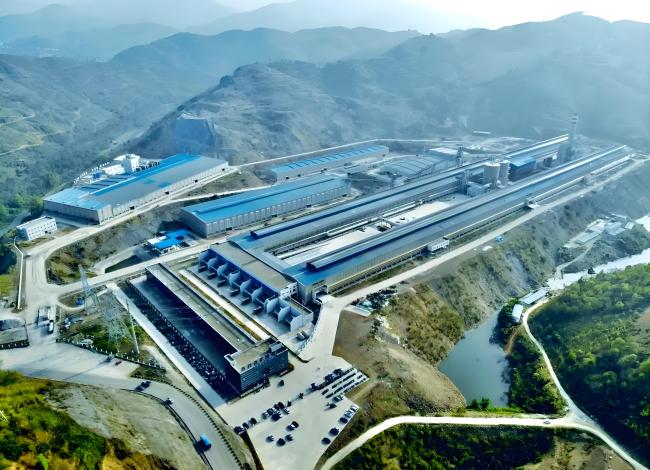

Iron and Steel Industry
Retrofitting Needs
For customer steel plants, promoting high-quality development, green energy-saving, and low-carbon initiatives by retrofitting high-energy-consuming existing equipment to reduce costs and increase efficiency.
Energy-Saving Solution
Through multi-dimensional evaluation, an efficient retrofitting plan has been formulated: replacing 1 Roots Blowers (232KW) with 1 Air Suspension Centrifugal Blower (150KW), achieving up to 34% energy savings, improving efficiency, reducing energy consumption, and delivering savings while in use.
Retrofitting Advantages
- High Efficiency & Energy Savings – Energy-saving rate of up to 34%, with a payback period within one year.
- Improved Space Utilization – Eliminates unnecessary construction, requires no secondary plant modifications, and enables on-site utilization.
- Convenient Maintenance – Lubrication-free system, maintenance-free, and avoids secondary pollution.
- Smart "Expert" – Intelligent operation and maintenance platform featuring remote control, machine alerts, maintenance reminders, and other user-friendly services, reducing labor costs.
Annual cost savings of approx. $100,000, with an electricity saving rate of up to 34%
Applications
- Wastewater Treatment Plant
- Cement Plant
- Steel Mill
- Chemical Powder Handling Plant
- Flue Gas Desulfurization Plant
- Electroplating Plant
- Sandblasting Facility
- Electronics Manufacturing Plant
- Food Processing Plant
- Pharmaceutical Manufacturing Plant
- Paper Mill
- Textile Mill
- Dyeing and Printing Plant
FAQ
Q1: What factors will you need to match the products?
Pressure & Flow Volume
Q2: What is the production time?
Normally one week after receiving your payment.
Q3: What is your minimum order quantity?
MOQ 1 set.
Q4: Are you a manufacturer?
Yes.
Q5: Which delivery methods can you support?
By air, sea, land, rail, express like DHL, UPS, FEDEX.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
