Industrial All In One Dust Cleaning Blower For Cement Industry Textile Mill

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 5-8 work days

Brand: Frezer

Product Description

Industrial All in One Dust Removal Blower for Cement Industry Textile Mill

Product Introduction

Performance tables include technical specifications such as model number, bore size, operating speed, discharge pressure, airflow capacity, and power consumption for each blower.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm²(101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

Efficient delivery solutions are essential in the global business landscape. We offer an extensive array of shipping methods to meet your needs, leveraging well - known logistics services.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Pressure	Pa	Bar	Kgf/cm2	atm	mmH2O	MmHg(Torr)
	1 1×10⁵ 9.806 65×10⁴ 1.013 25×10⁵ 9.806 65 1.333 22×10²	1×10⁵ 1 9.806 6525×10^-1 1.013 25 9.806 6525×10^-5 1.333 2225×10^-3	1.019 72×10^-5 1.019 72 1 1.033 23 1×10^-4 1.359 51×10^-3	9.869 23×10-6 9.869 23×10-1 9.678 41×10-1 1 9.678 41×10-5 1.315 79×10-3	1.019 72×10^-1 1.019 72×10⁴ 1×10⁴ 1.033 23×10⁴ 1 1.359 51×10	7.500 62×10^-5 7.500 62×10² 7.355 59×10² 7.600 00×10² 7.355 59×10^-2 1

Product Specification

Mark Type	Bore	A	B	C	D	E	F	G	H	J
SR-50	50A	570	179	135	895	152	230	540	420	60
SR-65	65A	610	202	145	970	192	230	600	440	80
SR-80	80A	700	225	165	1130	217	280	650	500	75
SR-100	100A	900	265	175	1255	234	280	850	630	110
SR-125	125A	945	294	205	1525	260	355	920	710	105
SR-150	150A	1155	377	225	1745	305	400	1150	950	100
SR-175	200A	1300	457	245	1765	305	520	1330	1030	150
SR-200	200A	1570	550	276	2230	405	591	1600	1300	150
SR-250	250A	1847	596	445	2790	520	760	2200	1800	2300
SR-300	300A	2167	683	470	2805	520	750	2500	2040	230

Mark Type	Bore	K	L	M	N	O	P	Q	R	n-Φ1	Weight
SR-50	50A	―	―	260	220	122	20	80	60	4-Φ14	72
SR-65	65A	―	―	300	260	122	20	80	80	4-Φ14	84
SR-80	80A	―	―	370	330	147	20	80	75	4-Φ19	132
SR-100	100A	―	―	400	360	114	20	80	110	4-Φ19	168
SR-125	125A	355	355	430	390	175	20	100	105	6-Φ19	245
SR-150	150A	475	475	500	455	190	22.5	100	165	6-Φ19	408
SR-175	200A	515	515	500	455	310	22.5	100	240	6-Φ19	505
SR-200	200A	650	650	650	605	348	22.5	126	240	6-Φ19	900
SR-250	250A	900	900	950	870	250	40	140	250	6-Φ24	1653
SR-300	300A	1020	1020	950	870	240	40	140	270	6-Φ24	2132

Product Show

Transaction Process

The transaction process plays a vital role in ensuring the seamless operation of business activities, comprising a sequence of steps from requirement acquisition to final feedback. To begin with, aligning requirements with products is the initiation of the entire process. Enterprises must deeply comprehend customers’ specific needs and expectations. Following precise analysis, they match the most appropriate products for customers, which forms the cornerstone of establishing sound customer relationships.

The subsequent step is the quotation phase. Enterprises provide customers with clear and accurate price lists based on elements like product costs and market conditions, allowing customers to have a transparent understanding of transaction expenses. When customers approve the quotation, the payment collection stage commences. Only upon receiving the payment can subsequent production proceed without hindrance.

After payment receipt, the production process starts. Enterprises meticulously coordinate production in line with established standards and customer demands to guarantee product quality. Once production is finished, the products will be packed in wooden cases. This not only safeguards the products from damage during transportation but also facilitates handling and storage.

Finally, the delivery and feedback stages follow. Enterprises deliver products to customers via reliable logistics. Thereafter, they proactively gather customer feedback to understand their satisfaction with products and services, aiming to continuously optimize the transaction process and enhance product quality. Through such a rigorous and systematic transaction process, both enterprises and customers can achieve their respective business objectives and attain a win-win outcome.

Delivery

In the global business environment, efficient delivery solutions play a vital role. We provide a diverse range of shipping methods to fulfill your requirements, partnering with renowned logistics services.
Additionally, we utilize traditional shipping methods like sea freight (ideal for large - scale, non - urgent shipments) and road transport for local/regional deliveries, using vehicles to ensure safe arrival of your goods. Whether you require urgent air delivery for a document or sea shipping for a container of products, we can deliver via any method as you desire.

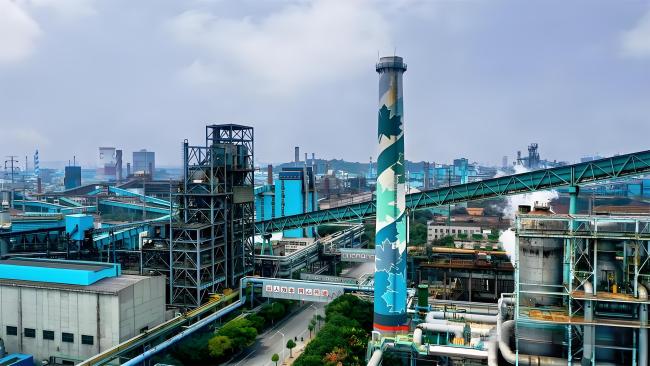

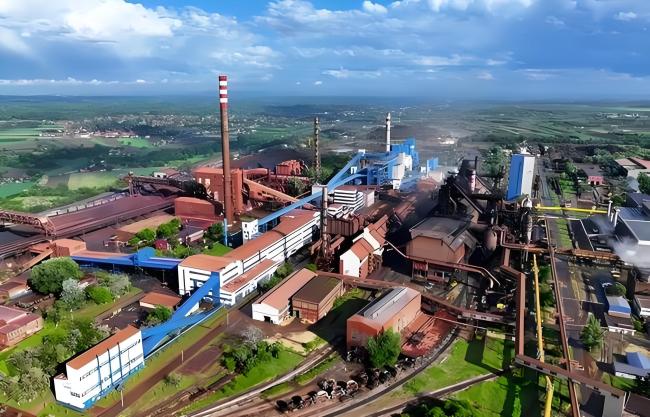

Applications

Wastewater Treatment Plant
Cement Plant
Steel Mill
Chemical Powder Handling Plant
Flue Gas Desulfurization Plant
Electroplating Plant
Sandblasting Facility
Electronics Manufacturing Plant
Food Processing Plant
Pharmaceutical Manufacturing Plant
Paper Mill
Textile Mill
Dyeing and Printing Plant
