Industrial Consolidated Air Knife Blowers 40KPA - 400KPA High Pressure For Cement Plant

High Pressure Consolidated Industrial Air Knife Blower for Cement Plant

Product Introduction

Our blower includes three key components, one of which is the ternary flow impeller. The impeller, made of 7075 material, can ensure stable operation at ultra-high speeds. It is precision-machined by a five-axis machining center and designed based on the ternary flow concept, achieving a multi-variable efficiency of 92%. The second component is a high-speed permanent magnet motor, which adopts advanced air-cooling technology for motors, with an efficiency of up to 97%. This motor features frequency conversion speed control, high energy efficiency, simple overall structure, high power density, wide amplitude range, strong overload capacity, and high reliability. The third is an air bearing, which uses a self-acting dynamic pressure air bearing supported by a flexible surface. It is characterized by long service life, high reliability, good stability, strong bearing capacity, and high temperature resistance. Without lubrication, it has almost no power loss, showing obvious energy-saving effects. There is no friction inside the dynamic pressure air bearing, which suppresses rotor vibration. The rotor amplitude is less than 0.02mm, and it has passed 20,000 start-stop tests, making it a semi-permanent bearing in the true sense.

Product Specification

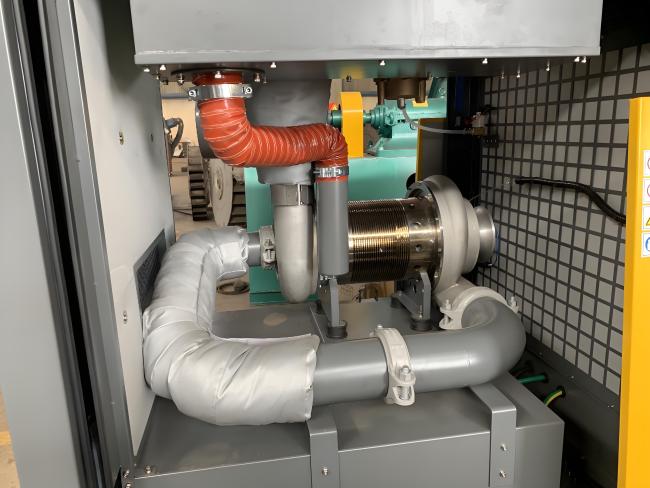

Product Show

Application Cases

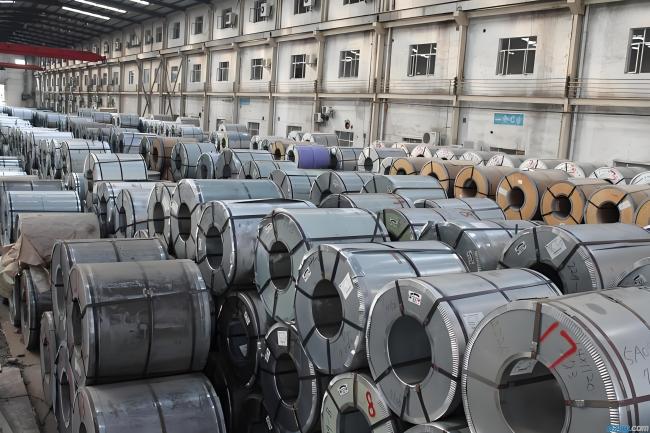

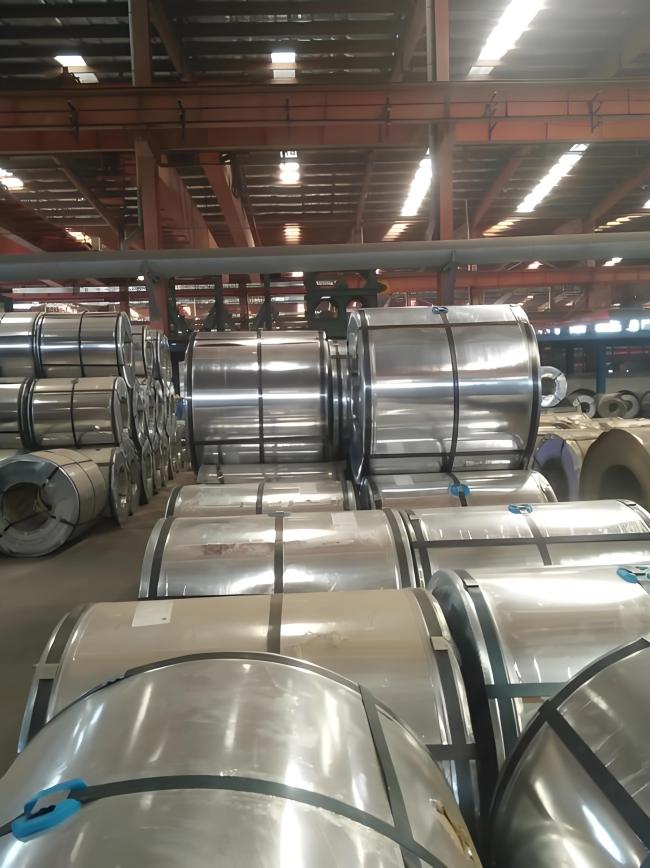

Iron and Steel Industry

Retrofitting Needs

For customer steel plants, promoting high-quality development, green energy-saving, and low-carbon initiatives by retrofitting high-energy-consuming existing equipment to reduce costs and increase efficiency.

Energy-Saving Solution

Through multi-dimensional evaluation, an efficient retrofitting plan has been formulated: replacing 1 Roots Blowers (232KW) with 1 Air Suspension Centrifugal Blower (150KW), achieving up to 34% energy savings, improving efficiency, reducing energy consumption, and delivering savings while in use.

Retrofitting Advantages

• High Efficiency & Energy Savings – Energy-saving rate of up to 34%, with a payback period within one year
• Improved Space Utilization – Eliminates unnecessary construction, requires no secondary plant modifications, and enables on-site utilization
• Convenient Maintenance – Lubrication-free system, maintenance-free, and avoids secondary pollution
• Smart "Expert" – Intelligent operation and maintenance platform featuring remote control, machine alerts, maintenance reminders, and other user-friendly services, reducing labor costs

Annual cost savings of approx. $100,000, with an electricity saving rate of up to 34%

Applications

• Wastewater Treatment Plant
• Cement Plant
• Steel Mill
• Chemical Powder Handling Plant
• Flue Gas Desulfurization Plant
• Electroplating Plant
• Sandblasting Facility
• Electronics Manufacturing Plant
• Food Processing Plant
• Pharmaceutical Manufacturing Plant
• Paper Mill
• Textile Mill
• Dyeing and Printing Plant

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
