AES256 Digital COFDM HD Wireless Transmitter AV HDMI SDI Input Sender Receiver 1080P
This compact and lightweight video transmitter utilizes COFDM modulation and H265/H264 video encoding technology, supporting up to 1080P/I @60fps. Featuring AES256 encryption for secure wireless video transmission, it enables Non-line-of-sight (NLOS) high-speed mobile communication up to 800km/h. Ideal for wireless mobile video transmission in challenging environments.
| Attribute | Value |
|---|---|
| Wireless Modulation | COFDM |
| Transmission Power | 1W(30dBm) or 2.5W(34dBm), 5W also available |
| Frequency | 160MHz~2700MHz |
| Encryption | AES256 |
| Bandwidth | 1MHz~8MHz |
| Wireless Code Stream | 0.5Mbps to 31.67Mbps |

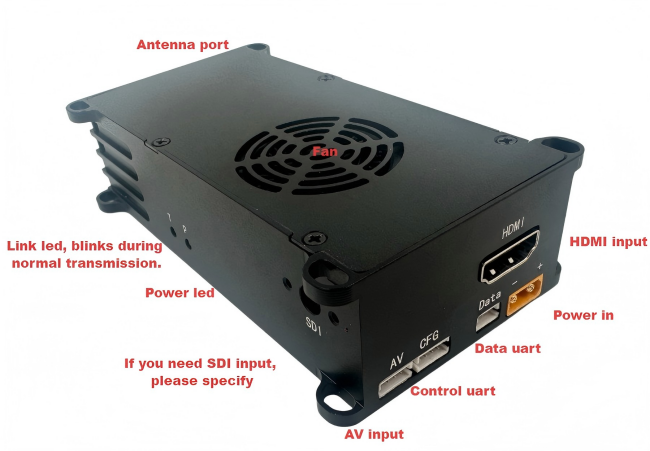

- HD Video Input: Standard HDMI interface
- SD Video Input: 4PIN 1.5mm pitch connector (CVBS Analog Audio Video Input)
- Data Transmission Serial Port: 3PIN 1.5mm pitch connector (default TTL3.3V level, RS232 optional)
- Configure Serial Port: 4PIN 1.5mm pitch connector, TTL3.3V
- Power Input: XT30PW-M connector (12V Power Supply)
- Antenna Port: SMA male
- Wireless Modulation: COFDM
- IFFT Mode: 2K
- Wireless Bandwidth: 1MHz~8MHz adjustable, 1KHz step
- FEC: 1/2, 2/3, 3/4, 5/6, 7/8
- Guard Interval: 1/32, 1/16, 1/8, 1/4
- Constellation: QPSK, 16QAM, 64QAM
- Wireless Code Stream: 0.5Mbps to 31.67Mbps
- Frequency: 300~860MHz (customizable), 1KHz step
- Transmission Power: 1W(30dBm) or 2.5W(34dBm), optional 5W/10W/20W
- Video Input: Default single-channel HD or SD (auto-detected)
- Supported Video Formats: 1080@60P, 1080@50P, 1080@30P, 720@60P, etc.
- Video Encoding: H265/H264
- Audio Input: HDMI embedded or analog
- Audio Format: AAC, 16bit, stereo, 32Kbps
- Encryption: AES256
- Size: 104.5*50*27mm (excluding connectors)
- Weight: Less than 140g
- Power Consumption: <15W (1W PA), <23W (2.5W PA)
- Latency: H265: 200~300ms; H264: 50~130ms
The transmitter frequency can be 160MHz~2700MHz, but our COFDM wireless receiver only supports 170~860MHz. For 1.2G or 1.4G, a frequency down converter is required at the receiver end.
Yes, our COFDM HD transmitters support HDMI, SDI, CVBS AV, IP Ethernet RJ45 and AHD video input. Please specify your preferred video type.
For UAV applications, the transmission range is about 50km when the UAV is at 300 meters altitude with receiver antennas positioned as high as possible.
Yes, it supports three working modes: standard DVB-T protocol, COFDM protocol with encryption/decryption, and COFDM low latency protocol with H264 encoding.
Our transmitters support one HDMI and one auxiliary CVBS audio/video input simultaneously. Currently, only one sound source is supported (selectable between HDMI or CVBS via parameter configuration).
