COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256
Price:
US$1,955~US$2,999
MOQ:
1 pc
Delivery Time:
7~14 working days
Brand:
Hincn
Product Description
COFDM Wireless Signal Transmitter and Receiver Video Systems with AES256
This COFDM wireless signal transmitter delivers high-power, long-range wireless video transmission. Built on COFDM modulation technology with H.264/H.265 compression and AES256 encryption, it ensures stable, reliable, real-time HD video transmission even in challenging environments with high-speed movement and urban building occlusion.
Key Features
- COFDM modulation and H.264/H.265 video compression
- Full HD resolution, 1080p/i @60fps
- Supports two channel videos simultaneously (optional)
- AES256 encryption for enhanced security
- Modular design with high integration
- Stable signal transfer in NLOS and high-speed motion conditions
- Adjustable working frequency, bandwidth, bitrates, and RF power
Product Specifications
| Product Name | COFDM Wireless Signal Transmitter and Receiver Video Systems with AES256 |
| Wireless Modulation | COFDM |
| Transmission Power | 10W (40dBm) or 20W (43dBm) |
| Frequency | 160MHz~2700MHz |
| Encryption | AES256 |
| Size | 180*136*38mm |
| Bandwidth | 1MHz~8MHz |
Product Overview
Designed for use with HD or SD cameras, this COFDM wireless signal transmitter provides superior miniature wireless video transmission for Point of View Cameras, UAV/UGV/Body Cams/Concealments, and sports cameras. Featuring HDMI or AV inputs with COFDM modulation technology and H.264/H.265 encoding, it delivers complete video and audio transmission in high-speed motion and NLOS (non-line of sight) conditions with low latency.
The HCT531 COFDM wireless signal transmitter provides up to 10W or 20W of power in a compact metal case weighing less than 910 grams, ensuring long-range, reliable HD video transmission.
Technical Specifications
| HD Video Input | HDMI Type-A connector |
| Composite Video Input | 3.5mm earphone connector |
| UART Data | YC8-3 connector, TTL3.3V by default (optional RS232) |
| TTL UART Control | YC8-4 connector, TTL 3.3V |
| Power Input | GX12-2 connector |
| RF Output | TNC female |

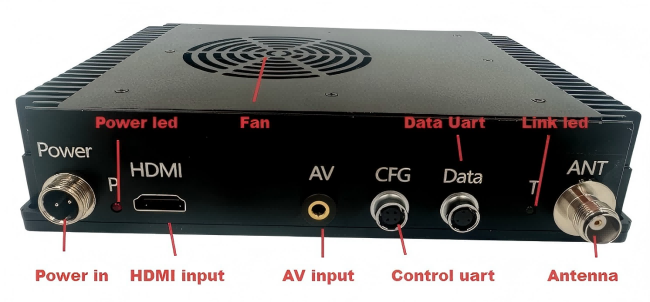

COFDM Wireless Signal Transmitter Interfaces

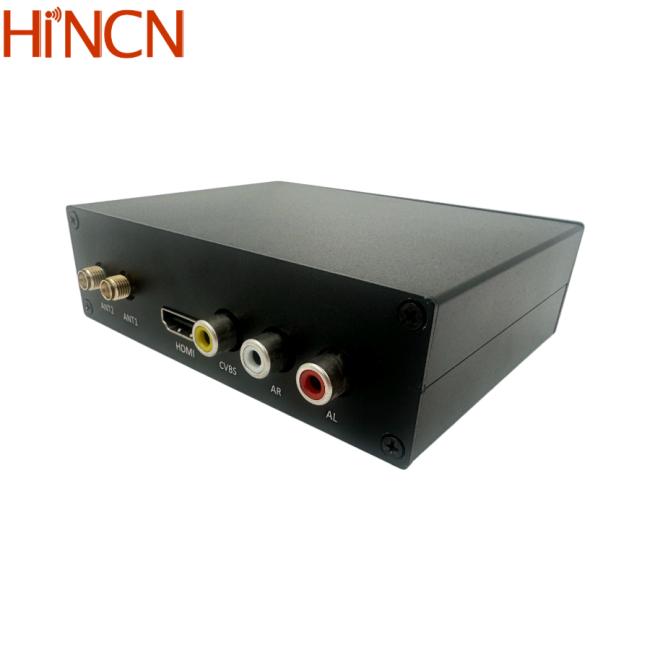

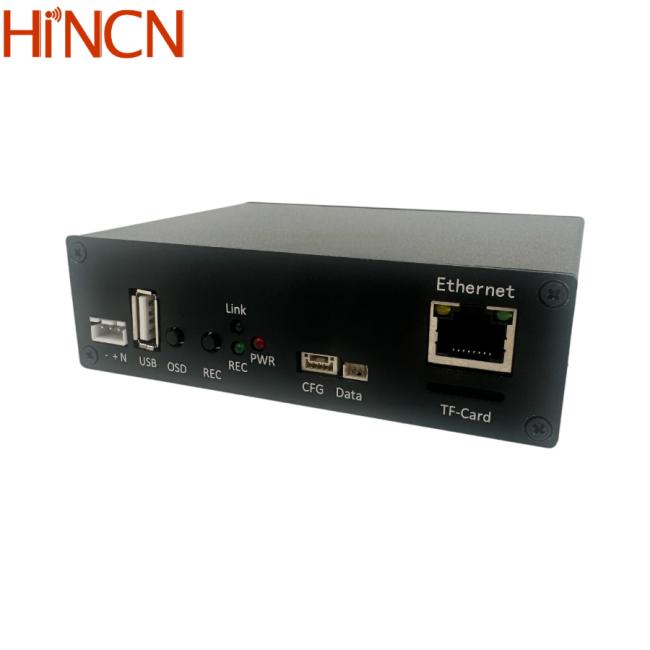

Paired COFDM Video Receiver
Frequently Asked Questions
Does this COFDM wireless signal transmitter support SDI video input?
Yes, our COFDM wireless video transmitters support HDMI, SDI, CVBS AV, IP Ethernet RJ45 and AHD video input.
What's the max distance for the 10W PA transmitter?
For UAV applications, the transmission range is about 100km when the UAV is at approximately 500 meters altitude with receiver antennas positioned as high as possible.
