0808 15°Angle Series Mini Wall Washer Strip IP67 Waterproof Wall Washing Light
Features

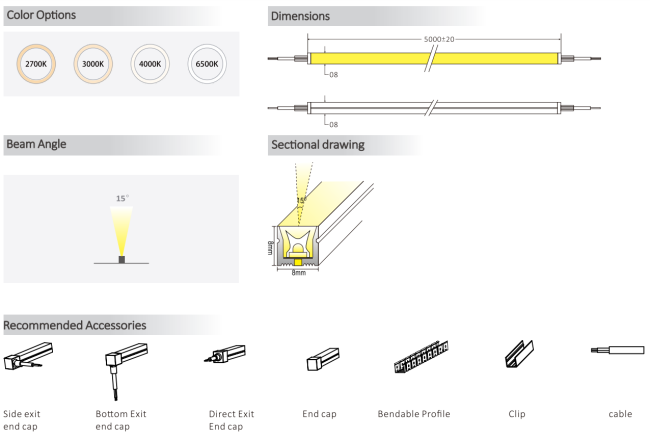

● 8x8mm neon with built-in 15°beam angle. Both the LED and neon tube incorporate optical design, delivering a 15°light emission angle.
● Superior wall washing performance - High coverage with uniform light distribution, no color deviation, and smooth, soft illumination.
● Single-end power supply - Supports connections up to 5meters in length.
● Seamless silicone construction - Crafted with integrated extrusion molding technology using food-grade silicone material.
● Waterproof grade IP67
● 5 years warranty
Technologies: ON/OFF
Application:
This product is suitable for use in home decoration, hotels, shopping malls, clothing stores, advertising signs, oil painting decoration,
decorative lighting, etc
Product Specifications
| P/N | LED Quantity | CCT K |
CRI | LEDs/m | LUMENS (lm/m) | Vf (V) | Current (mA/M) | Power (W/M) | Cut Length (MM) | Max Run (M) |
| RL-FV2406I20283506-X0X-FWD0808 | 2835 | 2700 | 80/90 | 60 | 420 | 24 | 250 | 6 | 50 | 5 |
| 3000 | 420 | |||||||||
| 4000 | 460 | |||||||||
| 6500 | 460 |
Other Specifications
| Protection grade | IP67 |
| Working temperature(°c) | -25~+60 |
| Storage environment temperature(°c) | -25~+70 |
| Standard length | 5 |
| Maximum cascade length(m) | 5 |
| weight | / |
Remark
-
The test environment temperature is 25±2℃;
-
The above data are typical values, the actual parameters of the product may be different from the typical data; the data is subject to change without notice;
-
The above “/” means that this parameter is not required for the time being.
Applied Standards
(CE, RoHS, cULus, ETLus, CB, Reach, UKCA)
other features
- 1. Both the LED and neon tubeincorporate optical design, delivering a 15°light emission angle
- 2. good wall washing effect, high irradiation intensity, uniform light, no color difference,
- 3. Waterproof grade IP67
