500x240mm Flexible LED Sheet For Ceiling Soft Film Lighting 2700K 3000K 4000K 6500K RGBW
Features:
500x240mm flexible LED sheet, luminous efficacy 20lm/W, can be cut to size

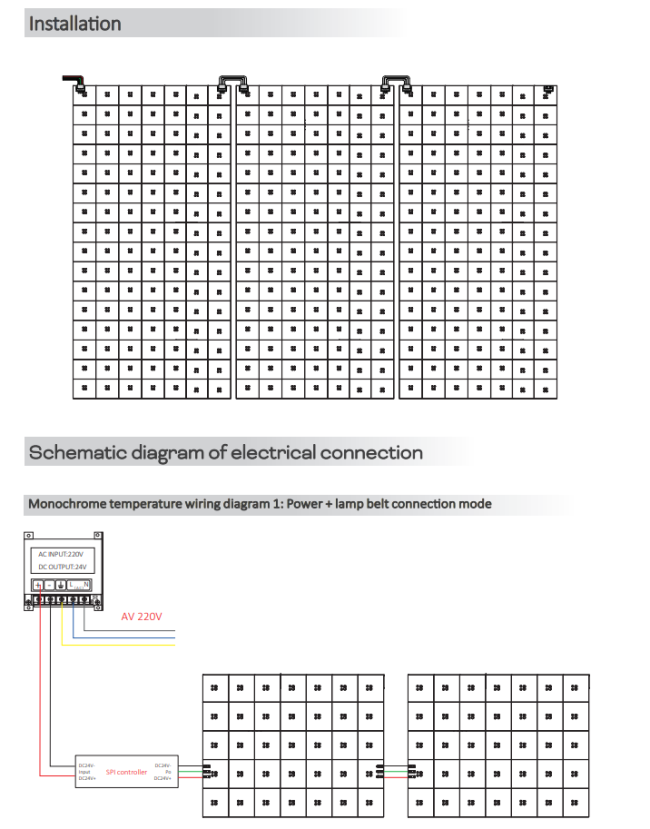

Uses 3M 300LSE SM butt connectors for easy installation
Suitable for ceiling soft film, advertisement light boxes, cover film height 50mm with no light spots
ERP color separation, single BIN shipment, high cost-performance ratio
This product has passed CE, CB, RoHS, UL, ETL certifications
Product Description
| LED Quantity |
Size (SM) |
CRI | LED (SM) |
LUMENS (lm/m) |
Current (mA/M) |
Power (W/M) |
Cut Length (MM) |
CCT |
| PCS | 500x240 | 24 | 128 | 28 | 1.47 | 35 | 30 | 2700-6500K |
Other Specifications
| Protection grade | IP20 |
| Working temperature(°C) | -25~+60 |
| Storage environment temperature (°C) | -25~+70 |
| Standard length | 5 |
| Maximum cascade length(m) | 5 |
| weight | / |
Remark
-
The test environment temperature is 25±2°C;
-
The above data are typical values, the actual parameters of the product may be different from the typical data; the data is subject to change without notice;
-
The above "/" means that this parameter is not required for the time being.
