Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V
Product description:
● Using silicone extrusion process, 04*08Mini size design
● Uniform light emission, good appearance consistency
● Anti-yellowing, high temperature resistance, corrosion resistance, weak acid and alkali resistance
● Good flexibility, small size, light weight, easy installation
● Food-grade, environmentally friendly silicone material.
● Waterproof grade IP67
● 3 years warranty
Features:
1. Color-rich (Monochrome/RGB)
2. Small size, uniform illumination, excels in contour outlining
3. High IP rating: IP65/67 optional
4. High efficacy, long lifespan, high reliability, excellent color consistency
Technologies: ON/OFF
Application:
·This product is suitable for hotels, KTVs, homes, cabinets, courtyards, etc., for contouring, atmosphere lighting, decorative lighting and other purposes.
|
Color Options:
|
Dimensions
|
|
Beam Angle
|
Sectional drawing
|
Recommended Accessories
Side exit Bottom Exit Direct Exit End cap Bendable Profile Clip cable
end cap end cap End cap
Optical parameters
| P/N | LED Quantity |
T | CRI | LED (8M) |
LUMENS (Im/m) | Vf. (V.) |
Current (mAM) |
Power W/M) |
Cut Length (MM) |
Max Run ( M) |
| RL-FV2404180221906-XXX-FWS0408 | 2219 | 2700 | 80/90 | 180 | 120 | 24V | 250 | 6 | 33.3 | 5 |
| 3000 | 120 | |||||||||
| 4000 | 130 | |||||||||
| RL-FV2404168283506-XXX-FWSO408 | 2835 | 2700 | 80/90 | 168 | 130 | 24V | 250 | 6 | 35.7 | 5 |
| 3000 | 130 | |||||||||
| 4000 | 140 |
Other Specifications
|
Protection grade |
IP67 |
|
Working temperature(℃) |
-25~+60 |
|
Standardlength(℃) |
-25~+70 |
|
Maximum cascade length(m) |
5 |
|
Maximum cascade length(m) |
5 |
|
weight |
/ |
Remark
· The test environment temperature is 25±2℃;
· The above data are typical values,the actual parameters of the product may be different from the typical data;the data is subject to change without notice;
· The above"/"means that this parameter is not required for the time being.
Applied Standards
Installation

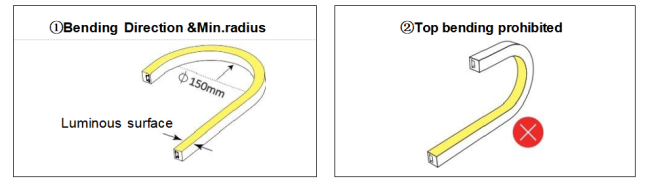

Note:Due to the different types and attributes of neon lights, please refer to the, line marks for the bending radius

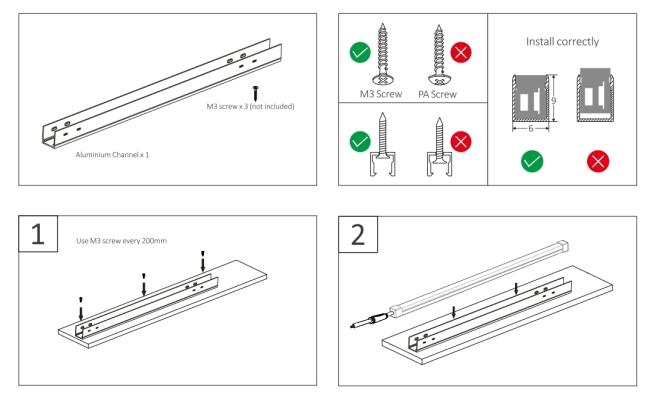

Mounting with aluminium profiles
Install with the screws provided. Do not use screws of other types or sizes that do not meet requirements.
