Zhaga Round Series DC LED Module IP20 Protection Grade 2700/3000/4000/5000/5700/6500K
Price:
Contact us to get best price
MOQ:
100M
Delivery Time:
2-3weeks
Brand:
RELIGHT
Product Description
- High efficiency up to 190lm/W
- Various CCT available: 2700/3000/4000/5000/5700/6500K
- CRI:80/90 options
- Macadam 3 steps color bin

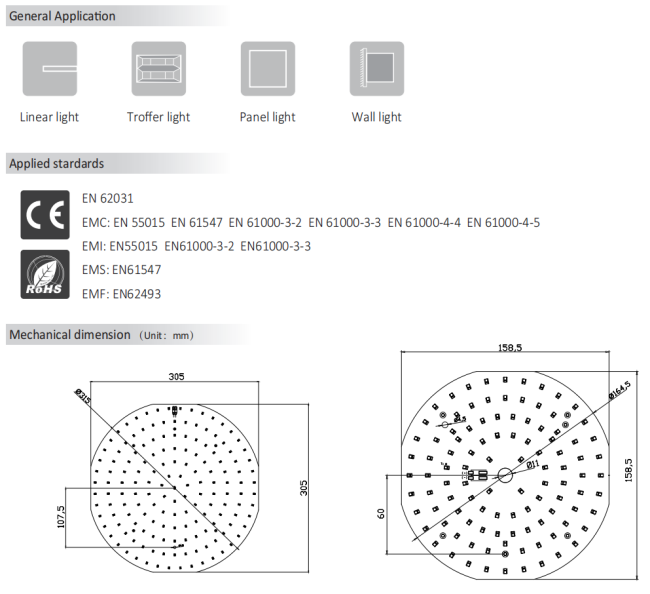

- Solutions for Down light/Ceiling light
-
Poke in wiring connectors
Selection guide
| P/N | Size | Voltage -Vdc | Current -mA | Power -W | Flux | Efficiency | CCT | CRI | |||
| mm | Typ | Max | Typ | Max | Typ | Max | Lm | Lm/W | K | - | |
| RL-CMD160A1308H017-827 | D160 | 34.5 | 37.1 | 500 | 1000 | 17.25 | 37.1 | 3100 | 180 | 2700 | 80 |
| RL-CMD160A1308H017-830 | D160 | 34.5 | 37.1 | 500 | 1000 | 17.25 | 37.1 | 3277 | 190 | 3000 | 80 |
| RL-CMD160A1308H017-840 | D160 | 34.5 | 37.1 | 500 | 1000 | 17.25 | 37.1 | 3450 | 200 | 4000 | 80 |
| RL-CMD160A1308H017-850 | D160 | 34.5 | 37.1 | 500 | 1000 | 17.25 | 37.1 | 3450 | 200 | 5000 | 80 |
| RL-CMD160A1308H017-865 | D160 | 34.5 | 37.1 | 500 | 1000 | 17.25 | 37.1 | 3450 | 200 | 6500 | 80 |
| RL-CMD160A1308H017-927 | D160 | 34.5 | 37.1 | 500 | 1000 | 17.25 | 37.1 | 3100 | 165 | 2700 | 80 |
| RL-CMD160A1308H017-930 | D160 | 34.5 | 37.1 | 500 | 1000 | 17.25 | 37.1 | 3018 | 175 | 3000 | 80 |
| RL-CMD160A1308H017-940 | D160 | 34.5 | 37.1 | 500 | 1000 | 17.25 | 37.1 | 3191 | 185 | 4000 | 80 |
| RL-CMD160A1308H017-950 | D160 | 34.5 | 37.1 | 500 | 1000 | 17.25 | 37.1 | 3191 | 185 | 5000 | 80 |
| RL-CMD160A1308H017-965 | D160 | 34.5 | 37.1 | 500 | 1000 | 17.25 | 37.1 | 3191 | 185 | 6500 | 80 |
| RL-CMD305A1312H026-827 | D305 | 34.5 | 37.1 | 750 | 1500 | 26 | 55 | 4680 | 180 | 2700 | 80 |
| RL-CMD305A1312H026-830 | D305 | 34.5 | 37.1 | 750 | 1500 | 26 | 55 | 4940 | 190 | 3000 | 80 |
| RL-CMD305A1312H026-840 | D305 | 34.5 | 37.1 | 750 | 1500 | 26 | 55 | 5200 | 200 | 4000 | 80 |
| RL-CMD305A1312H026-850 | D305 | 34.5 | 37.1 | 750 | 1500 | 26 | 55 | 5200 | 200 | 5000 | 80 |
| RL-CMD305A1312H026-865 | D305 | 34.5 | 37.1 | 750 | 1500 | 26 | 55 | 5200 | 200 | 6500 | 80 |
| RL-CMD305A1312H026-927 | D305 | 34.5 | 37.1 | 750 | 1500 | 26 | 55 | 4290 | 165 | 2700 | 80 |
| RL-CMD305A1312H026-927 | D305 | 34.5 | 37.1 | 750 | 1500 | 26 | 55 | 4550 | 175 | 3000 | 80 |
| RL-CMD305A1312H026-927 | D305 | 34.5 | 37.1 | 750 | 1500 | 26 | 55 | 4810 | 185 | 4000 | 80 |
| RL-CMD305A1312H026-927 | D305 | 34.5 | 37.1 | 750 | 1500 | 26 | 55 | 4810 | 185 | 5000 | 80 |
| RL-CMD305A1312H026-927 | D305 | 34.5 | 37.1 | 750 | 1500 | 26 | 55 | 4810 | 185 | 6500 | 80 |
Note:1-Various CCT available(2700-6500K)；RL-XXXXXXXXXXXXXXX-840X(8-80CRI;40-4000K CCT)
2-Typical Optical-electronic parameters above @ Ta=25℃
General information
| Input | SELV (depends on the external driver spec) |
| Rated power | Typical power(±10% tolerance) |
| Protection grade | IP20 |
| Storage temperature | -30-85℃ |
| Operation temperature | -30-80℃(Ts of led components) |
| Beam Angle | 120 deg |
| Connectors | Poke-in Type |
Module temperatures
* Nominal value at which typical performance is specified
** Value at which life time is specified
*** Maximum value for safe operation, do not operate above this value
Safety Information
1. The LED module and all its components shall not be subjected to mechanical stress.
2. Correct electrical polarity, or not module may be damaged.
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
8. It is better to use the AC led module with safety cover.
9. Modules may be hot to the touch. Use caution when handling.
2. Correct electrical polarity, or not module may be damaged.
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
8. It is better to use the AC led module with safety cover.
9. Modules may be hot to the touch. Use caution when handling.
