500x247mm Dual-color Flexible LED Sheet For Ceiling Soft Film Lighting SPI RGBW
Features:

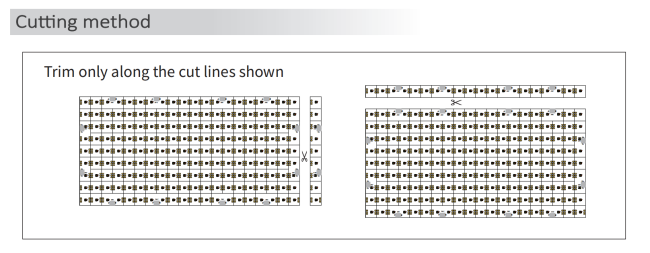

500x247mm flexible LED sheet, luminous efficacy 110lm/w, can be cut to size
Uses 3M 300LSE SM butt connectors for easyinstallation
Suitable for ceiling soft film, advertisement light boxes, cover film
height 50mm with no light spots
Adjustable color temperature
ERP color separation, single BIN shipment, high cost-performance ratio
Product Description
| LED | Size (SM) |
CRI | LED (SM) |
LUMENS (lm/m) |
Current (mA/M) |
Power (W/M) |
Cut Length (MM) |
CCT |
Plate spacing (mm) |
Maximum Cascade |
| PCS | 500x247 | 80 | 180 | 2200 | 833 | 20 | 25x27.4 | 2700-6500K | 5 | 4 |
Remark
- The maximum cascade count refers to the maximum number of cascades under the condition of single-ended power supply.
Other Specifications
| Protection grade | IP20 |
| Working temperature(°C) | -25~+40 |
| Storage environment temperature (°C) | -25~+70 |
| Standard length | 5 |
| Maximum cascade length(m) | 25x27.4 |
| weight | / |
Remark
-
The test environment temperature is 25±2°C;
-
The above data are typical values, the actual parameters of the product may be different from the typical data; the data is subject to change without notice;
-
The above "/" means that this parameter is not required for the time being.
