100W Output Universal 100-277V Input IP65 Rated 5-in-1 Dimming LED Transformer for Dimmable LED Driver
Price:
The price is negotiable
MOQ:
1pcs
Delivery Time:
20-25 days
Brand:
KSPOWER
Product Description
2-Way 12V/24V/36V/48V 50W(100W) Universal 5-in-1 Dimming Class 2 LED Transformer

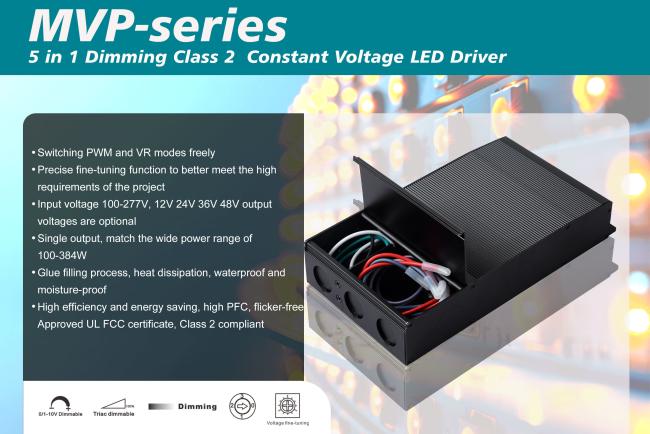

KSPOWER MVP Series with universal AC input of 100-277V and high power-factor efficiency, this 50W×2-way CV LED driver delivers superior dimming performance. The patented aluminum case protects internal components while providing stable output across 12V/24V/36V/48V options. Supports multiple dimming protocols including MLV, ELV, Triac, Phase-cut, 0-10V, and PWM for wide compatibility with modern control systems. UL Class 2 certified and NEMA 3R rated for both exterior and interior LED lighting applications.
Key Features

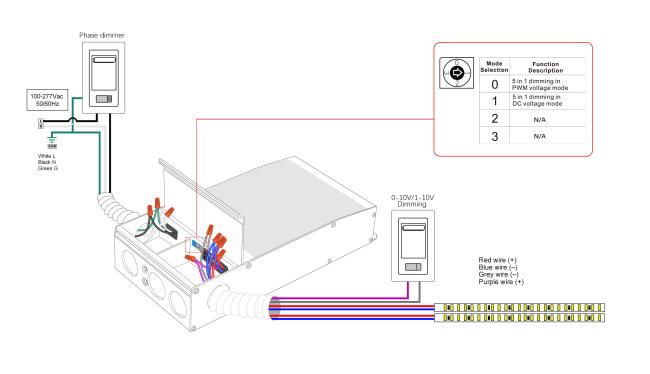

- Switching PWM and DC voltage freely selectable
- PWM or Voltage Reduction output selectable
- 2-Way universal dimming functions optional
- Super compact aluminum case design
- UL/cUL CE Class 2 CLASS P FCC RoHS LPS certified
- NEMA 3R rated for indoor or outdoor use
- Switch to color temperature LED strips with 100%-0.01% dimming flicker-free
- Auto-reset protection for input/output overvoltage, overcurrent, overtemperature, over power, and short circuit conditions
Electrical Specifications
| MODEL | KS-12100a-M# | KS-24100a-M# | KS-36100a-M# | KS-48100a-M# |
|---|---|---|---|---|
| Output Voltage | 12V | 24V | 36V | 48V |
| Rated current x Channel | 4.16A x 2 | 2.08A x 2 | 1.38A x 2 | 1.04A x 2 |
| Rated power | 100W | 100W | 100W | 100W |
| Ripple & Noise (max.) | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p |
| Voltage accuracy | ±2.0% | ±2.0% | ±2.0% | ±2.0% |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Start, rise time | 1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC | |||
| Hold time | 10ms/115VAC, 230VAC | |||
| Voltage range | 100 ~ 277VAC | |||
| Frequency range | 47 ~ 63Hz | |||
| Power factor | PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC (Full load) | |||
| Total harmonic distortion | THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC) | |||
| Efficiency Vin: 115VAC | ≧90.55% | ≧90.78% | ≧91.28% | ≧91.78% |
| Efficiency Vin: 230VAC | ≧91.38% | ≧91.56% | ≧92.06% | ≧92.56% |
| AC current | 1.25A | |||
| Inrush current | Cold start 75A(width=350us measured at 50% l peak)/230Vac | |||
| Leakage current | < 1 mA | |||
| No load/standby power consumption | < 3.6W | |||
| Over current protection | 95 ~ 110% constant current limit, automatic recovery after load abnormal condition | |||
| Short circuit protection | Burp mode, automatic recovery after load abnormal conditions | |||
| Over voltage protection | 13 ~ 16V | 26 ~ 32V | 39 ~ 47V | 52 ~ 63V |
| Over temperature protection | Turn off output voltage, restart and resume | |||
| Working Temperature | T case=-40 ~ +50℃ | |||
| Max. Case Temperature | T case=+90℃ | |||
| Working Humidity | 20 ~ 95% RH, non-condensing | |||
| Storage Temp., Humidity | -40 ~ +90℃, 10 ~ 95% RH | |||
| Temp. Coefficient | ±0.03%/℃ (0 ~60℃) | |||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes | |||
| Safety standards | UL8750+UL1310 | |||
| Withstand voltage | I/P-O/P:1.88KVac | |||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | |||
| EMC EMISSION | Confirms to FCC | |||
Technical Specifications
| Dimming Style | Series | Power | Input voltage | Output voltage& Output current |
Size | |||
| 12V | 24V | 36V | 48V | |||||
| 5 in 1 dimming | MVP | 100W | 100~277V 50/60Hz |
4.16A*2 | 2.08A*2 | 1.38A*2 | 1.04A*2 | 199*103*40mm |
| 180W | 100~277V 50/60Hz |
5A*3 | / | / | / | 216*113*40mm | ||
| 192W | 100~277V 50/60Hz |
/ | 4A*2 | 2.67A*2 | 2A*2 | 216*113*40mm | ||
| 240W | 100~277V 50/60Hz |
5A*4 | / | / | / | 248*123*40mm | ||
| 288W | 100~277V 50/60Hz |
/ | 4A*3 | 2.67A*3 | 2A*3 | 248*123*40mm | ||
| 300W | 100~277V 50/60Hz |
5A*5 | / | / | / | 248*123*40mm | ||
| 384W | 100~277V 50/60Hz |
/ | 4A*4 | 2.67A*4 | 2A*4 | 248*123*40mm | ||
Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
FQA
Q: What dimming modes does this LED driver support?
A: 5-in-1 dimming including MLV, ELV, Triac phase-cut, 0-10V and PWM. You can switch freely between PWM and voltage reduction output.
Q: Can it work with CCT tunable LED strips?
A: Yes. It realizes flicker-free deep dimming from 100% to 0.01%, perfectly compatible with dual-channel CCT LED strips.
Q: What does 2-way dual channel mean?
A: Equipped with two independent output channels, you can control two groups of LED lights separately.
Q: What DC output voltages are available for the 100W version?
A: 12V, 24V, 36V, 48V DC. We also provide high-power models ranging from 180W to 384W.
Q: What is the AC input voltage range?
A: 100-277VAC, 47-63Hz, applicable for power grids in North America, Europe and most regions worldwide.
Q: Is this LED driver allowed for outdoor installation?
A: It is NEMA 3R rated, suitable for indoor dry areas and covered damp outdoor spaces, not for fully exposed rainy environments.
Q: What are the main application scenarios?
A: Retail store lighting, hotel lighting, under-cabinet lights, cove lighting, covered landscape lighting and smart home low-voltage lighting systems.
Q: What safety protections does it have?
A: Overvoltage, overcurrent, overtemperature, overpower and short-circuit protection. It will auto-reset after faults are cleared.
Q: What is the operating temperature range?
A: -40℃ to +50℃, stable operation in both low-temperature and high-temperature environments.
Q: Does it hold certifications for the US and Canadian markets?
A: Yes. It has UL/cUL Class 2, FCC, RoHS and LPS certifications, compliant with UL8750 and UL1310 standards.
Q: Do you offer OEM & ODM customization services?
A: Sure. Custom labels, packaging and casings are all supported.
Q: How high is the no-load standby power consumption?
A: Less than 3.6W, energy efficient for long standby hours.
A: 5-in-1 dimming including MLV, ELV, Triac phase-cut, 0-10V and PWM. You can switch freely between PWM and voltage reduction output.
Q: Can it work with CCT tunable LED strips?
A: Yes. It realizes flicker-free deep dimming from 100% to 0.01%, perfectly compatible with dual-channel CCT LED strips.
Q: What does 2-way dual channel mean?
A: Equipped with two independent output channels, you can control two groups of LED lights separately.
Q: What DC output voltages are available for the 100W version?
A: 12V, 24V, 36V, 48V DC. We also provide high-power models ranging from 180W to 384W.
Q: What is the AC input voltage range?
A: 100-277VAC, 47-63Hz, applicable for power grids in North America, Europe and most regions worldwide.
Q: Is this LED driver allowed for outdoor installation?
A: It is NEMA 3R rated, suitable for indoor dry areas and covered damp outdoor spaces, not for fully exposed rainy environments.
Q: What are the main application scenarios?
A: Retail store lighting, hotel lighting, under-cabinet lights, cove lighting, covered landscape lighting and smart home low-voltage lighting systems.
Q: What safety protections does it have?
A: Overvoltage, overcurrent, overtemperature, overpower and short-circuit protection. It will auto-reset after faults are cleared.
Q: What is the operating temperature range?
A: -40℃ to +50℃, stable operation in both low-temperature and high-temperature environments.
Q: Does it hold certifications for the US and Canadian markets?
A: Yes. It has UL/cUL Class 2, FCC, RoHS and LPS certifications, compliant with UL8750 and UL1310 standards.
Q: Do you offer OEM & ODM customization services?
A: Sure. Custom labels, packaging and casings are all supported.
Q: How high is the no-load standby power consumption?
A: Less than 3.6W, energy efficient for long standby hours.
Why choose us?
1.5-in-1 All-Round Dimming Compatibility
Supports five mainstream dimming signals, freely switchable output modes. Zero flicker deep dimming fits CCT adjustable light strips and various smart lighting control systems.
2. Dual Independent Channels & Multiple Voltage Options
Two separate output channels support partition lighting control. Optional 12V/24V/36V/48V voltage specifications; power lineup covers 100W-384W to meet residential and commercial project demands.
3. Wide Global Input Voltage & Excellent Energy Efficiency
100-277V universal AC input adapts to global power grids. High power factor and efficiency, low standby power loss, stable output amid voltage fluctuations.
4. Compact Aluminum Housing, Indoor & Covered Outdoor Available
Small aluminum shell features outstanding heat dissipation. NEMA 3R certified, adaptable to temperatures from -40℃ to +50℃ for dry indoor and damp covered outdoor use.
5. Full Auto-Reset Safety Protection & Authorized Certifications
Complete fault protection with automatic recovery. UL/cUL Class 2, FCC, RoHS certified, fully meets North American electrical safety codes.
6. Rigorous Quality & Environmental Adaptability Test
Passes vibration, voltage resistance and insulation tests; low leakage current, runs steadily under 20%-95% non-condensing humidity for long-term commercial use.
7. Flexible Customized Service
Custom logos, packaging and housings are available for lighting brands, distributors and engineering contractors.
Supports five mainstream dimming signals, freely switchable output modes. Zero flicker deep dimming fits CCT adjustable light strips and various smart lighting control systems.
2. Dual Independent Channels & Multiple Voltage Options
Two separate output channels support partition lighting control. Optional 12V/24V/36V/48V voltage specifications; power lineup covers 100W-384W to meet residential and commercial project demands.
3. Wide Global Input Voltage & Excellent Energy Efficiency
100-277V universal AC input adapts to global power grids. High power factor and efficiency, low standby power loss, stable output amid voltage fluctuations.
4. Compact Aluminum Housing, Indoor & Covered Outdoor Available
Small aluminum shell features outstanding heat dissipation. NEMA 3R certified, adaptable to temperatures from -40℃ to +50℃ for dry indoor and damp covered outdoor use.
5. Full Auto-Reset Safety Protection & Authorized Certifications
Complete fault protection with automatic recovery. UL/cUL Class 2, FCC, RoHS certified, fully meets North American electrical safety codes.
6. Rigorous Quality & Environmental Adaptability Test
Passes vibration, voltage resistance and insulation tests; low leakage current, runs steadily under 20%-95% non-condensing humidity for long-term commercial use.
7. Flexible Customized Service
Custom logos, packaging and housings are available for lighting brands, distributors and engineering contractors.
