192W 5-in-1 Dimmable LED Transformer with IP65 Rating for Universal Phase Dimming Applications
Price:
$59.6-63.8/pieces
MOQ:
1pcs
Delivery Time:
20-25 days
Brand:
KSPOWER
Product Description
24V/36V/48V 2x96W(192W) Class 2 Universal Phase Dimming LED Transformer
KSPOWER's MP Series combines advanced dimming technology with rugged construction to deliver an industry-leading LED driver solution. With 5-in-1 dimming support—including Triac, ELV, MLV, 0-10V, and PWM/VR—the 2-way 96W design enables maximum flexibility for premium lighting installations. The constant-voltage output options (24V/36V/48V) make it ideal for LED strips, landscape lights, and architectural signage. High power-factor correction (PFC ≥ 0.95), NEMA 3R protection, and UL Class 2 Class P compliance ensure exceptional safety and performance.
Key Features
- PWM or Voltage Reduction output Selectable

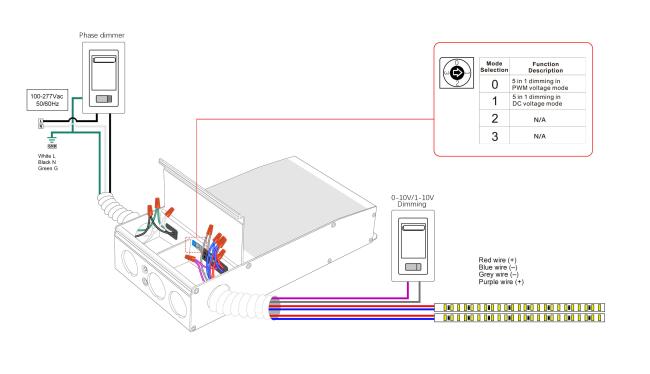

- 2-Ways Universal Dimming Functions optional:
- 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
- Triac dimming: TRIAC/phase, ELV, MLV dimming
- 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
- Non-dimming
- Super compact Aluminum case
- UL/cUL CE Class 2 CLASS P FCC RoHS LPS certified
- NEMA 3R rated for Indoor or Outdoor Use
- Switch to dual-color temperature LED Strips with 100%-0.01% dimming flicker-free
- Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
Specifications
| Model | KS-24192a-M# | KS-36192a-M# | KS-48192a-M# |
|---|---|---|---|
| Output Voltage | 24V | 36V | 48V |
| Rated current×Channel | 4.0A×2 | 2.67A×2 | 2.0A×2 |
| Rated Power | 192W | 192W | 192W |
| Ripple&Noise(Max) | 250mVp-p | 250mVp-p | 250mVp-p |
| Voltage Accuracy | ±2.0% | ±2.0% | ±2.0% |
| Linear Adjustment Rate | ±0.5% | ±0.5% | ±0.5% |
| Load Adjustment Rate | ±0.5% | ±0.5% | ±0.5% |
| Start Rise Time | 1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC | ||
| Hold Time | 10ms/115VAC, 230VAC | ||
| Input Voltage Range | 100 ~ 277VAC | ||
| Frequency Range | 47 ~ 63Hz | ||
| Power Factor | PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, Full load | ||
| Total Harmonic Distortion | THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC) | ||
| Efficiency Vin:115VAC | ≧91.56% | ≧92.06% | ≧92.56% |
| Efficiency Vin:230VAC | ≧94.63% | ≧95.13% | ≧95.63% |
| AC Current | 2.35A | ||
| Inrush Current | Cold start 75A(width=350us measured at 50% l peak)/230Vac | ||
| Leakage Current | < 1 mA | ||
| No Load/Standby Power Consumption | < 4.5W | ||
| Over Current Protection | 95~110% Constant current limit, load abnormal condition can be removed after automatic recovery | ||
| Short Circuit Protection | Burp mode, load abnormal conditions can be removed after automatic recovery | ||
| Over Voltage Protection | 26~32V | 39~47V | 52~63V |
| Over Temperature Protection | Turn off the output voltage, restart and resume | ||
| Working Temperature | T case=-40 ~ +50℃ | ||
| Max Case Temperature | T case=+90℃ | ||
| Working Humidity | 20 ~ 95% RH, non-condensing | ||
| Storage Temperature,Humidity | -40 ~ +90℃, 10 ~ 95% RH | ||
| Temperature Coefficient | ±0.03%/℃ (0 ~60℃) | ||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes | ||
| Safety Standard | UL8750 & UL1310 | ||
| Withstand Voltage | I/P-O/P.1.88KVac | ||
| Isolation Resistance | I/P-O/P.100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | Confirms to FCC | ||
Technical Specifications
| Dimming Style | Series | Power | Input voltage | Output voltage& Output current |
Size | |||
| 12V | 24V | 36V | 48V | |||||
| 5 in 1 dimming | MVP | 40W | 100~277V 50/60Hz |
3.3A | 2.5A | 1.1A | 0.83A | 199*103*40mm |
| 60W | 100~277V 50/60Hz |
5A | 2.5A | 1.67A | 1.25A | 199*103*40mm | ||
| 80W | 100~277V 50/60Hz |
6.67A | 3.33A | 2.22A | 1.67A | 199*103*40mm | ||
| 96W | 100~277V 50/60Hz |
8A | 4A | 2.66A | 2A | 199*103*40mm | ||
| 100W | 100~277V 50/60Hz |
8.33A | 4.16A | 2.78A | 2.08A | 199*103*40mm | ||
| 120W | 100~277V 50/60Hz |
10A | 5A | 3.33A | 2.5A | 216*113*40mm | ||
| 150W | 100~277V 50/60Hz |
12.5A | 6.25A | 4.16A | 3.13A | 216*113*40mm | ||
| 200W | 100~277V 50/60Hz |
16.67A | 8.33A | 5.55A | 4.16A | 216*113*40mm | ||
| 240W | 100~277V 50/60Hz |
20A | 10A | 6.66A | 5A | 248*123*40mm | ||
| 300W | 100~277V 50/60Hz |
25A | 12.5A | 8.33A | 6.25A | 248*123*40mm | ||
| 360W | 100~277V 50/60Hz |
30A | 15A | 10A | 7.5A | 248*123*40mm | ||
| 400W | 100~277V 50/60Hz |
/ | 16.67A | 11.11A | 8.33A | 248*123*40mm | ||
Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
