288W Output Power 5-in-1 Dimming LED Driver with IP65 Rating for Universal Lighting Applications
Price:
$61.9-65.6/pieces
MOQ:
1pcs
Delivery Time:
20-25 days
Brand:
KSPOWER
Product Description

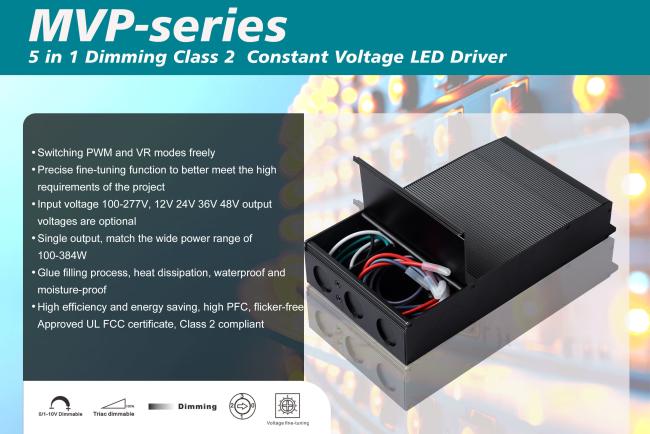

24V/36V/48V 3x96W(288W) Class 2 Universal 5-in-1 Dimming LED Driver
The KSPOWER MVP Series 5-in-1 dimmable LED driver delivers exceptional versatility with its 3-way 96W (288W total) multi-channel design, universal 100-277VAC input, and constant-voltage output options of 24V, 36V, and 48V. Housed in a patented low-profile aluminum enclosure in black finish, this driver supports MLV/ELV, Triac/Phase-cut, 0-10V, and PWM/VR dimming technologies. With a high PFC rating of up to 0.95, NEMA 3R weather protection, and UL cUL Class 2 Class P certifications, it is engineered for indoor or outdoor LED strip, signage, billboard, and landscape lighting applications.
Key Features

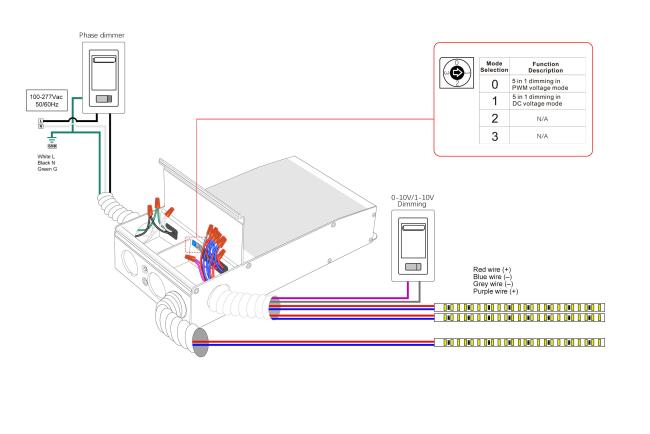

- PWM or Voltage Reduction output Selectable
- 3-Ways Universal Dimming Functions optional:
- 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
- Triac dimming: TRIAC/phase, ELV, MLV dimming
- 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
- Non-dimming
- Super compact Aluminum case
- UL/cUL CE Class 2 CLASS P FCC RoHS LPS certified
- NEMA 3R rated for Indoor or Outdoor Use
- Switch to dual-color temperature LED Strips with 100%-0.01% dimming flicker-free
- Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
Specifications
| Model | KS-24288a-M# | KS-36288a-M# | KS-48288a-M# |
|---|---|---|---|
| Output Voltage | 24V | 36V | 48V |
| Rated current *Channel | 4.0A*3 | 2.67A*3 | 2.0A*3 |
| Rated Power | 288W | 288W | 288W |
| Ripple & Noise(Max) | 250mVp-p | 250mVp-p | 250mVp-p |
| Voltage Accuracy | ±2.0% | ±2.0% | ±2.0% |
| Linear Adjustment Rate | ±0.5% | ±0.5% | ±0.5% |
| Load Adjustment Rate | ±0.5% | ±0.5% | ±0.5% |
| Start Rise Time | 1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC | ||
| Hold Time | 10ms/115VAC, 230VAC | ||
| Input Voltage Range | 100 ~ 277VAC | ||
| Frequency Range | 47 ~ 63Hz | ||
| Power Factor | PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, Full load | ||
| Total Harmonic Distortion | THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC) | ||
| Efficiency Vin:115VAC | ≧91.56% | ≧92.06% | ≧92.56% |
| Efficiency Vin:230VAC | ≧94.63% | ≧95.13% | ≧95.63% |
| AC Current | 3.55A | ||
| Inrush Current | Cold start 75A(width=350us measured at 50% l peak)/230Vac | ||
| Leakage Current | < 1 mA | ||
| No Load/Standby Power Consumption | < 4.5W | ||
| Over Current Protection | 95~110% Constant current limit, load abnormal condition can be removed after automatic recovery | ||
| Short Circuit Protection | Burp mode, load abnormal conditions can be removed after automatic recovery | ||
| Over Voltage Protection | 26~32V | 39~47V | 52~63V |
| Over Temperature Protection | Turn off the output voltage, restart and resume | ||
| Working Temperature | T case=-40 ~ +50℃ | ||
| Max Case Temperature | T case=+90℃ | ||
| Working Humidity | 20 ~ 95% RH, non-condensing | ||
| Storage Temperature,Humidity | -40 ~ +90℃, 10 ~ 95% RH | ||
| Temperature Coefficient | ±0.03%/℃ (0 ~60℃) | ||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes | ||
| Safety Standard | UL8750 & UL1310 | ||
| Withstand Voltage | I/P-O/P.1.88KVac | ||
| Isolation Resistance | I/P-O/P.100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | Confirms to FCC | ||
Technical Specifications
| Dimming Style | Series | Power | Input voltage | Output voltage & Output current | Size | |||
|---|---|---|---|---|---|---|---|---|
| 5 in 1 dimming | MVP | 100W | 100~277V 50/60Hz |
4.16A*2 | 2.08A*2 | 1.38A*2 | 1.04A*2 | 199*103*40mm |
| 180W | 5A*3 | / | / | / | 216*113*40mm | |||
| 192W | / | 4A*2 | 2.67A*2 | 2A*2 | 216*113*40mm | |||
| 240W | 5A*4 | / | / | / | 248*123*40mm | |||
| 288W | / | 4A*3 | 2.67A*3 | 2A*3 | 248*123*40mm | |||
| 300W | 5A*5 | / | / | / | 248*123*40mm | |||
| 384W | / | 4A*4 | 2.67A*4 | 2A*4 | 248*123*40mm |
Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
