384W 5 In 1 Dimming IP65 Rated LED Driver for LED Strip Lights and Pendants
Price:
The price is negotiable
MOQ:
1pcs
Delivery Time:
20-25 days
Brand:
KSPOWER
Product Description

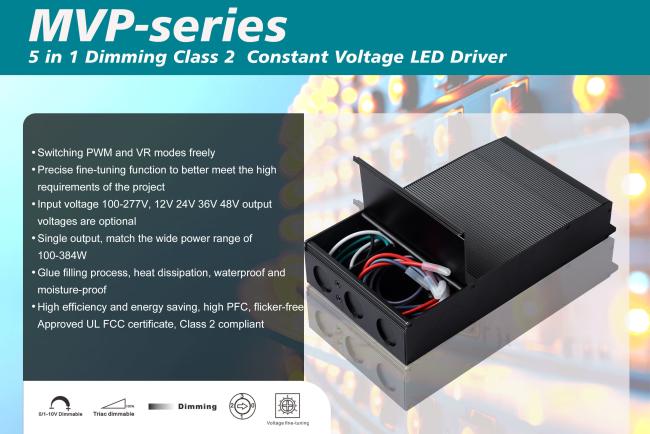

24V/36V/48V 4x96W(384W) 5 In 1 Dimming UL Class 2 LED Driver
The KSPOWER MVP series 5 IN 1 dimmable LED driver 4X96W(384W) is a black, universal AC input voltage power supply with a range from 100V-277VAC. This Constant Voltage LED Driver is certified to meet UL cUL Class 2, Class P, and CE safety approvals, with output voltage options of 24V, 36V, or 48V. Featuring a low-profile aluminum case with US Patent, this dimmable power supply provides reliable solutions for LED strips, signage, billboards, and landscape lighting applications.

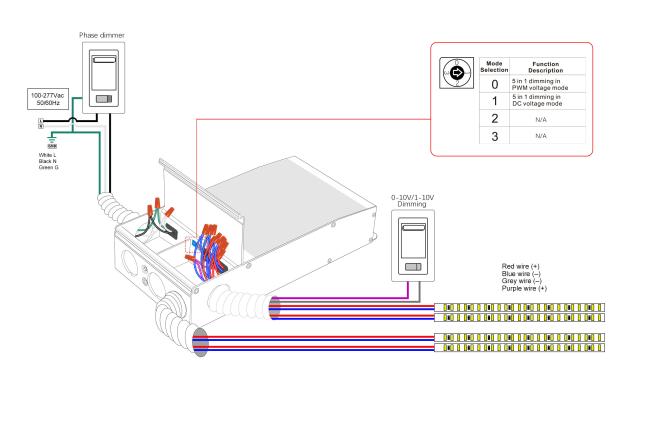

- PWM or Voltage Reduction output selectable
- 4-Ways Universal Dimming Functions optional:
- 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
- Triac dimming: TRIAC/phase, ELV, MLV dimming
- 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
- Non-dimming
- Super compact aluminum case design
- UL/cUL CE Class 2 CLASS P FCC RoHS LPS certified
- NEMA 3R rated for indoor or outdoor use
- Switch to dual-color temperature LED strips with 100%-0.01% dimming flicker-free
- Auto-Reset Protection for input/output overvoltage, overcurrent, overtemperature, over power, and short circuit protection
Technical Specifications
| Model | KS-24384a-M# | KS-36384a-M# | KS-48384a-M# |
|---|---|---|---|
| Output Voltage | 24V | 36V | 48V |
| Rated current × Channel | 4.0A×4 | 2.67A×4 | 2.0A×4 |
| Rated Power | 384W | 384W | 384W |
| Ripple & Noise (Max) | 250mVp-p | 250mVp-p | 250mVp-p |
| Voltage Accuracy | ±2.0% | ±2.0% | ±2.0% |
| Linear Adjustment Rate | ±0.5% | ±0.5% | ±0.5% |
| Load Adjustment Rate | ±0.5% | ±0.5% | ±0.5% |
| Start Rise Time | 1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC | ||
| Hold Time | 10ms/115VAC, 230VAC | ||
| Input Voltage Range | 100 ~ 277VAC | ||
| Frequency Range | 47 ~ 63Hz | ||
| Power Factor | PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, Full load | ||
| Total Harmonic Distortion | THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC) | ||
| Efficiency Vin:115VAC | ≧91.56% | ≧92.06% | ≧92.56% |
| Efficiency Vin:230VAC | ≧94.63% | ≧95.13% | ≧95.63% |
| AC Current | 4.75A | ||
| Inrush Current | Cold start 75A(width=350us measured at 50% l peak)/230Vac | ||
| Leakage Current | < 1 mA | ||
| No Load/Standby Power Consumption | < 4.5W | ||
| Over Current Protection | 95~110% Constant current limit, load abnormal condition can be removed after automatic recovery | ||
| Short Circuit Protection | Burp mode, load abnormal conditions can be removed after automatic recovery | ||
| Over Voltage Protection | 26~32V | 39~47V | 52~63V |
| Over Temperature Protection | Turn off the output voltage, restart and resume | ||
| Working Temperature | T case=-40 ~ +50℃ | ||
| Max Case Temperature | T case=+90℃ | ||
| Working Humidity | 20 ~ 95% RH, non-condensing | ||
| Storage Temperature, Humidity | -40 ~ +90℃, 10 ~ 95% RH | ||
| Temperature Coefficient | ±0.03%/℃ (0 ~60℃) | ||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes | ||
| Safety Standard | UL8750 & UL1310 | ||
| Withstand Voltage | I/P-O/P.1.88KVac | ||
| Isolation Resistance | I/P-O/P.100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | Confirms to FCC | ||
Product Series Comparison
| Dimming Style | Series | Power | Input voltage | Output voltage & Output current | Size |
|---|---|---|---|---|---|
| 5 in 1 dimming | MVP | 100W | 100~277V 50/60Hz | 4.16A×2 (12V) / 2.08A×2 (24V) / 1.38A×2 (36V) / 1.04A×2 (48V) | 199×103×40mm |
| 180W | 5A×3 (12V) | 216×113×40mm | |||
| 192W | 4A×2 (24V) / 2.67A×2 (36V) / 2A×2 (48V) | 216×113×40mm | |||
| 240W | 5A×4 (12V) | 248×123×40mm | |||
| 288W | 4A×3 (24V) / 2.67A×3 (36V) / 2A×3 (48V) | 248×123×40mm | |||
| 300W | 5A×5 (12V) | 248×123×40mm | |||
| 384W | 4A×4 (24V) / 2.67A×4 (36V) / 2A×4 (48V) | 248×123×40mm |
Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
FQA
.UL/cUL listed,5-year warranty
.IP65 waterproof,indoor & outdoor
100% burn-in tested
.OEM/ODM:custom voltage,cable,label
Why choose us ?
.Switching PWM Voltage and DC voltage modes freely
. 5 in 1 dimmable functions,multiple dimming combinations are available
.Input voltage 100-277V,12V 24V 36V 48V output voltages are optional
.Single output,match the wide power range of 40-400W
.Glue filling process,heat dissipation,waterproof and moisture-proof
.High efficiency and energy saving ,High PFC,flicker-free
.Patent Design and structure
.Approved UL FCC certificate
