800x480 WVGA 134PPI a-Si Parallel RGB Medical TFT Display Module 7 inch ZAT070TN92
Price:
$100/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Innolux
Product Description
Products Description
|
Panel Model
|
AT070TN92
|
Panel Brand
|
Innolux
|
|
Size (inch )
|
7inch
|
Panel Type
|
a-Si TFT-LCD, LCM
|
|
Resolution
|
800(RGB)×480, WVGA 134PPI
|
Pixel Format
|
RGB Vertical Stripe
|
|
Module Outsize(mm)
|
164.9 × 100 × 6 (H×V×D)
|
Display Mode
|
TN, Normally White, Transmissive
|
|
LCD Active area(mm)
|
154.08(W)×85.92(H) mm
|
Response Time
|
10/15 (Typ.)(Tr/Td) ms
|
|
Display Colors
|
262K/16.7M 50% NTSC
|
Light Source
|
3S9P WLED , 20K hours , No Driver
|
|
Viewing Angle
|
70/70/50/70 (Typ.)(CR≥10)
|
Touch Screen
|
Without
|
|
Brightness
|
250 cd/m² (Typ.)
|
Power Supply
|
3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
|
|
Contrast Ratio
|
800:1 (Typ.) (TM)
|
Used for
|
Industrial, VOIP Phone, Digital Photo Frame, Video door Phone, PMP, Portable DVD Player
|
|
Frame Ratio
|
60Hz
|
Enviroment
|
Storage Temp.: -30 ~ 80 °C
|
|
|
|
|
Operating Temp.: -20 ~ 70°C
|
|
LCM Interface Type
|
Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
|
FPC connector
|
Pitch 0.5mm
|

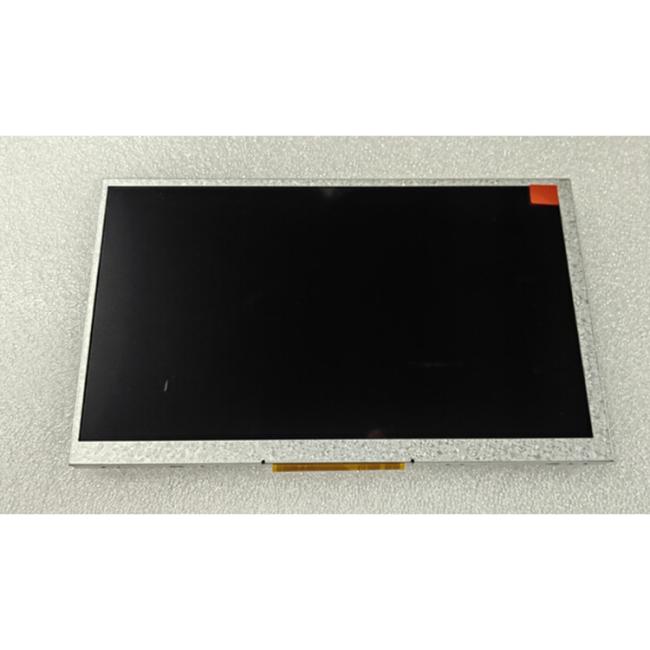

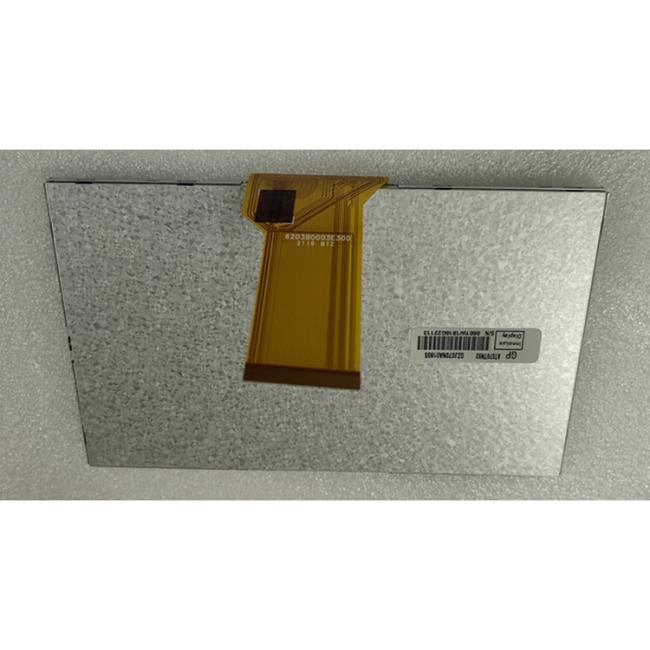

Details Images
