Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module
Price:
$115/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Sharp
Product Description
Products Description
Panel Model | LQ084S3LG03 | Panel Brand | Sharp |
Size (inch ) | 8.4inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 800(RGB)×600, SVGA 119PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 199.5(W)×154(H) ×12.45(D) mm | Display Mode | TN, Normally White, Transmissive |
LCD Active area(mm) | 170.88(W)×128.16(H) mm | Response Time | 35 (Typ.)(Tr+Td) |
Display Colors | 262K/16.7M | Light Source | WLED , 50K hours , With LED Driver |
Viewing Angle | 65/65/60/55 (Typ.)(CR≥10) | Touch Screen | Without |
Brightness | 330 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
Contrast Ratio | 450:1 (Typ.) (TM) | Used for | Industrial |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -30 ~ 75 °C |
Operating Temp.: -30 ~ 75°C | |||
Vibration Level | 2.0G (19.6 m/s²) | ||
LCM Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector | FPC connector | HRS, DF19G-20P-1H, Pitch 1.0mm |

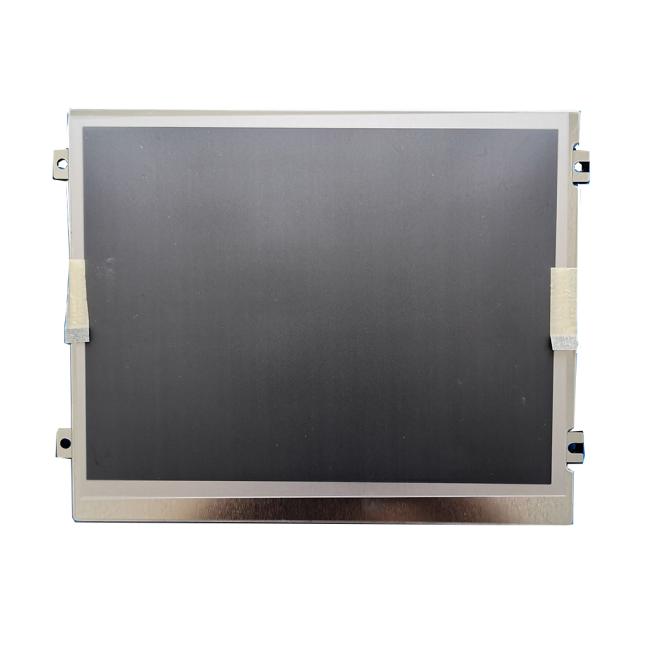

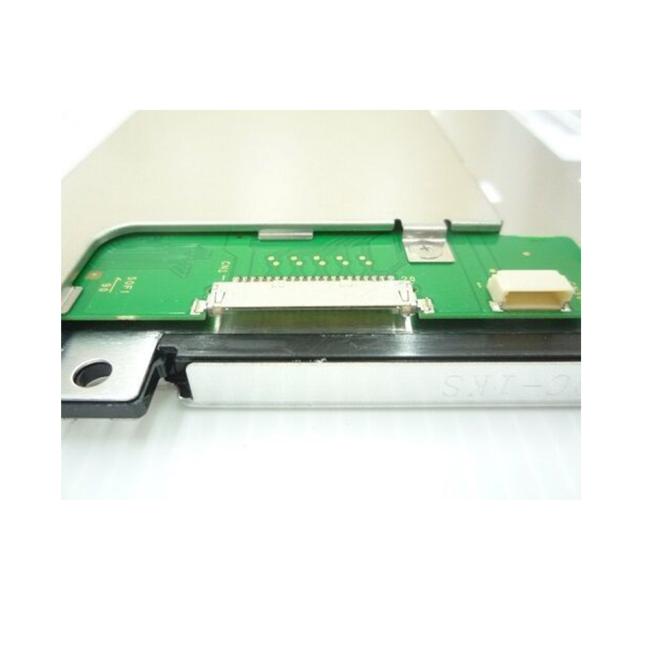

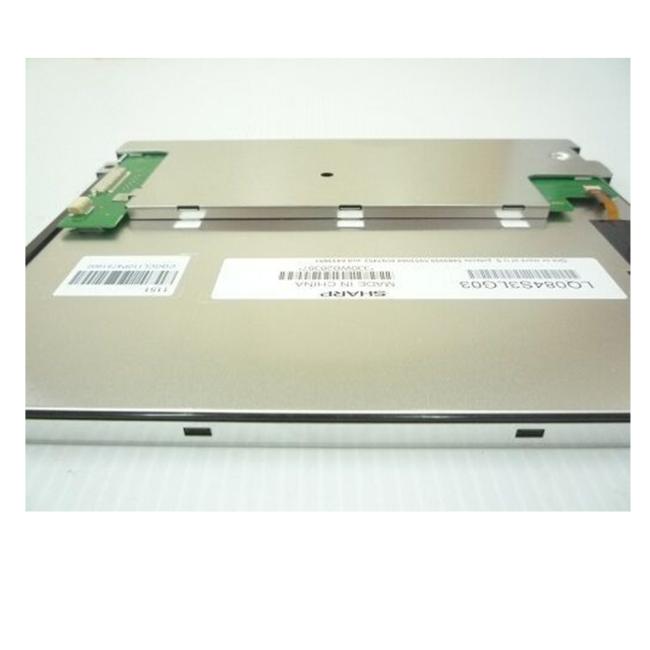

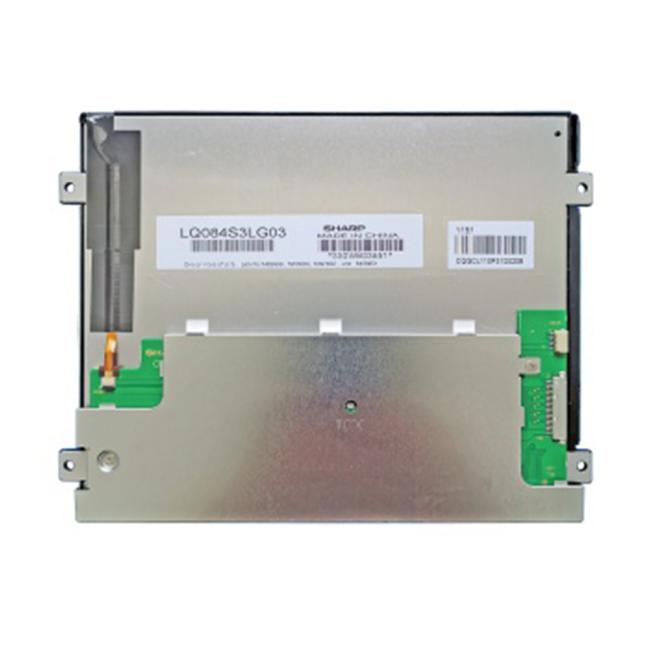

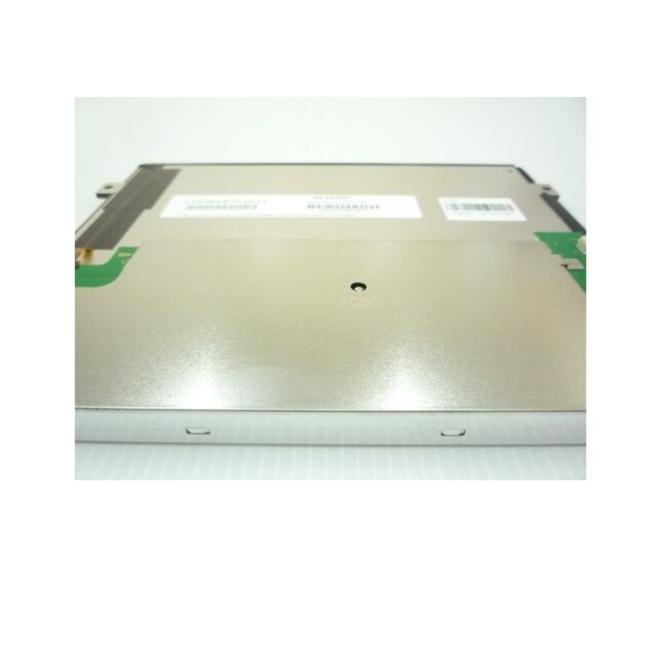

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
