Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Price:
$35/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Tianma
Product Description
Products Description
Panel Model | TM050RDZG03-30 | Panel Brand | Tianma |
Size (inch ) | 5.0inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 800(RGB)×480, WVGA 188PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 120.7 × 77.8 × 5.9 (H×V×D) | Display Mode | TN, Normally White, Transmissive |
LCD Active area(mm) | 108(W)×64.8(H) mm | Response Time | 20/30 (Typ./Max.)(Tr+Td) ms |
Display Colors | 16.7M 50% NTSC | Light Source | 3S6P WLED , 50K hours |
Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Touch Screen | Without |
Brightness | 1000 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
Contrast Ratio | 600:1 (Typ.) (TM) | Used for | Industrial |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -40 ~ 90 °C |
Operating Temp.: -30 ~ 85 °C | |||
LCM Interface Type | Parallel RGB (1 ch, 8-bit) , 40 pins FPC | FPC connector | Pitch 0.5mm |

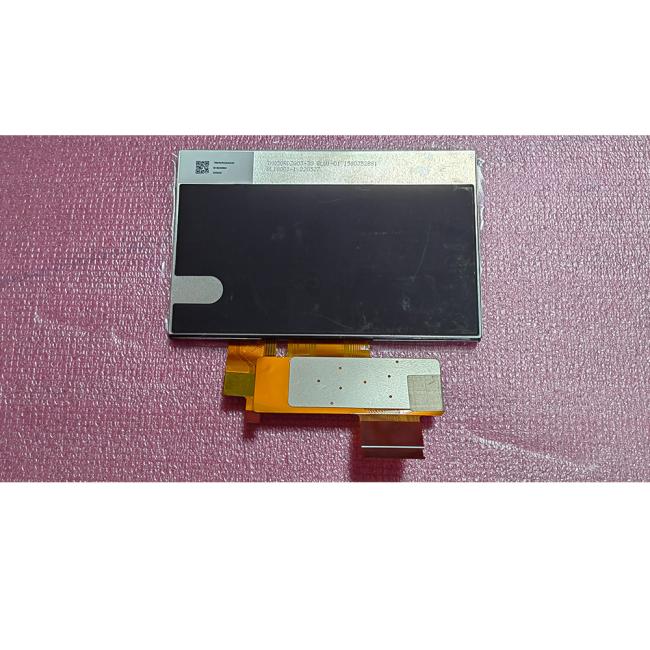

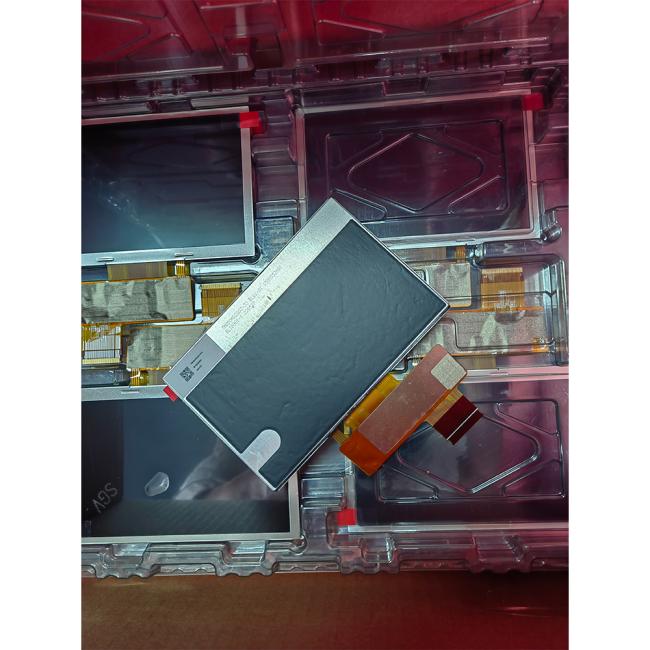

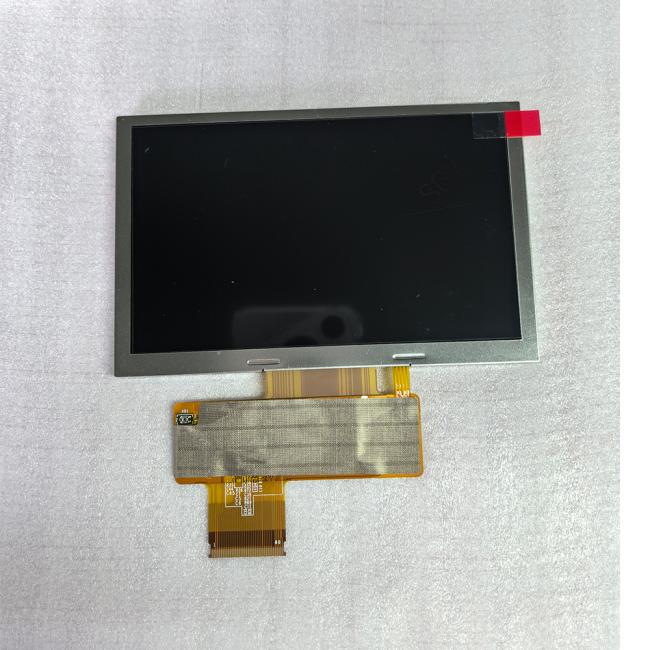

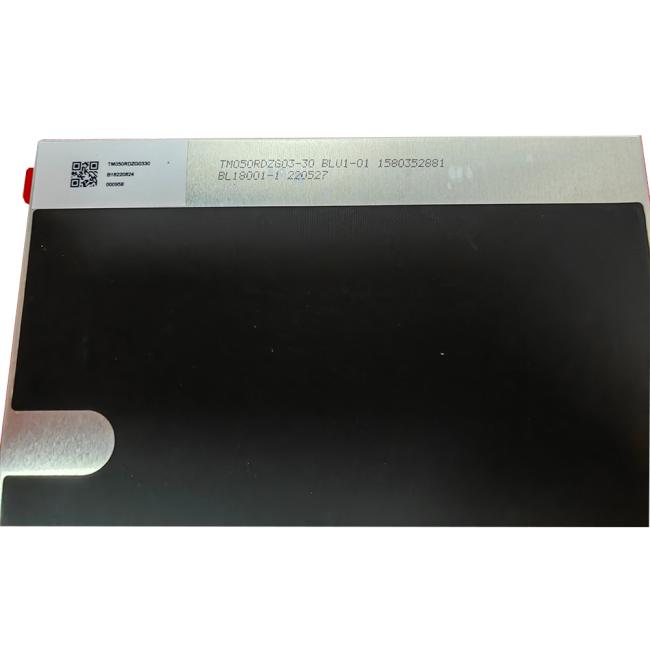

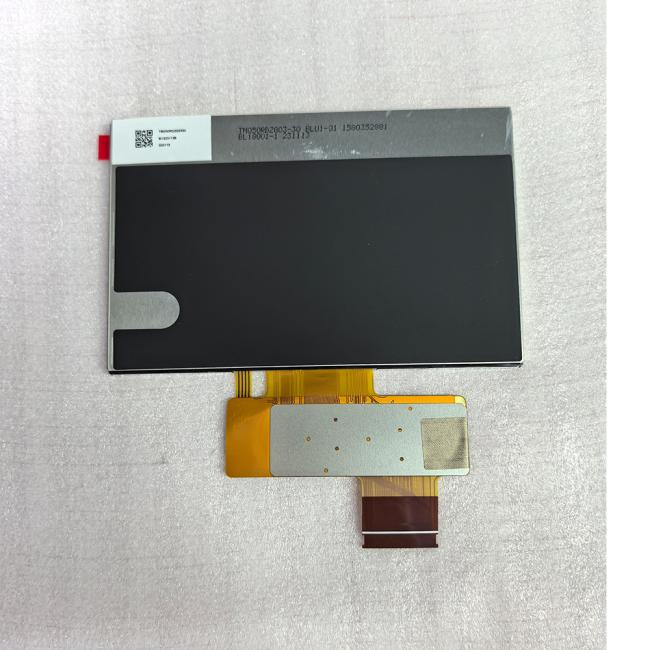

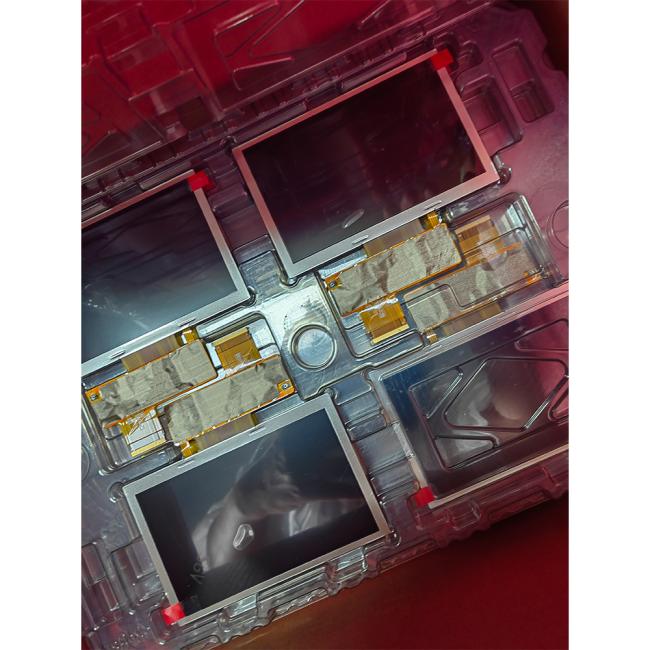

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
