Original Sharp LQ050T1SX05 5.0-Inch FHD 1080x1920 Mobile Phone Display Panel Handheld Terminal LED MIPI Interface sRGB TFT LCD Module IPS
Price:
$20/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Sharp
Product Description
Products Description
Panel Model | LQ050T1SX05 | Panel Brand | Sharp |
Size (inch ) | 5inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1080(RGB)×1920, FHD 445PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 64.041(W)×116.224(H) ×1.16(D) mm | Display Mode | New Mode2, Normally Black, Transmissive |
LCD Active area(mm) | 61.641(W)×109.584(H) mm | Response Time | 45 (Max.)(Tr+Td) |
Display Colors | 16.7M 95% NTSC | Light Source | 7S2P WLED , Without Driver |
Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Touch Screen | Without |
Brightness | 450 cd/m² (Typ.) | Power Supply | 1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN) |
Contrast Ratio | 1000:1 (Typ.) (TM) | Used for | Mobile Phone, Handheld Terminal |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -30 ~ 70 °C |
Operating Temp.: -20 ~ 60 °C | |||
LCM Interface Type | MIPI (4 data lanes) , 34 pins Connector | FPC connector | HRS, BM20B(0.8)-34DP-0.4V(51),Pitch 0.4mm |

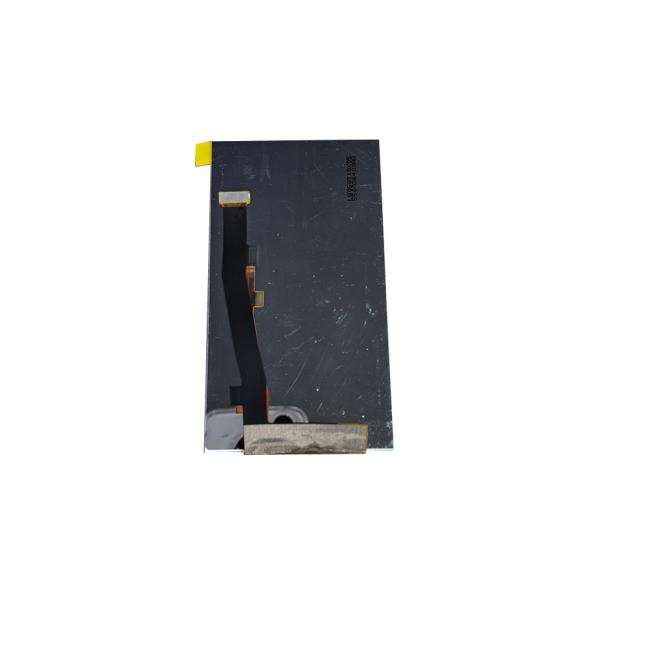

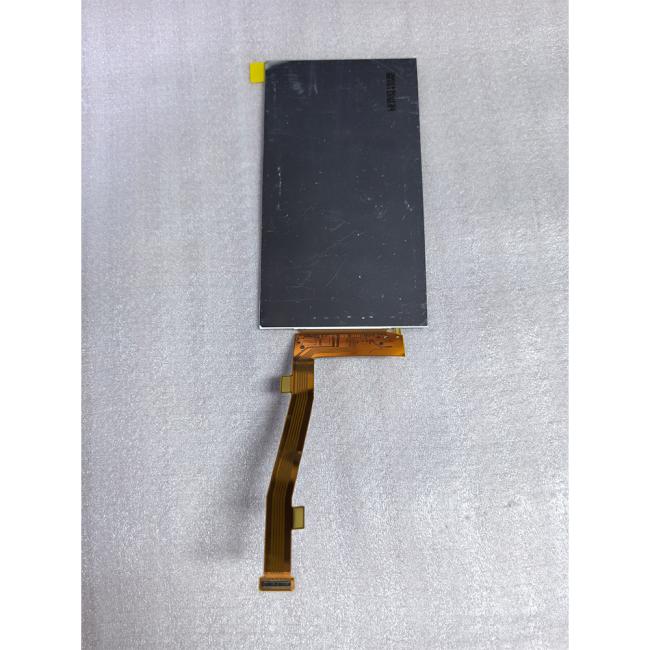

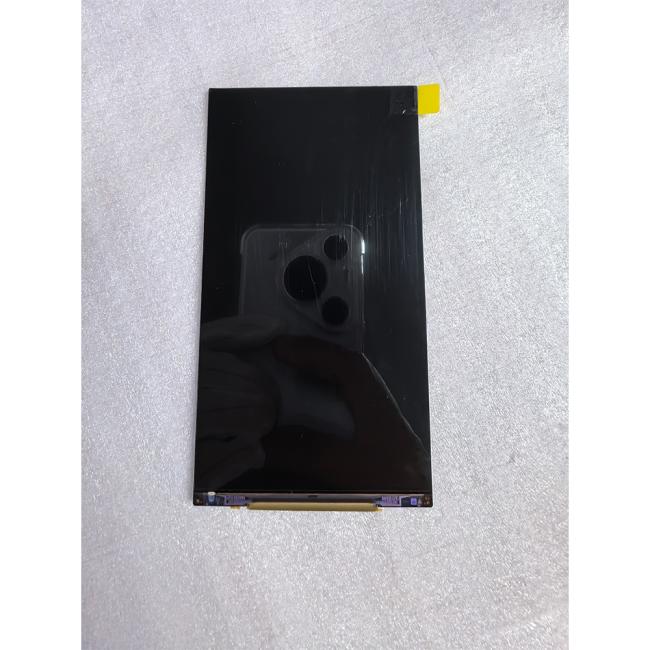

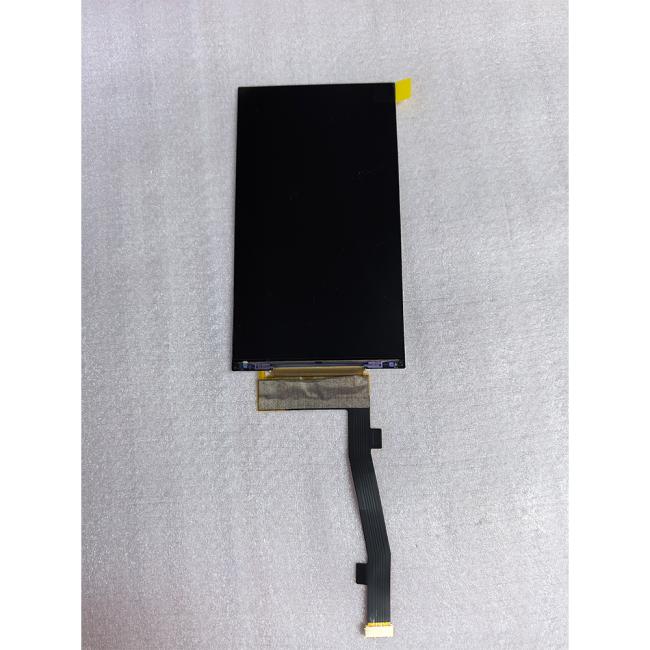

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
