800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
Price:
$82/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
AUO
Product Description
Products Description
Panel Model | G065VN01 V221 | Panel Brand | AUO |
Size (inch ) | 6.5inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 640(RGB)×480, VGA 122PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 153(W)×118(H) ×11.2(D) mm | Display Mode | AHVA, Normally Black, Transmissive |
LCD Active area(mm) | 132.48(W)×99.36(H) mm | Response Time | 10/15 (Typ.)(Tr/Td) ms |
Display Colors | 262K/16.2M 55% NTSC | Light Source | WLED , 70K hours , With LED Driver |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Touch Screen | Without |
Brightness | 800 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) | Used for | Industrial, Outdoor High Brightness |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -30 ~ 80 °C |
Operating Temp.: -30 ~ 80°C | |||
LCM Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector | FPC connector | STM, MSB24013P20, Pitch 1.0mm |

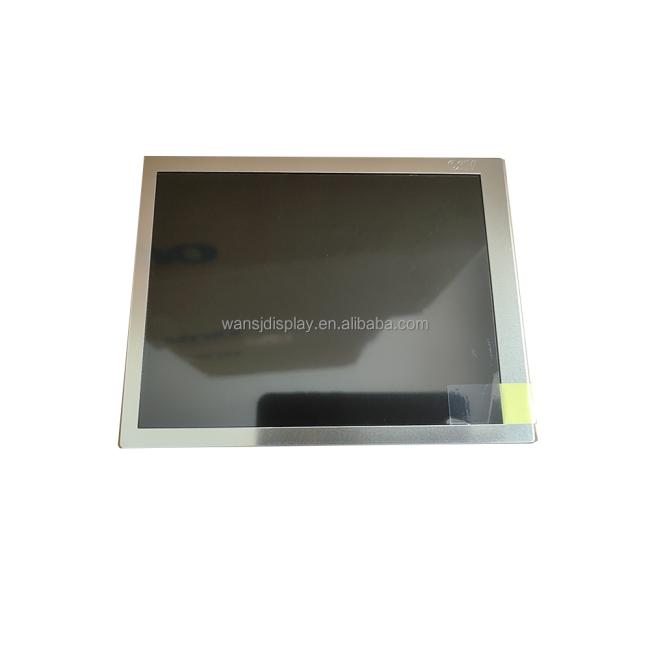

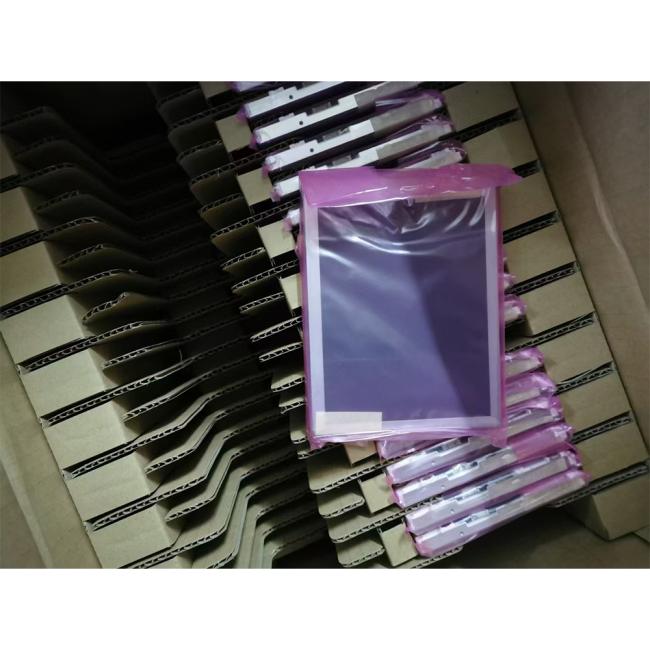

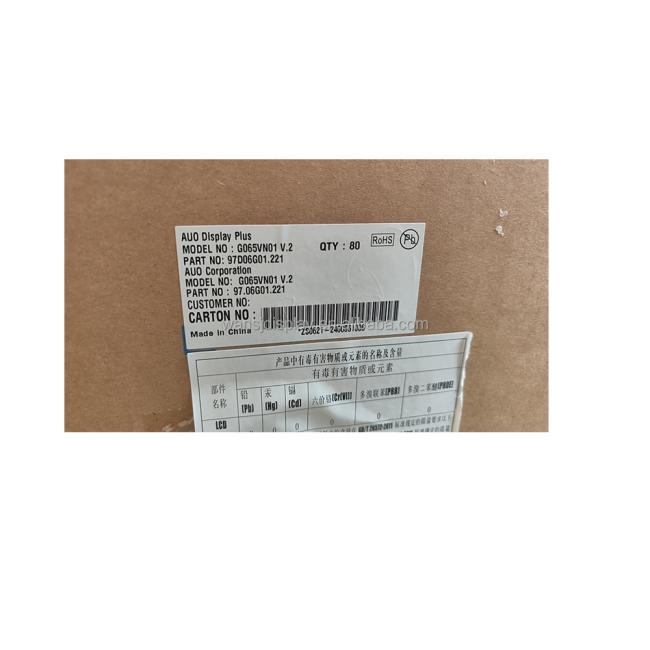

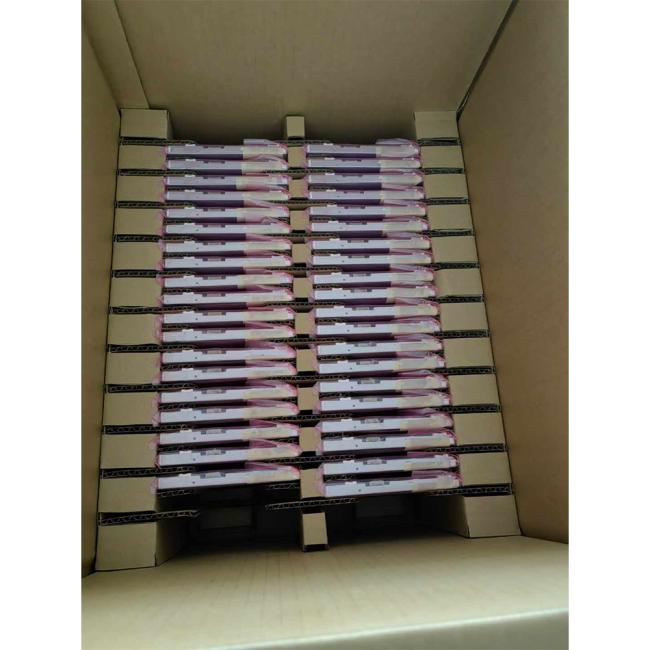

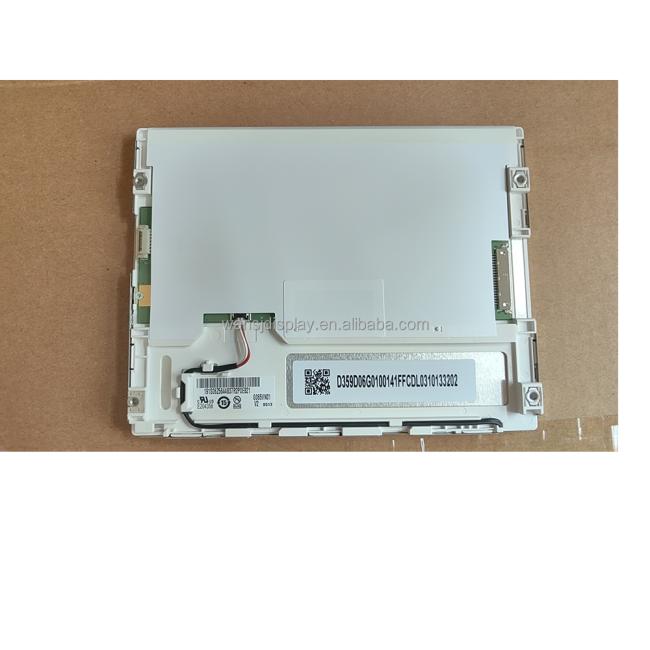

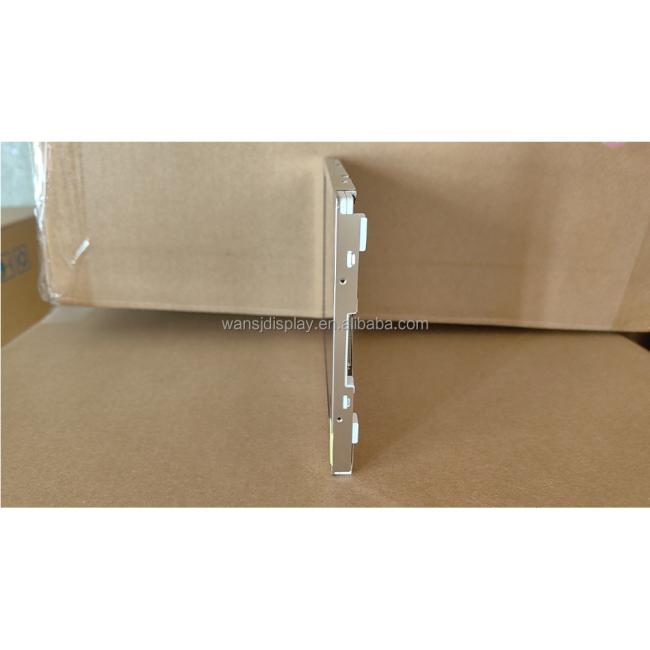

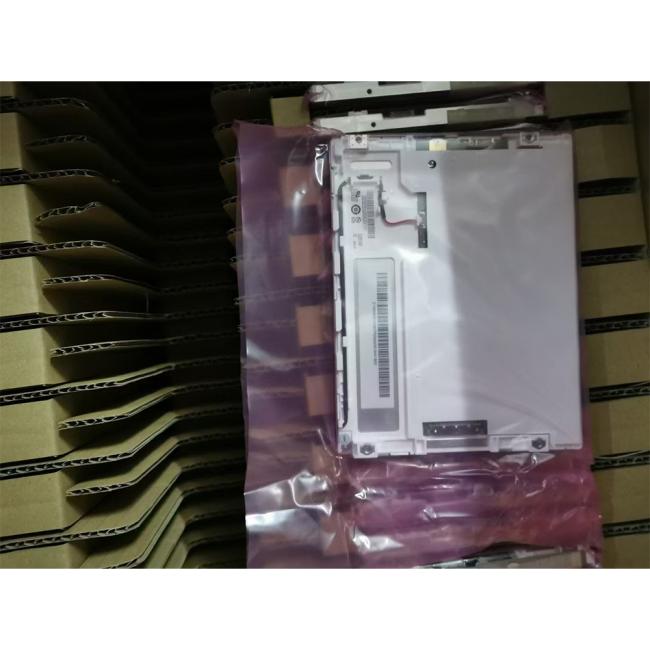

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
