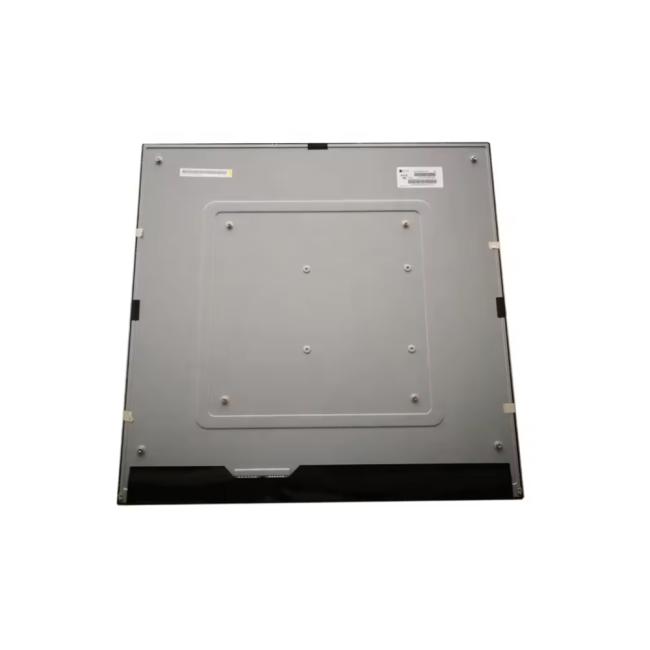

BOE DV332X2M-NV0 33-Inch IPS TFT LCD Panel LVDS Industrial Square Display Video Wall Digital Signage Module for Benefit
Price:
$370/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
BOE
Product Description
Products Description
Panel Model | DV332X2M-NV0 | Panel Brand | BOE |
Size (inch ) | 33inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1920 81PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 612.96(W)×612.96(H) mm | Display Mode | ADS, Normally Black, Transmissive |
LCD Active area(mm) | 596.16(W)×596.16(H) mm | Response Time | 8 (Typ.)(G to G) |
Display Colors | 16.7M 72% NTSC | Light Source | WLED , 30K hours , Without Driver |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Touch Screen | Without |
Brightness | 420 cd/m² (Typ.) | Power Supply | 5.0V (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) | Used for | Industrial, Video Wall, Digital Signage, Square Display |
Videowall Seam | 16.8 mm (active to active seam) | Enviroment | Storage Temp.: -20~ 60 °C |
Operating Temp.: -0 ~ 50 °C | |||
LCM Interface Type | LVDS (4 ch, 8-bit) , 92 pins Connector | FPC connector | UJU, IS050-C51B-C39, Pitch 0.5mm UJU, IS050-C41B-C39, Pitch 0.5mm |
