20.1Inch 1600x1200 UXGA TFT LCD Panel Screen Wide Temperature Industrial Display Module for Special Industrial Applications
Price:
$1,300/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
BSDT
Product Description
Products Description
Panel Model | TDA201-001V02 | Panel Brand | BSDT |
Size (inch ) | 20.1inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1600(RGB)×1200, UXGA 99PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 432(W)×331.5(H)×19.7(D) | Display Mode | ADS, Normally Black, Transmissive |
LCD Active area(mm) | 324.864(W)×433.152(H) mm | Response Time | 25 (Typ.)(Tr+Td) ms |
Display Colors | 16.7M | Light Source | WLED , 30K hours , No Driver |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Touch Screen | Without |
Brightness | 450 (Typ.)(cd/m²) | Power Supply | 12.0V (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) | Used for | Industrial |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -55~ 85 °C |
Operating Temp.: -30 ~ 70°C | |||
LCM Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector | FPC connector | JAE, FI-XB30SRL-HF11, Pitch 1.0mm |

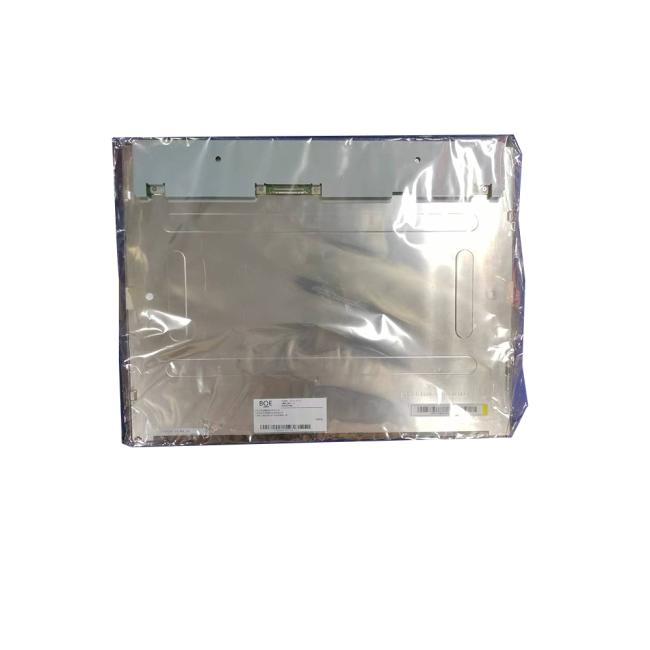

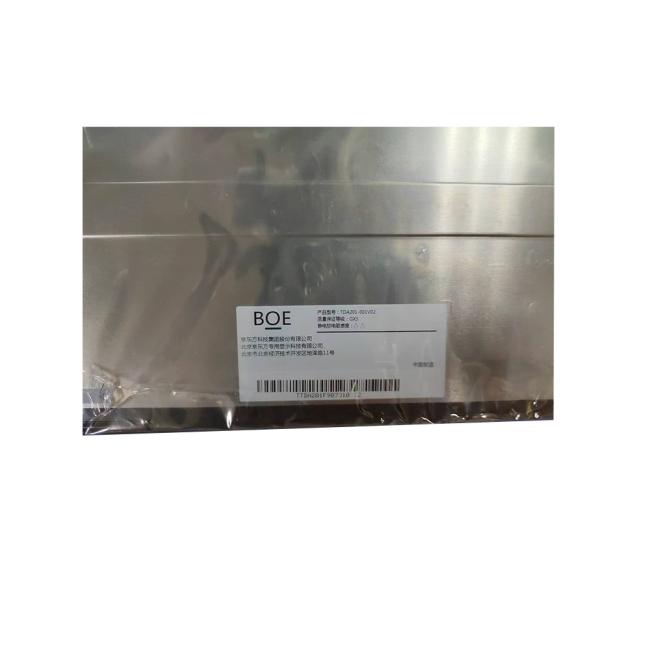

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
