Innolux 37-Inch TFT LCD Panel 1920x540 Resolution High Brightness 1000nits for Industrial Digital Signage Display Module
Price:
$270/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Innolux
Product Description
Products Description
Panel Model | S370AJ1-LE1 | Panel Brand | Innolux |
Size (inch ) | 37inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×540 53PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 923.3(W)×277.1(H)×28.4(D) mm | Display Mode | Super MVA, Normally Black, Transmissive |
LCD Active area(mm) | 904.32(W)×254.34(H) mm | Response Time | 11 (Typ.)(G to G) |
Display Colors | 16.7M 72% NTSC | Light Source | WLED , 50K hours , With LED Driver |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Touch Screen | Without |
Brightness | 1000 cd/m² (Typ.) | Power Supply | 12V (Typ.) |
Contrast Ratio | 5000:1 (Typ.) (TM) | Used for | Industrial, Outdoor High brightness, Digital Signage, Advertising, Stretched Bar LCD |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -20~ 60 °C |
Operating Temp.: -20 ~ 60 °C | |||
LCM Interface Type | LVDS (1 ch, 6-bit) , Connector 20 pins | FPC connector | P-two, 187059-51221, Pitch 0.5mm |

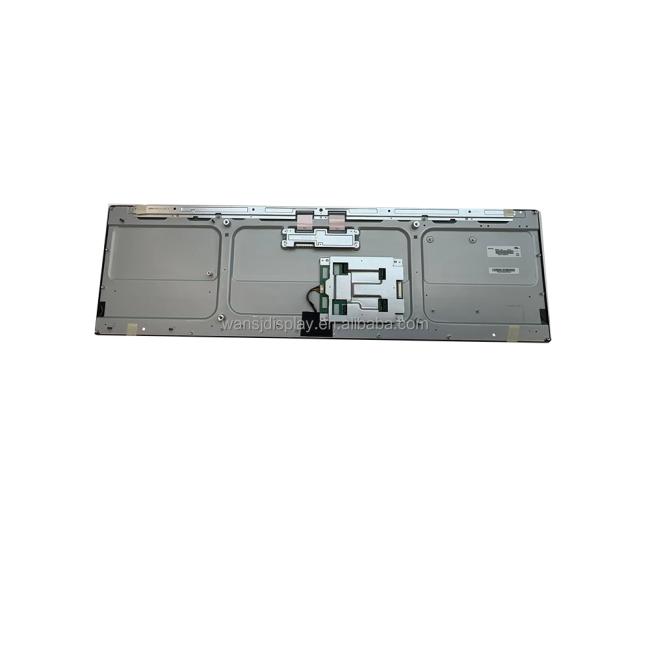

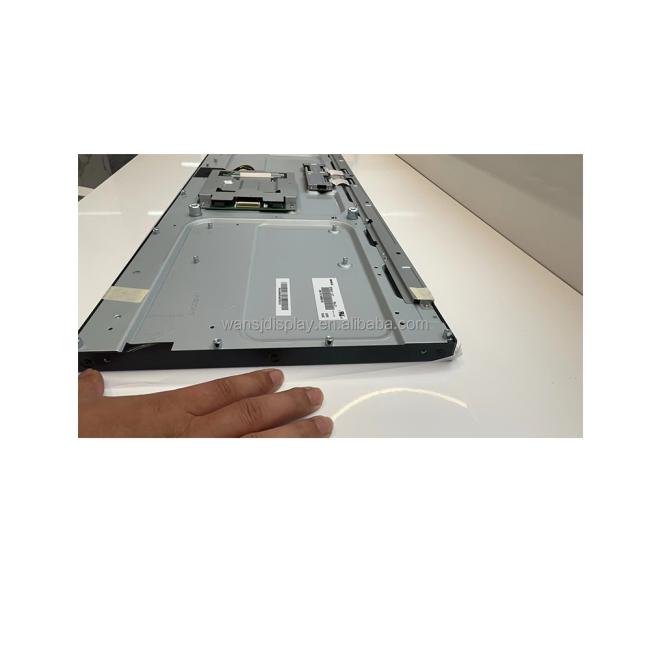

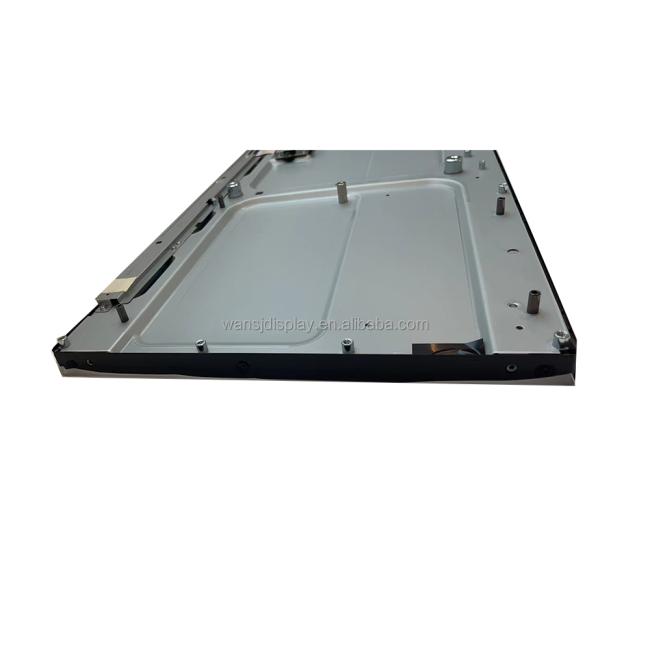

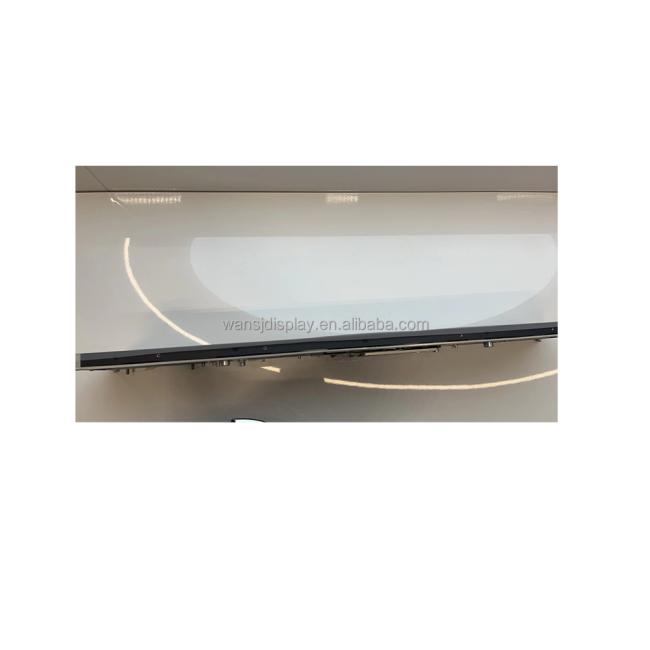

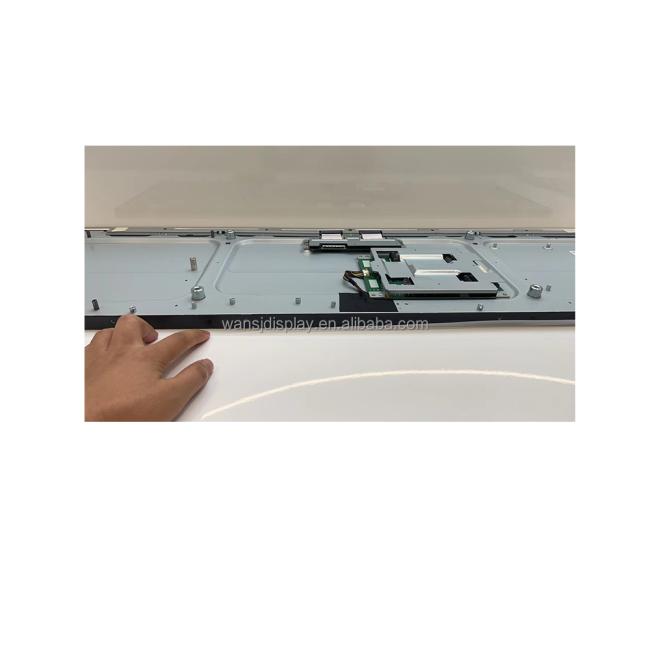

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
