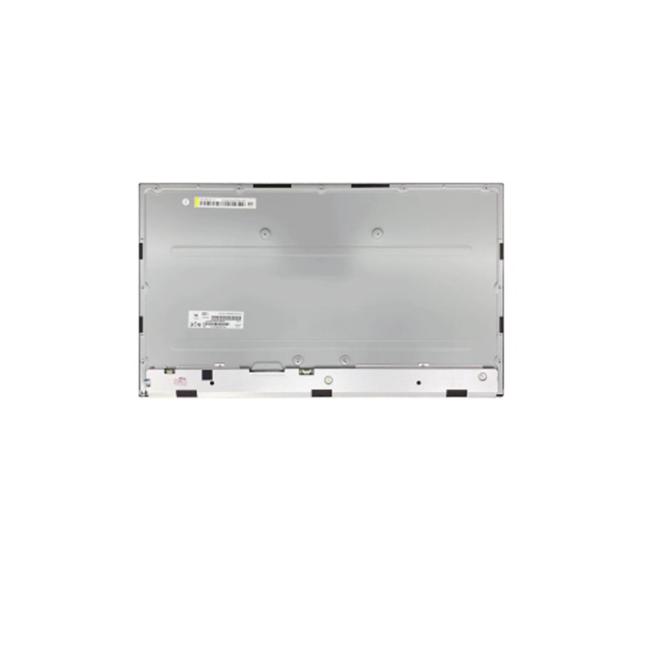

23.8" In-Cell Touch FHD sRGB 3-side Borderless LVDS Desktop Monitor HMI Display Module with 250 cd/m2 Brightness from BOE
Price:
$110/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
BOE
Product Description
Products Description
Brand | BOE | Model P/N | MV238FHM-K10 |
Diagonal size | 23.8" | Panel Type | a-Si TFT-LCD,LCM |
Resolution | 1920(RGB)×1080, FHD 92PPI | Pixel Format | RGB Vertical Stripe |
Active Area | 527.04(W)×296.46(H) mm | Bezel Opening | / |
Outline(mm) | 535.12(W)×313(H) ×12.76(D) mm | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Luminance | 250 cd/m2 (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Response | 14 (Typ.)(G to G) |
Good View at | Symmetry | Work Mode | ADS, Normally Black, Transmissive |
Color Depth | 16.7M 72% NTSC | Backlight | 4 strings WLED , Without Driver |
Mass | 2.23Kgs (Typ.) | Touchscreen | In-Cell Touch, USB |
Refresh Rate | 60HZ | Voltage Supply | 5.0V (Typ) |
Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector | Max, Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -0 ~ 50 °C |
Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
