Original AUO G101EVN01.3 10.1inch 1280*800 WXGA MVA TFT-LCD LCM 60Hz LVDS 40 pins Display Module for Industrial Equipment
Price:
$88/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
AUO
Product Description
Products Description
Brand | AUO | Model P/N | G101EVN01.3 |
Diagonal size | 10.1" | Panel Type | a-Si TFT-LCD,LCM |
Resolution | 1280(RGB)x800，WXGA 149PPI | Pixel Format | RGB Vertical Stripe |
Active Area | 216.96(W)x135.6(H) mm | Bezel Opening | 220.36(W)x139.1(H) mm |
Outline(mm) | 227.91 x 148 x 8.34(HxVxD | Treatment | Hard coating, Reflection 1.5% (Typ.) |
Luminance | 500 cd/m2 (Typ.) | Contrast Ratio | 1300 : 1 (Typ.) (T) |
Wiewing Angle | 85/85/85/85(TYP)(CR210) | Response | 25 (Typ.)(Tr+Td) ms |
Good View at | Symmetry | Work Mode | MVA, Normally Black, Transmissive |
Color Depth | 262K/16.2M 45% NT5C | Backlight | WLED , 50k hours , With LED Driver |
Mass | 350g (Max) | Touchscreen | Without |
Refresh Rate | 60Hz | Voltage Supply | 3.3V (Typ.) |
Signal Type | LVDS (1 ch, 6/8-bit) , 40 pins Connector | Max, Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

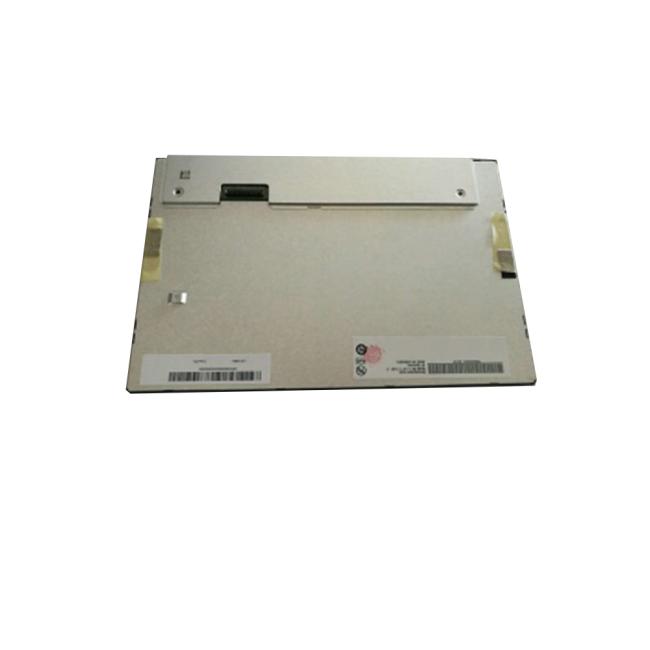

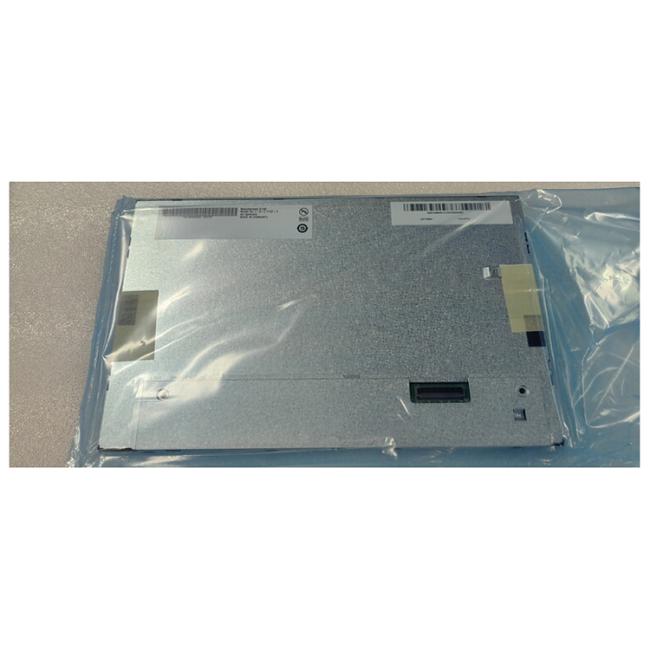

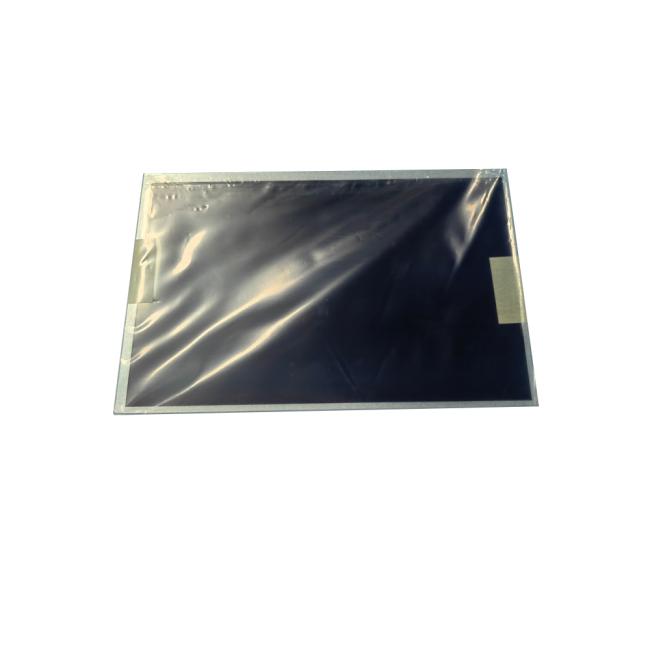

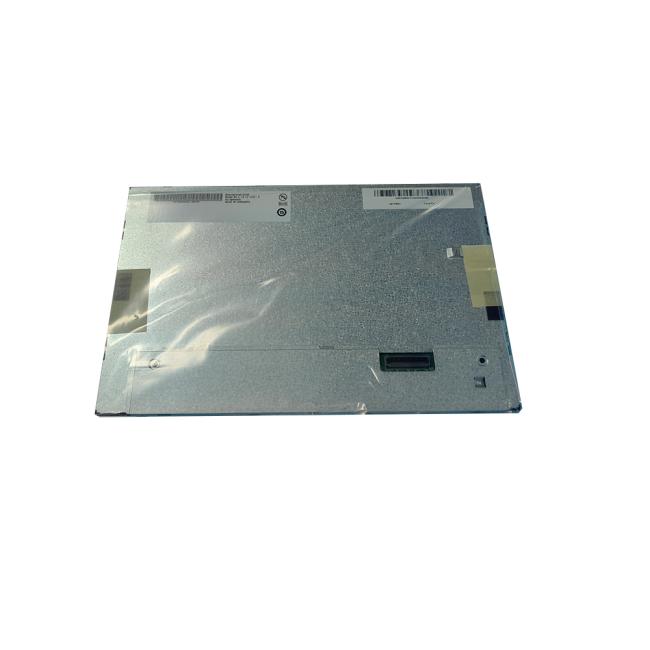

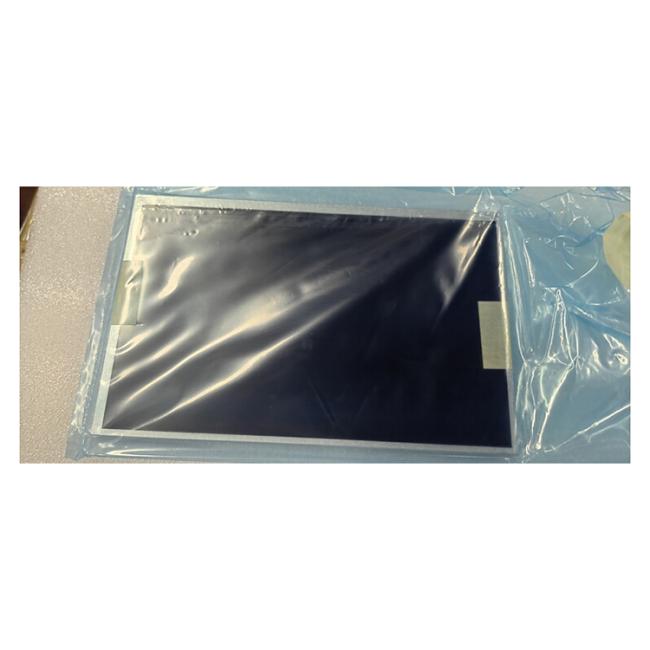

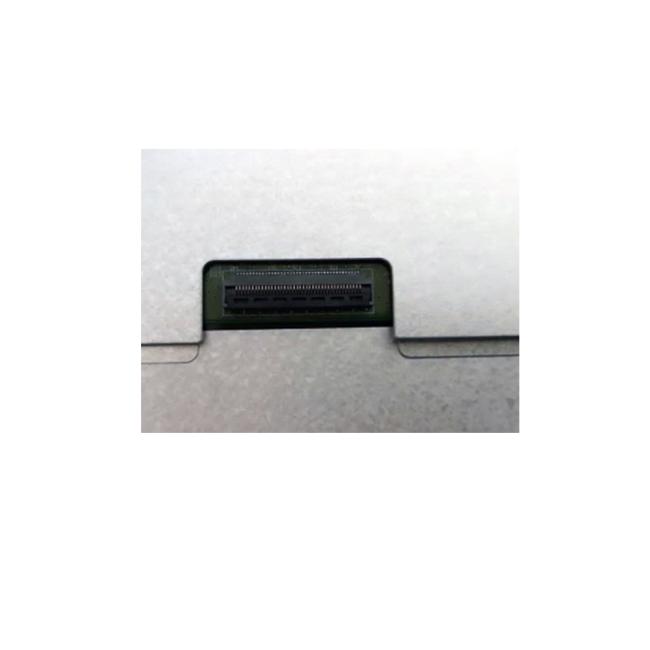

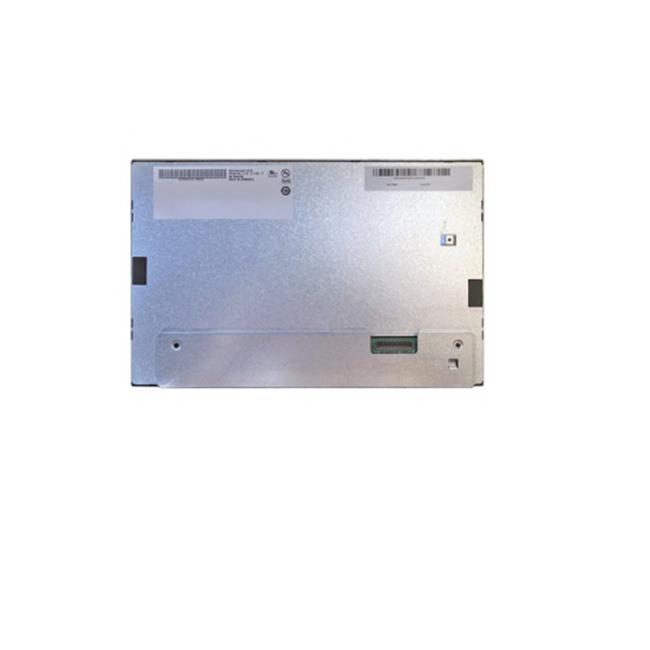

Details Images
