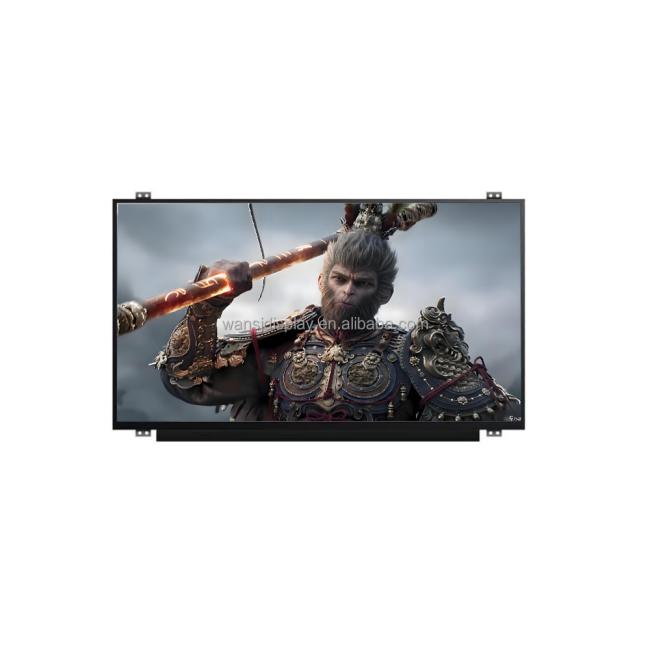

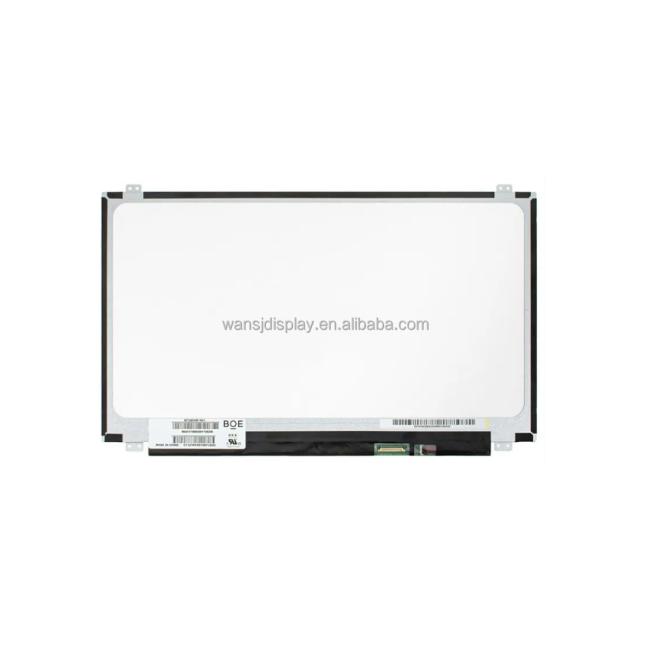

15.6" BOE NT156FHM-N41 FHD TN TFT-LCD LCM 220nits eDP Interface Notebook Desktop Monitor Display Screen Module 1920x1080
Price:
$43/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
BOE
Product Description
Products Description
Brand | BOE | Model P/N | NT156FHM-N41 |
Diagona Size | 15.6inch | Panel Type | a-Si TFT-LCD,LCM |
Resolution | 1920(RGB)×1080, FHD 141PPI | Pixel Format | RGB Vertical Stripe |
Active Area | 344.16(W)×193.59(H) mm | Bezel Opening | / |
Outline Dim. | 359.5(W)×223.8(H) ×3.2(D) mm | Treatment | Antiglare, Hard coating (3H) |
Luminance | 220 cd/mz (Typ.) | Contrast Ratio | 500:1 (Typ.)(TM) |
Wiew Direction | 6 o'clock | Response Time | 12 (Typ.)(Tr+Td) |
Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K 45% NTSC | Light Source | WLED [9S4P] , 15K hours , With LED Driver |
Power Supply | 3.3V (Typ.) | Touch Panel | Without |
Frame Rate | 60Hz | Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Interface Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector | Power Supply | UJU, IS050-L30B-C10, Pitch 0.5mm |
Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
