27" FHD TFT-LCD LCM 1920x1080 Resolution 300nits LVDS Interface Desktop Monitor for ATM Machine HMI Display Module by AUO
Price:
$107/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
AUO
Product Description
Products Description
Brand | AUO | Model P/N | M270HVN02.0 |
Diagonal size | 27" | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 81PPI | Pixel Format | RGB Vertical Stripe |
Active Area | 597.6(W)×336.15(H) mm | Treatment | Antiglare, Hard coating (3H) |
Outline Dim. | 613.6 × 356.85 × 10.5 (H×V×D) | Response Time | 7/5 (Typ.)(Tr/Td) ms |
Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 3000 : 1 (Typ.) (TM) |
Wiew Direction | Symmetry | Operating Mode | AMVA, Normally Black, Transmissive |
Wiewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Light Source | 15S4P WLED , 40K hours , No Driver |
Support Color | 16.7M 72% NTSC | Touch Pane | Without |
Weight | 2.18Kgs (Typ.) | Connector | STM, MSCKT2407P30HB, Pitch 1.0mm |
Frame Rate | 75HZ | Power Supply | 5.0V (Typ.) |
Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector | Environment | Operating Temperature: -0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

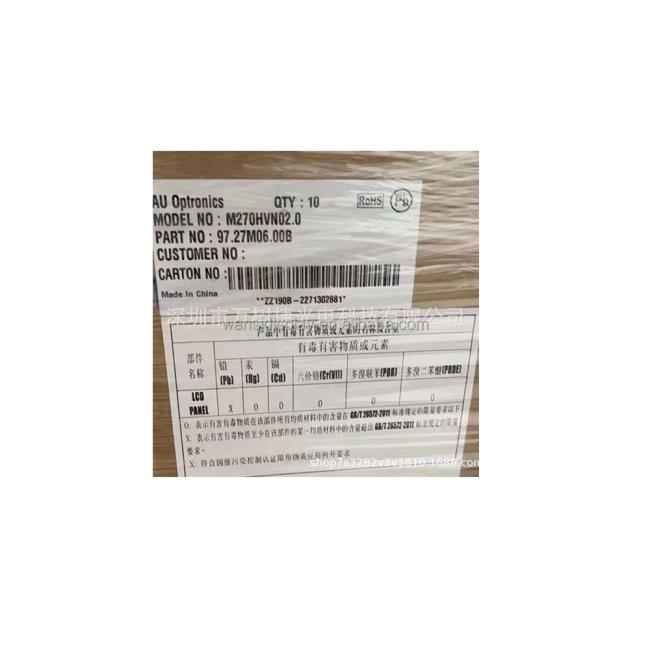

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
